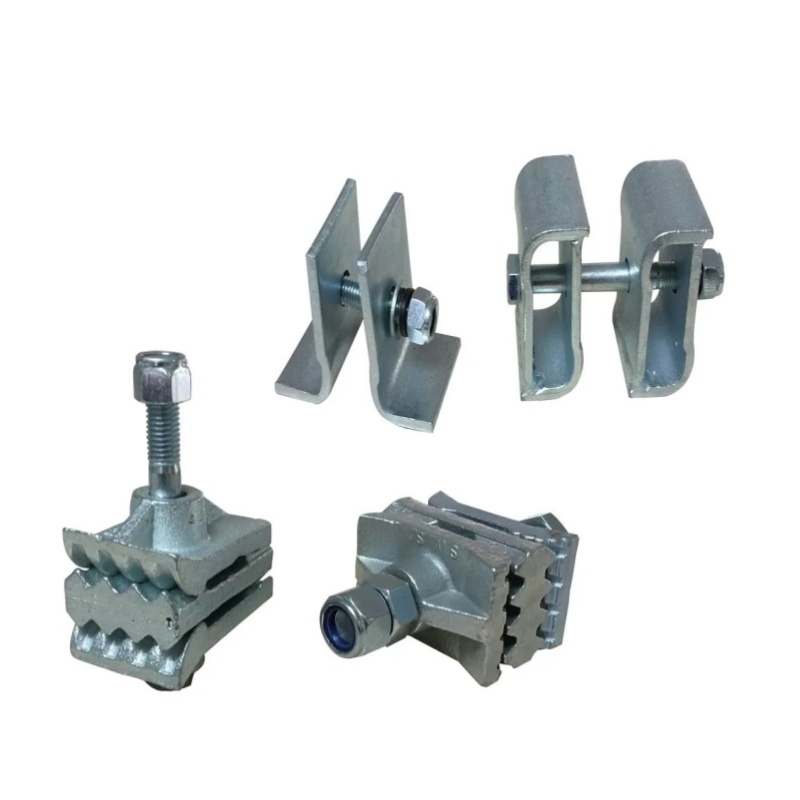

The selection of the appropriate lifting belt joint method for the belt connector directly affects the reliability, safety and service life of the equipment. The belt joints should be connected by the belt connector. At the same time, the appropriate belt connector and quantity should be selected according to the different tensile strength and width specifications of the lifting belt.

S1 and S2 Performance and Features

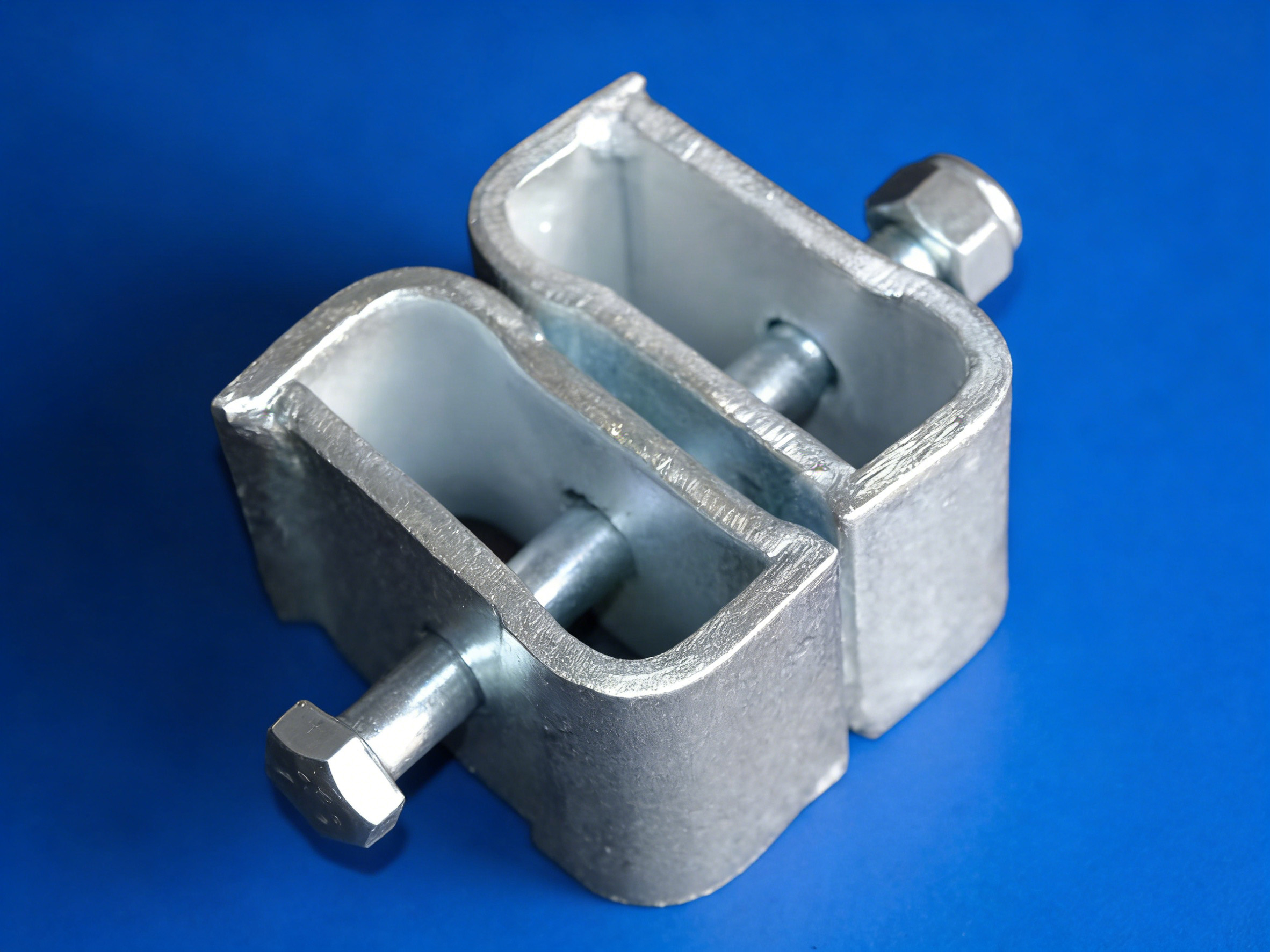

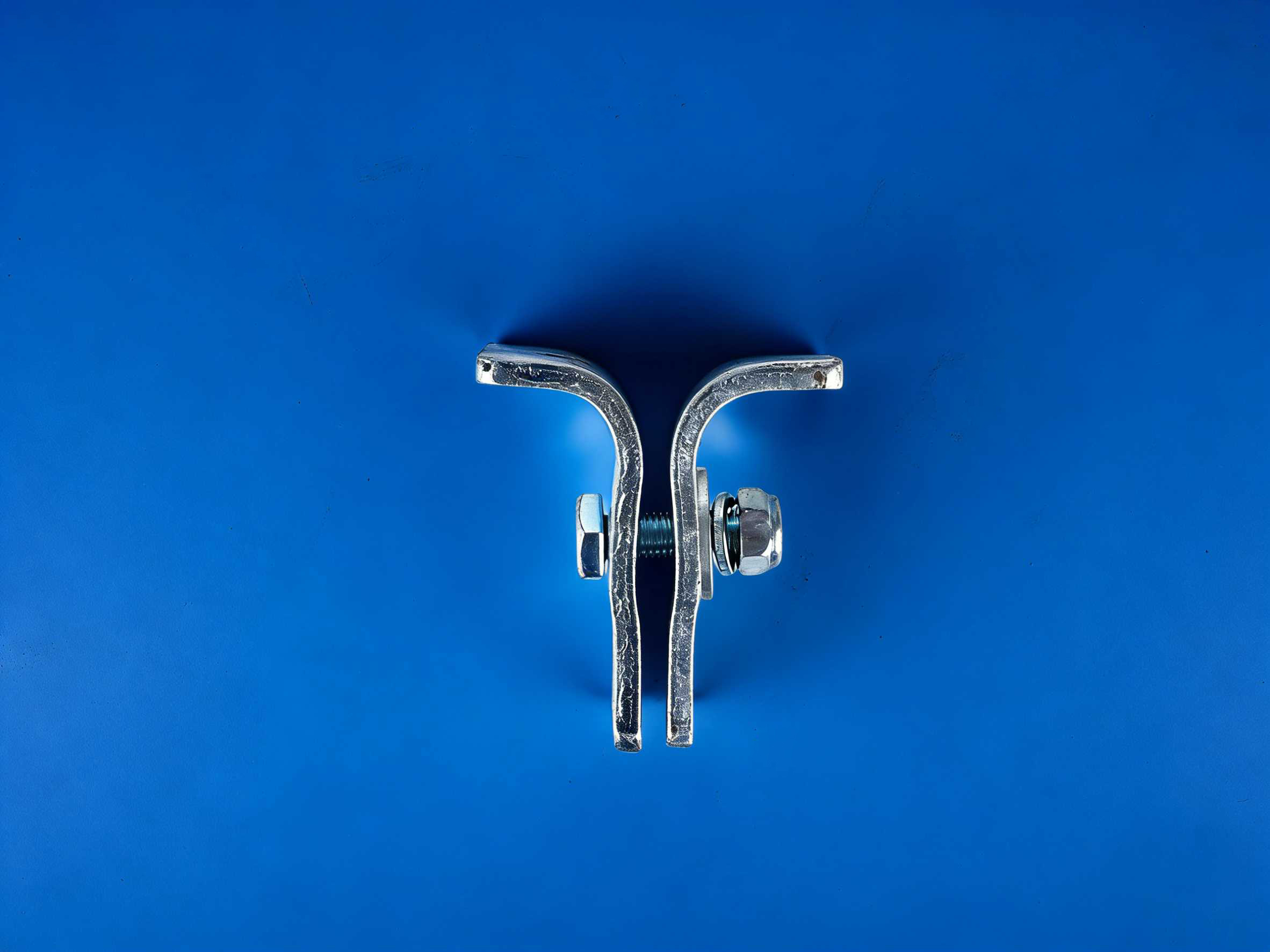

1: S1 is formed by overall stamping. S2 is composed of two S1s welded together, with good dimensional consistency and high interchangeability.

2: It has strong combination capabilities and can be applied to lifting belts of different widths.

3: Made of carbon steel, with galvanized surface treatment.

4: Equipped with locking and retarding nuts, effectively preventing the fasteners from loosening during operation.

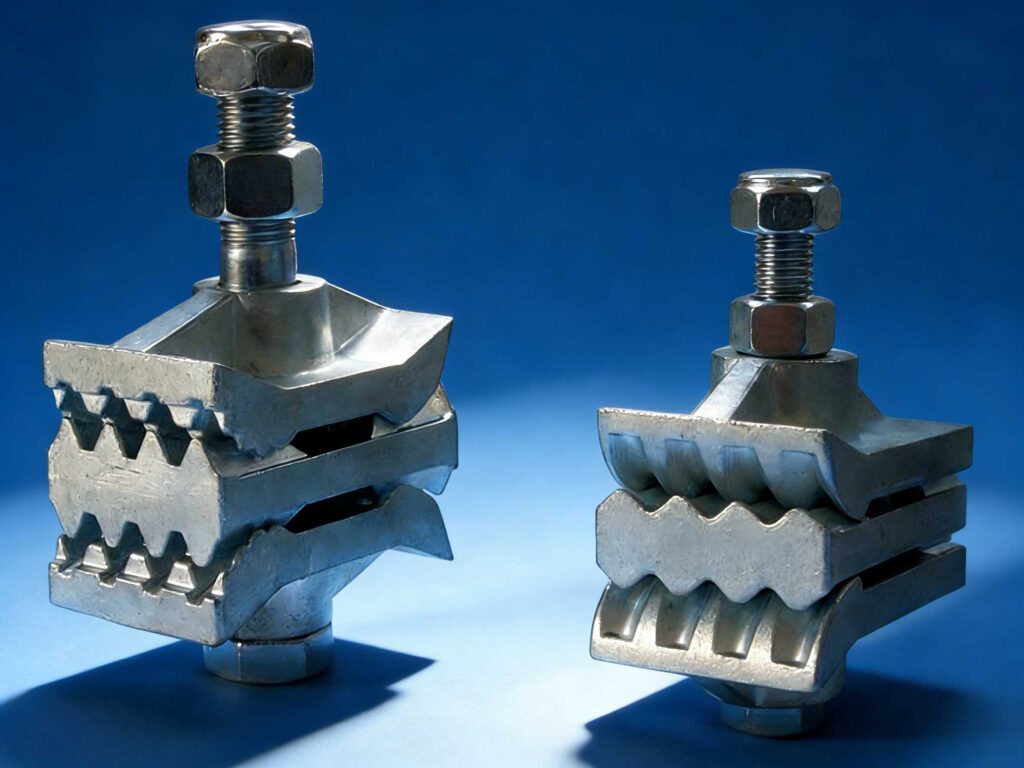

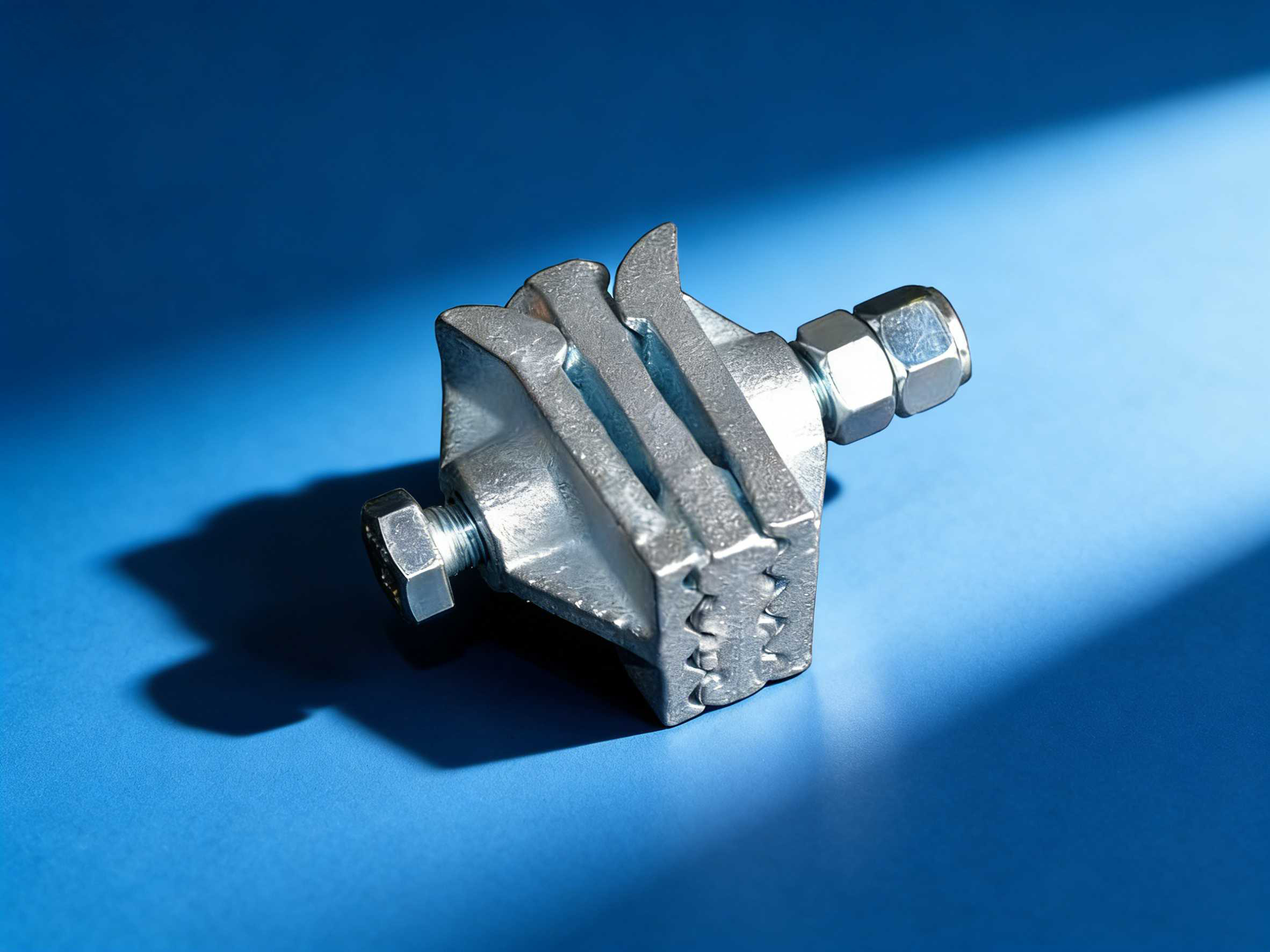

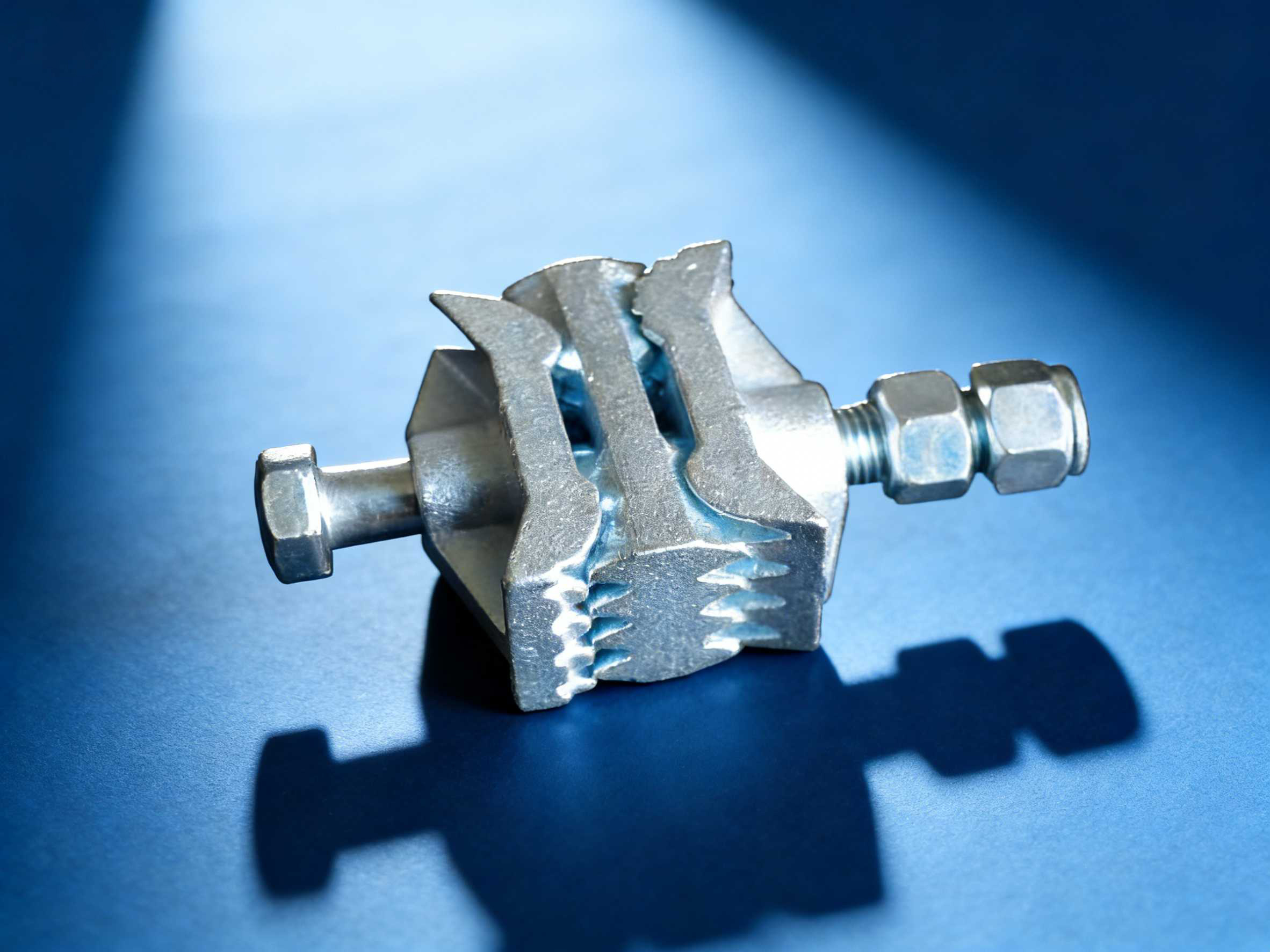

S4 and S5 Performance and Features

1: Achieve tight casting, ensuring good dimensional consistency.

2: Composed of three special-structured metal parts, providing higher clamping force.

3: Made of carbon steel, with galvanized surface treatment.
