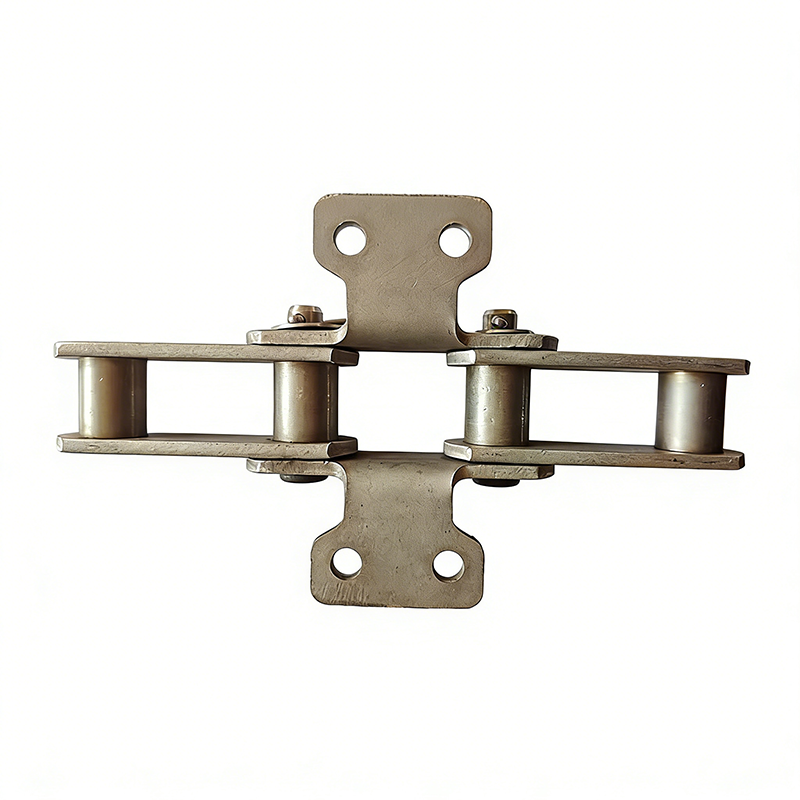

Elevator Chain
Elevator chain is an engineered component for bulk material conveying systems, designed for reliable operation, wear resistance, and easy integration in industrial applications.
Fast Delivery
Custom Orders
Expert Support
Details
Product Information
ADVANTAGES:
1.High bearing tensile resistance: The material has high strength, can withstand the tensile lifting force of heavy-duty materials, and is not easy to fracture and deform.
2.Wear-resistant and corrosion-resistant: The surface is treated by quenching,galvanizing and other processes, resistant to wear and corrosion, and suitable for harsh working conditions
3.Strong adaptability: The length and specifications of the chain links can be customized, and it is compatible with various equipment such as bucket elevators and scraper elevators.
4.Convenient maintenance: standardized link structure, can be replaced separately after a single section is worn, reducing operation and maintenance costs.
| Model | GLT66.5 | GLT100 | |
| Pitch（mm) | P | 66.5 | 100 |
| Inner Width(mm) | W | 26.5 | 38.5 |
| Pin Diameter(mm) | d1 | 22.23 | 36 |
| Bush Diameter(mm) | d2 | 12 | 16 |
| Plate Width(mm) | H | 30 | 40 |
| Plate Thickness(mm) | T | 5~6 | 6~8 |
| Flight Attachment(mm) | L | 130 | 130 |
| L1 | 102 | 102 | |
| E | 32 | 32 | |
| d3 | 9 | 9 | |
| Rated Strength | KN | 130 | 110 |
| The dimensions of the attachment plate can be customized according to customer requirements. | |||
