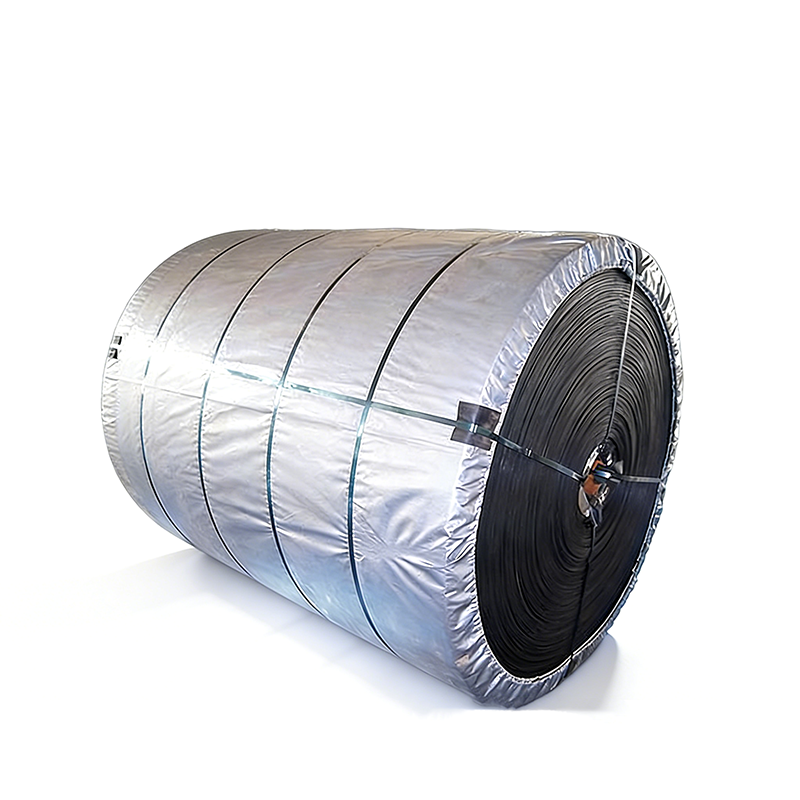

Heat-Resistant Conveyor Belt
Heat-Resistant Conveyor Belts are engineered components for bulk material handling systems, designed for reliable operation, wear resistance, and easy integration into high-temperature industrial applications.
Fast Delivery
Custom Orders
Expert Support
Details
Product Information
Heat resistant (high temperature resistant)conveyor belt is a specialized protective conveyor belt for transporting high-temperature materials such as metallurgy and building materials. It is formed through a special vulcanization process and can withstand high-temperature material baking and heat radiation for a long time. It is the core accessory for material transportation in high-temperature conditions.
Performance characteristics:
1. High strength and low shrinkage polyester canvas, cotton canvas, polyester cotton canvas, etc. are used as the skeleton layer.
2. The upper and lower surfaces are covered with a certain thickness of high-temperature or heat-resistant rubber.
Suitable for the transportation of sintered ore, coke, cement clinker particles, powders, blocks and other materials in industries such as metallurgy and building materials
| Project | Type | ||||
| T1 | T2 | T3 | T4 | ||
| Allowable range of variation | |||||
| hardness | Differential aging between post-aging and pre-aging states (IRHD) | +20 | +20 | ±20 | ±20 |
| Maximum value after aging (IRHD) | 85 | ||||
| Tensile strength | Performance change rate% | -25 | -30 | -40 | -40 |
| Minimum value after aging: MPa | 12 | 10 | 5 | 5 | |
| Tensile elongation at break | Performance change rate% | -50 | -55 | ||
| Minimum value after aging% | 200 | 500 | |||
| Full thickness performance shall comply with the standard GB/T20021-2005 "Heat-resistant Conveyor Belt with Canvas Core" | ||||
| Project | Unit | Metric | ||
| Core fabric | Heat-resistant type T1, T2, T3 performance grades | All-cotton CC, polyester-cotton TC, polyester EP, nylon NN | ||
| Hicigh-temperature resistant T4 performance grade | Polyester TNG EP | |||
| Number of core layers | 2~6 | |||
| Longitudinal tensile strength | N/mm | 160~2400 | ||
| 10% longitudinal reference force elongation rate | % | ≤4 | ||
| Rate of change in longitudinal tensile strength (after aging) | % | ≤4 | ||
| 10% longitudinal reference force elongation rate | % | ≤4 | ||
| 10% longitudinal reference force elongation rate (after aging) | % | ≤30 | ||
| Adhesive strength | Core fabric: 100% cotton or polyester-cotton | Between fabric layers | N/mm | ≥3.2 |
| Between the cover layer and the core strip | N/mm | ≥2.7 | ||
| Core fabric EP NN - Between layers | Between fabric layers | N/mm | ≥4.5 | |
| Between the cover layer and the core strip | N/mm | ≥3.5 | ||
| Width | mm | 400-1200 | ||
| Long belt | m | ≤300 | ||
