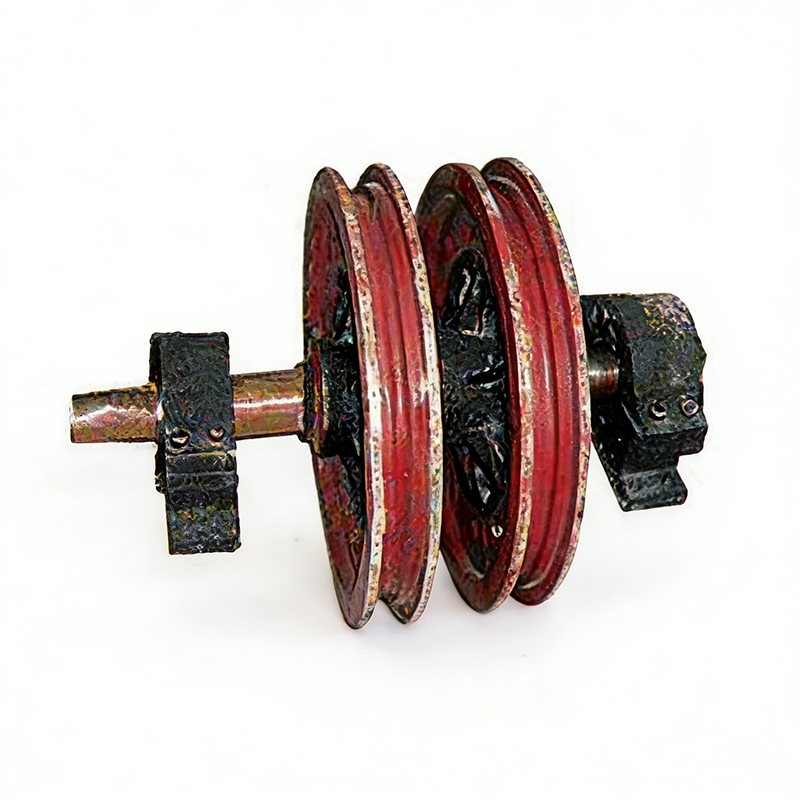

Round Link Chain Elevator Sprocket 1

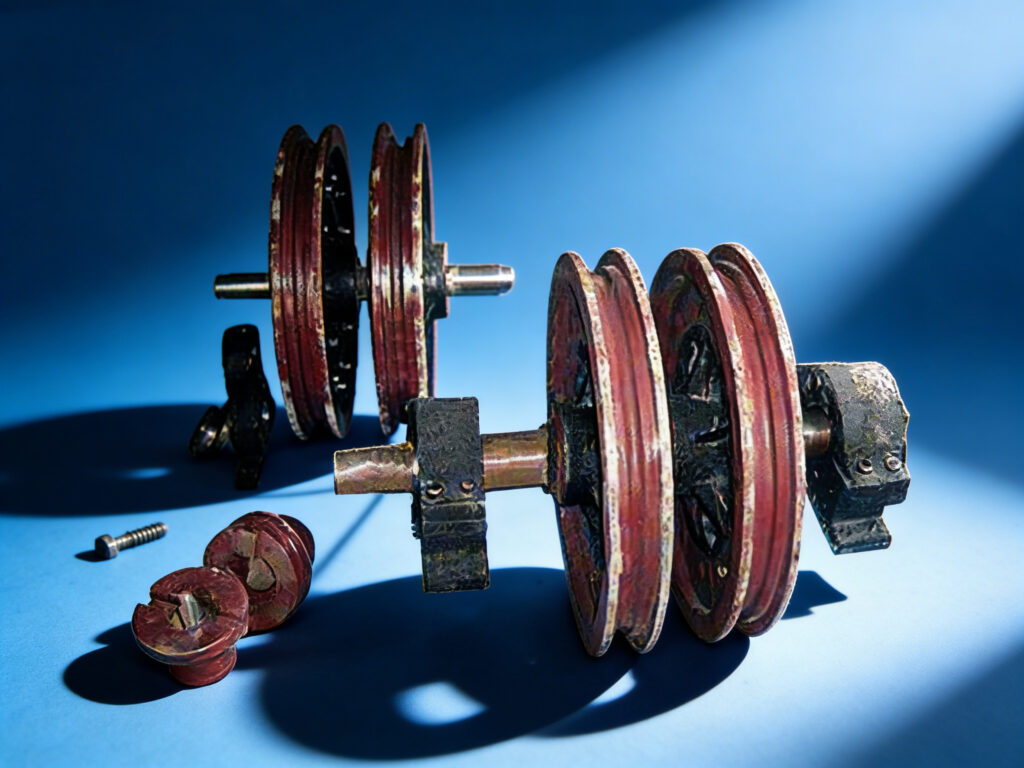

Round Link Chain Elevator Sprocket 2
Round Link Elevator Sprocket

Round Link Chain Elevator Sprocket

Round Link Chain Elevator Sprocket is an engineered component for bulk material conveying systems, designed for reliable operation, wear resistance, and easy integration in industrial applications.

Get a Quote
Fast Delivery
Custom Orders
Expert Support
Share this product:
Details

Product Information

The Round Link Chain Elevator Sprocket is the core transmission component of the equipment, responsible for driving the circular chain to rotate, thereby driving the buckets to complete the vertical transportation of materials.

Head Sprocket：

Model A B C D E F G H I J K L M N Universal Using
TH160 60 64 65 70 3612 400 20 52 70 100 520 710 59 55 360*800
TH200 60 64 65 70 3612 410 20 52 70 120 590 780 59 55 400*1000
TH250 60 64 65 70 3612 530 22 66 80 160 650 840 59 55 450*1000
TH315 80 84 85 90 3616 630 24 70 90 200 725 950 79 75 500*1200
TH400 80 84 85 90 3616 660 24 70 90 250 825 1050 79 75 600*1300
TH500 110 120 125 130 3522 730 28 85 105 315 985 1200 108 100 700*1500
TH630 110 120 125 130 3522 910 28 85 105 400 1145 1360 108 100 800*1800
The sprocket can be customized according to customer requirements

Boot Sprocket：

Model A B C D E F G H I J K L Universal Using
TH160 50 54 55 60 3610 400 20 52 70 100 590 625 360*800
TH200 50 54 55 60 3610 410 20 52 70 120 625 660 400*1000
TH250 50 54 55 60 3610 530 22 66 80 160 670 710 450*1000
TH315 60 64 65 70 3612 630 24 70 90 200 710 760 500*1200
TH400 60 64 65 70 3612 660 24 70 90 250 820 870 600*1300
TH500 80 84 85 90 3616 730 28 85 105 315 945 1000 700*1500
TH630 80 90 95 100 3616 910 28 85 105 400 1080 1135 800*1800
The sprocket can be customized according to customer requirements
