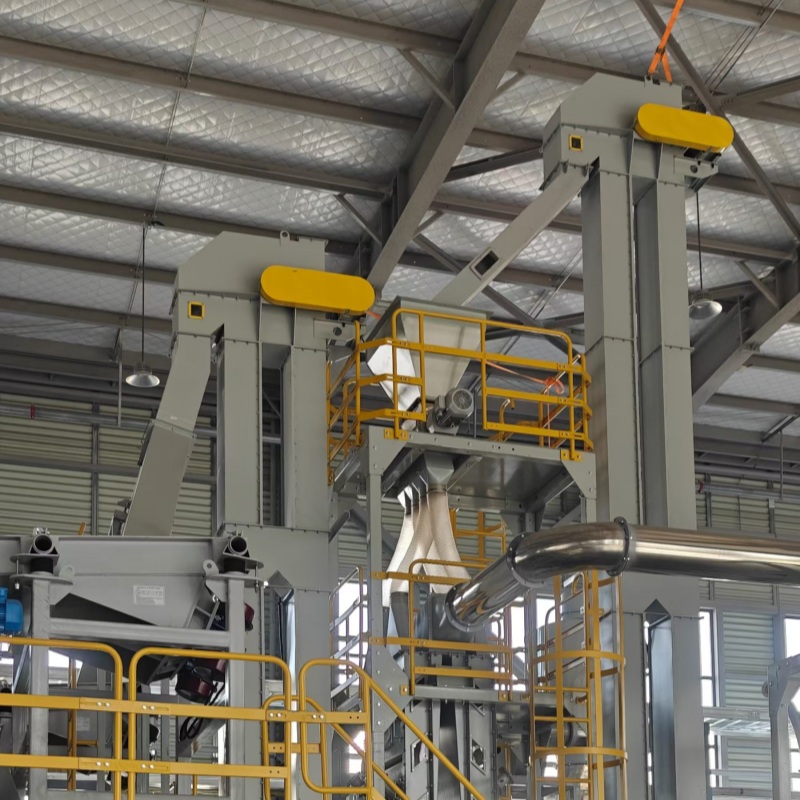

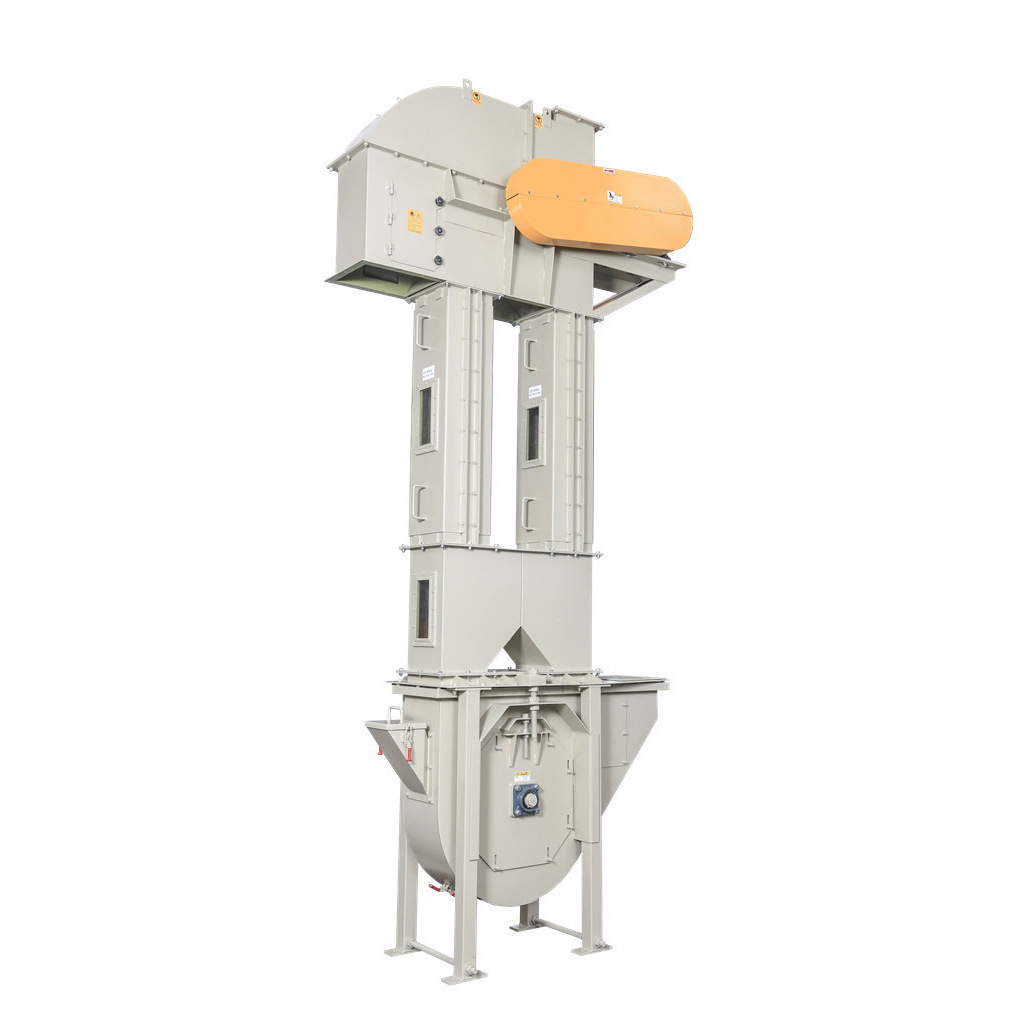

1.TDTG Series Bucket Elevator Overview

The TDTG series bucket elevator is a vertical conveying equipment that uses a belt as the traction component. It is specifically designed for low-crushing transportation of dry, granular or powdered materials, and is widely used in industries such as grain processing, food manufacturing, feed production, chemical and building materials. The equipment adopts a centrifugal discharge method, operates smoothly, has high conveying efficiency, and is a standard configuration equipment for the grain, food, feed, grain processing, chemical and building materials industries. In special environments, the belt traction component can be changed to a ring chain traction component according to the material characteristics.

2.Applications

• Grain and oil processing: The entire process of storing, cleaning, grinding, and transporting finished products for raw grains such as wheat, corn, rice, and soybeans; vertical lifting of powder/granular materials such as flour, starch, and rice bran.
• Food Processing: The transportation of malt, coffee beans, nuts, and candy granules, meeting food-grade hygiene standards.
• Feed Industry: Raw materials such as corn and soybean meal, as well as vertical transportation of compound feed and pellet feed, are adapted to meet the demand for low-crushing feed production.

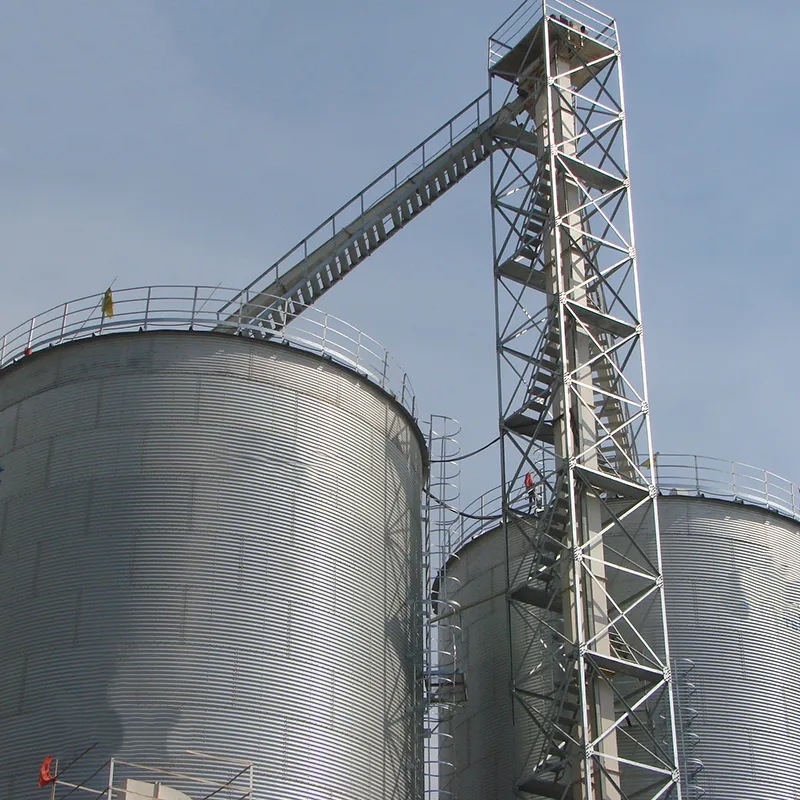

• Warehousing and Logistics: Grain storage and silo operations for grain entry/exit, as well as intermediate transportation. This enables efficient vertical transfer of bulk grains.
• Chemical Engineering and Building Materials：Chemicals: Granular/powdered chemical raw materials, fertilizers, resin powder；Building materials: raw and finished cement, gypsum powder, small particles of limestone

Occasion not recommended
High-temperature materials (above 60–80℃, causing the adhesive tape to deteriorate easily)
Large pieces of abrasive material (with easily worn buckets and tapes)

3.Advantages

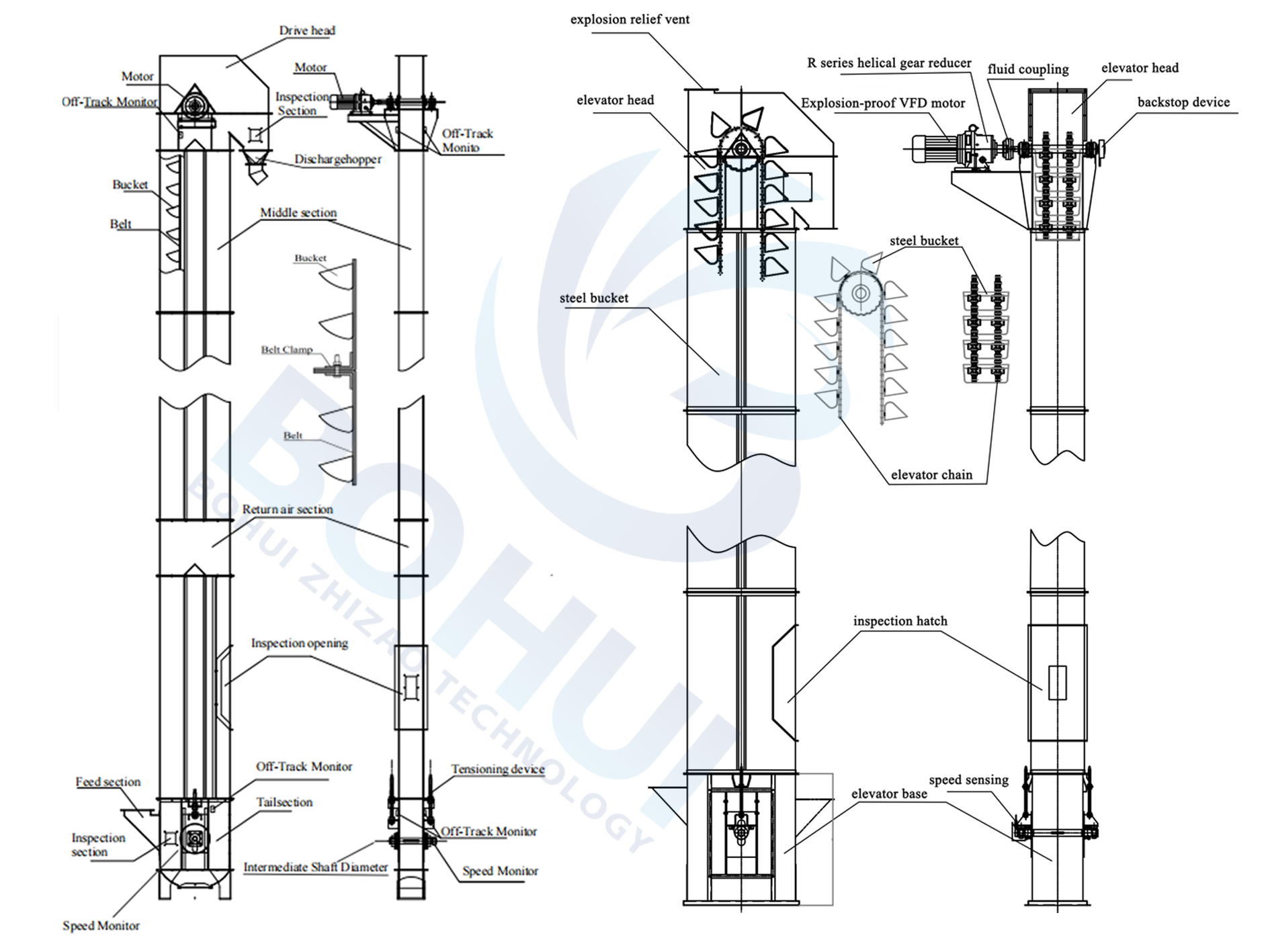

1. Heavy-Duty Casing:Constructed from high-strength carbon steel (powder-coated or galvanized) or 304/316 stainless steel. Dust-tight and weather-proof construction ensures material integrity.
2. Head Section:Features split-hood design for easy access to the drive pulley and discharge wear liners.
3. Boot Section:Includes a self-cleaning "curved bottom" to prevent material accumulation and cross-contamination.
4. High-Spec Belts:Equipped with anti-static, oil-resistant, and flame-retardant (MSHA/ATEX certified) belt options or high-tensile forged steel chains for heavy-lift applications.
5. Advanced Safety Integration:Standard units include zero-speed switches, belt alignment sensors, and explosion relief venting to ensure compliance with global safety standards.

4.Optional configurations

The standard TDTG series bucket elevator is made of carbon steel and is coated with one or more layers of high-quality powder coating, providing excellent corrosion resistance, wear resistance and typical industrial wear performance. For outdoor installations or applications exposed to humid environments, we offer a fully galvanized surface treatment, providing outstanding all-weather protection. When hygiene conditions or handling corrosive products are required, the entire elevator can be made of stainless steel (304) to meet food-grade standards and facilitate cleaning. Additionally, we also offer custom color options to match the visual brand or safety color code of your facility, ensuring that your material handling equipment is both durable and seamlessly integrated into your operational environment.

5.Technical Parameters

The TDTG series bucket elevator can be customized.

All you need to do is provide the working conditions (Industry scenario, transported materials, total height of the elevator, tonnage per hour, indoor or outdoor), or provide your drawings and parameters, and send them to our email: [email protected].

We will reply to you within 24 hours.
