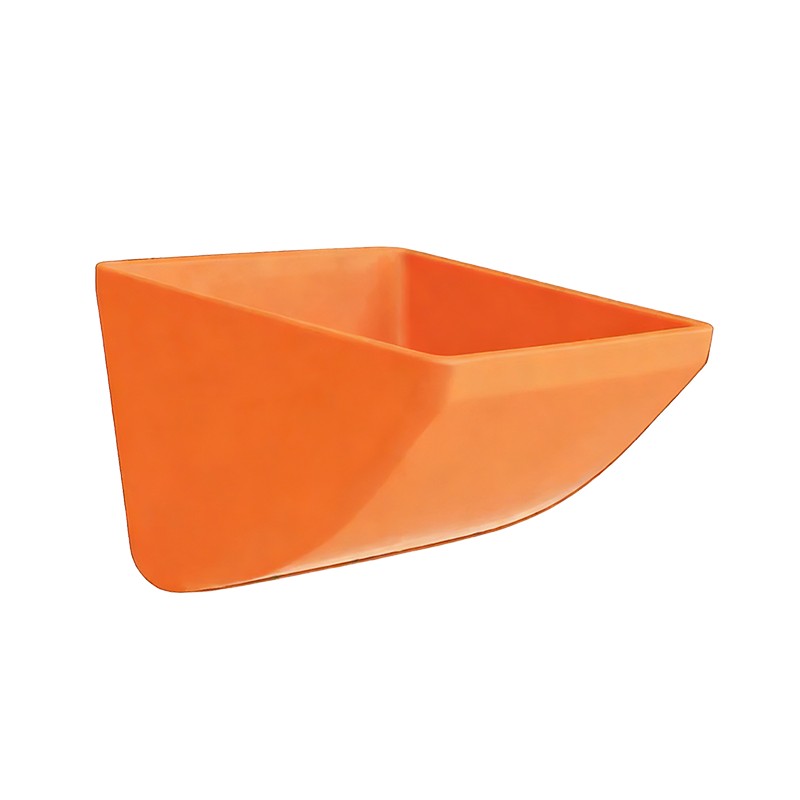

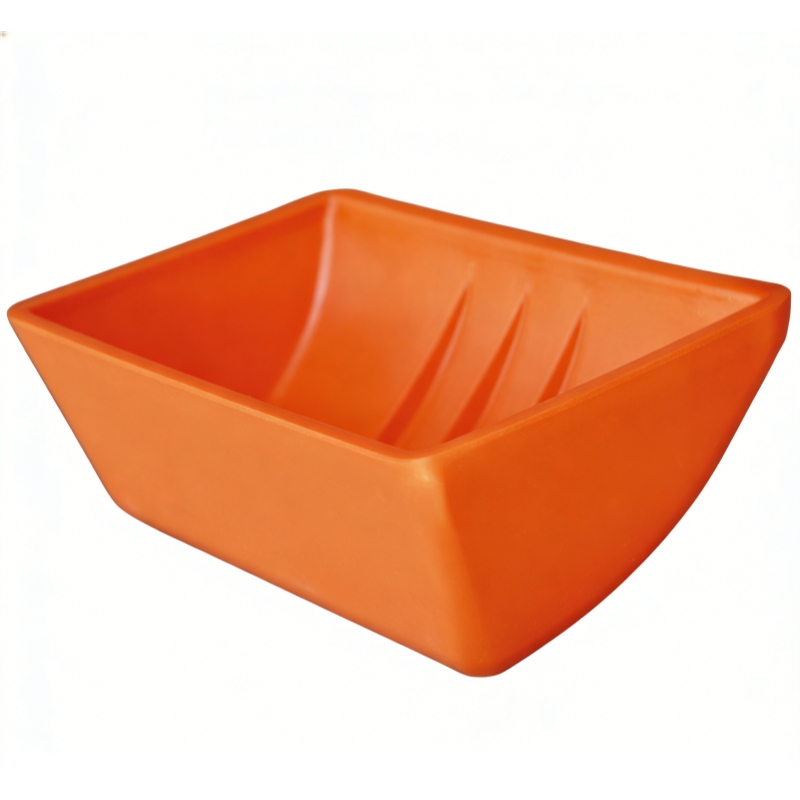

King Tiger Heavy Duty Bucket

King tiger series heavy duty bucket has two series, one is deep bottom type DK, and Another is shallow bucket type SK.
It is a reinforced and interchangeable version of the imperial D(deep), DS(deep), DQ(shallow), S(shallow) and M(middle deep) series bucket.

Material	HDPE, Nylon, PU, King Tiger Special Material

Get a Quote

Fast Delivery

Custom Orders

Expert Support

Details

Product Information

King tiger series heavy duty bucket has two series, one is deep bottom type DK, and Another is shallow bucket type SK.

Our King Tiger series can replace of Maxilift tiger series.

Advantages compared with other types of buckets:

Better Material

The material is modified high molecular polymer, it has better abrasion resistance and impact resistance compared with the common HDPE material.

Optimized Design

This series bucket has reinforced walls, extra thicker bucket corners, and even a thicker front lip design. This caused the elevator bucket with extremely high strength, excellent abrasion resistance and outstanding material discharge performance.

Longer Life

This better bucket design has an extremely thick structure, making King Tiger Series buckets the most durable elevator buckets.

Improved Customer Values

Reduce clients’ maintenance time of the elevator, and save the cost.

For DK deep bottom elevator bucket, we have two types of units, one is for the imperial unit, and another is for the metric unit.

DK deep bottom elevator bucket(INCH)

Model	Bucket Dimension(mm)			Mounting Holes(mm)				Capacity(L)
Model	Length A	Proj. B	Depth C	From Top D	Hole Centres E	No. of Holes	Hole diameter	Usable Level (Z-Y)+10%	Water Level (Z-Y)
DK7X5	205	142	127	30	120	2	9	1.47	1.75
DK8X5	225	142	127	30	120	2	9	1.62	1.93
DK9X5	253	142	127	30	85	3	9	1.93	2.41
DK10X5	279	142	127	30	90	3	9	2.1	2.6
DK11X5	298	142	127	30	100	3	9	2.21	2.75
DK12X5	326	142	127	30	85	4	9	2.42	3
DK8X6	229	168	152	40	120	2	9	2.42	2.83
DK9X6	257	168	152	40	85	3	9	2.65	3.23
DK10X6	283	168	152	40	90	3	9	2.93	3.62
DK11X6	302	168	152	40	100	3	9	3.12	4.01
DK12X6	330	168	152	40	85	4	9	3.48	4.44
DK13X6	349	168	152	40	85	4	9	3.78	4.74
DK14X6	378	168	152	40	95	4	9	4.15	5.08
DK10X7	285	200	178	45	90	3	9	4.07	4.83
DK11X7	304	200	178	45	100	3	9	4.35	5.39
DK12X7	329	200	178	45	85	4	9	4.82	5.81
DK13X7	351	200	178	45	90	4	9	5.58	6.52
DK14X7	380	200	178	45	95	4	9	5.74	6.9
DK15X7	405	200	178	45	100	4	9	6.68	7.61
DK16X7	440	200	178	45	85	5	9	6.95	7.9
DK11X8	310	225	305	50	65	4	9	5.92	6.84
DK12X8	338	225	205	50	85	4	9	6.44	7.46
DK13X8	357	225	205	50	90	4	9	7.13	8
DK14X8	385	225	205	50	95	4	9	7.56	8.76
DK15X8	413	225	205	50	80	5	9	8.73	9.47
DK16X8	448	235	205	50	85	5	9	9.08	10.5
DK18X8	483	235	205	50	95	5	9	10	11.56
DK20X8	535	235	205	50	90	6	11	11.23	13
DK22X8	585	235	205	50	100	6	11	12.65	14.3
DK24X8	630	235	205	50	88	6	11	13.43	15.3
DK16X10	460	286	254	70	73	6	11	14	16
DK18X10	498	286	254	70	78	6	11	16.02	17.7
DK20X10	545	286	254	70	88	6	11	18.17	19.7
DK22X10	605	292	264	70	100	6	11	19.45	22.7
DK23X10	615	292	264	70	85	7	11	20.33	23.6
DK24X10	635	292	264	70	88	7	11	21.78	24.9
DK25X10	653	292	264	70	90	7	11	22.21	25.5
DK26X10	691	292	264	70	98	7	11	22.99	26.5
DK27X10	701	292	264	70	85	8	11	23.87	27.4
DK28X10	745	292	264	70	90	8	11	24.64	28.4

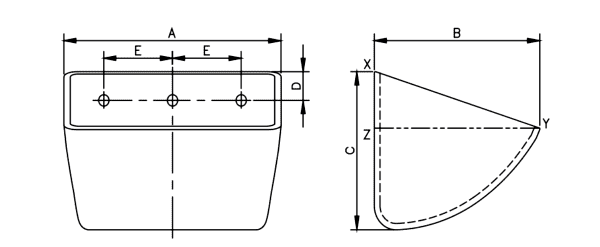

DK deep bottom elevator bucket(MM)

Model	Bucket Dimension(mm)			Mounting Holes(mm)				Capacity(L)
Model	Length A	Proj. B	Depth C	From Top D	Hole Centres E	No. of Holes	Hole diameter	Usable Level (Z-Y)+10%	Water Level (Z-Y)
DK1109	111	93	80	25	60	2	7	0.3	0.27
DK1311	136	117	92	30	60	2	7	0.59	0.54
DK1612	162	122	102	32	90	2	7	0.78	0.71
DK1812	189	127	110	32	120	2	9	0.79	0.72
DK2312	237	129	120	35	12	2	9	1.32	1.2
DK2812	289	129	125	35	100	3	9	1.78	1.62
DK1614	167	143	125	40	90	2	7	1.12	1.02
DK1814	192	145	125	40	120	2	9	1.49	1.35
DK2314	237	145	125	40	85	3	9	1.67	1.52
DK2814	285	142	125	40	100	3	9	1.83	2.01
DK2316	238	169	140	45	85	3	9	2.37	2.15
DK2616	266	169	140	45	90	3	9	2.64	2.4
DK2816	290	169	141	45	100	3	9	3.01	2.74
DK3116	318	169	141	45	85	4	9	3.32	3.02
DK3118	316	195	165	45	85	4	9	3.52	3.2
DK3518	358	195	165	45	95	4	9	5.09	4.63
DK4118	419	195	165	45	85	5	9	5.64	5.13
DK2919	295	197	178	45	75	4	9	4.72	4.29
DK3121	319	224	191	45	85	4	9	6.18	5.62
DK3621	369	224	191	45	95	4	9	7.18	6.53
DK4121	421	224	191	45	85	5	9	8.77	7.97
DK4621	470	224	191	45	95	5	9	9.57	8.7
DK5121	520	225	210	55	100	6	11	11.66	10.6
DK2823	289	230	190	45	100	3	9	4.85	4.41

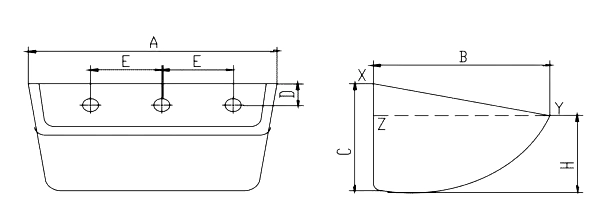

SK shallow bottom elevator bucket(MM)

Model	Bucket Dimension(mm)			Mounting Holes(mm)				Capacity(L)
Model	Length A	Proj. B	Depth C	From Top D	Hole Centres E	No. of Holes	Hole diameter	Usable Level (Z-Y)+10%	Water Level (Z-Y)
SK1814	186	140	87	30	100	2	9	0.89	0.85
SK1914	190	146	105	25	100	2	9	1.26	1.2
SK2314	235	143	96	30	120	2	9	1.35	1.29
SK2814	285	143	96	30	90	3	9	1.75	1.67
SK2315	235	155	91	30	120	2	9	1.59	1.51
SK2815	285	155	91	30	90	3	9	1.96	1.87
SK2316	238	170	102	35	120	2	9	1.5	1.43
SK2816	290	165	108	35	90	3	9	2.31	2.2
SK3216	330	165	111	35	80	4	9	2.48	2.36
SK2417	247	178	120	40	120	2	9	2.3	2.18
SK2817	289	178	120	40	90	3	9	2.65	2.52
SK2917	295	181	120	35	115	3	9	3.13	2.98
SK3321	337	219	140	40	85	4	9	4.44	4.23
SK3823	380	233	165	45	100	4	9	6.3	6
SK4723	478	233	165	45	100	5	9	8.5	8.1
SK2824	295	248	168	45	100	3	9	5.9	5.6
SK3325	335	265	170	50	85	4	9	6.9	6.55
SK4726	470	265	170	50	95	5	11	9.9	9.4
SK5626	569	265	170	50	120	5	11	12.35	11.75
