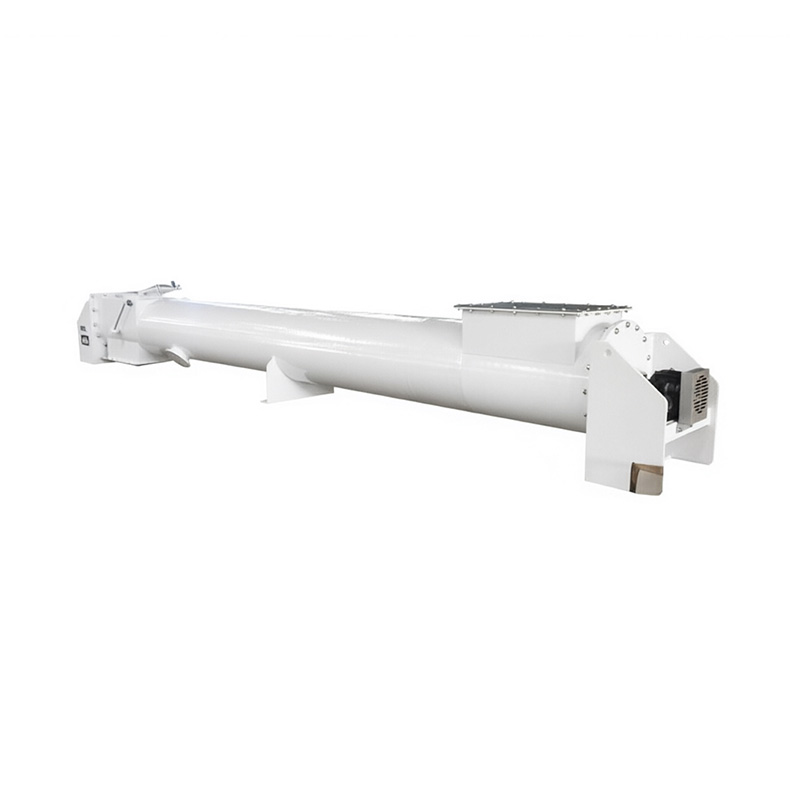

GLSS Series Round Tube Screw Conveyor
Our GLSS Series Round Tube Screw Conveyors offer a versatile and enclosed solution for the efficient transport and dosing of bulk materials. Designed for both horizontal and inclined applications, these systems are engineered to handle everything from free-flowing powders to thick, semi-solid materials. With a focus on rugged construction and modular flexibility, they ensure a dust-free environment while maintaining high throughput and consistent material flow.
Fast Delivery
Custom Orders
Expert Support
Details
Product Information
1.GLSS Series Round Tube Screw Conveyor Overview
The GLSS series round tube screw conveyor is designed for conveying, feeding, and discharging materials. It can be utilized in animal feed processing plants, grain milling facilities, malt production operations, and various other grain processing plants for transporting coarse and fine powders, as well as fine and coarse granular materials. The conveyor supports both horizontal and upward inclined conveying modes.
2.Applications:
- Food industry: Raw grains / finished grains in grain warehouses, flour mills, rice mills; horizontal transportation at small inclinations in enclosed systems, dust prevention and spill prevention
- Feed industry: Material transfer from raw grain storage areas to batching, granulation, and packaging in feed mills
- Oil and grain food industry: Powdered / granular grain raw materials in oil mills and food factories
- Other scenarios: Environmental protection transportation of non-sticky powder materials in industries such as building materials and chemicals
3.Product Features
- The design is exceptionally robust, extending service life while reducing maintenance costs.
- The optional large-capacity feed opening with gradient pitch ensures continuous unloading from the storage bin, thereby preventing material clogging.
- The system adopts a fully sealed design to prevent dust leakage, thereby ensuring a clean environment around the equipment.
- The optimized design minimizes corners and gaps, thereby effectively reducing product residue.
- The modularization of components including the transmission system, feed inlet, and discharge port enables easy structural customization according to specific customer requirements.
4.Technical Parameters
| Model | Screw Flight Dia(mm) | Pitch(mm) | Horizontal Capacity(t/h) | Recommended Speed (r/min) | Motor Power For 10m Length (kW) | Material temperature |
| GLSS120 | 120 | 96 | 0~1 | 70~90 | 0.75~2.2 | ≤200℃ |
| GLSS160 | 160 | 128 | 0~5 | 60~80 | 0.75~3.0 | ≤200℃ |
| GLSS200 | 200 | 160 | 0~10 | 50~70 | 2.2~4.0 | ≤200℃ |
| GLSS250 | 250 | 250 | 0~30 | 45~65 | 2.2~5.5 | ≤200℃ |
| GLSS320 | 320 | 256 | 0~80 | 40~60 | 2.2~7.5 | ≤200℃ |
The GLSS Series Round Tube Screw Conveyor can be customized.
All you need to do is provide the material characteristics of your products, the length of transportation / pipe diameter, the specifications of the inlet and outlet ports, and the material requirements, or provide your drawings and parameters, and send them to our email: [email protected].
We will reply to you within 24 hours.
Our GLSS Series Round Tube Screw Conveyors offer a versatile and enclosed solution for the efficient transport and dosing of bulk materials. Designed for both horizontal and inclined applications, these systems are engineered to handle everything from free-flowing powders to thick, semi-solid materials. With a focus on rugged construction and modular flexibility, they ensure a dust-free environment while maintaining high throughput and consistent material flow.
