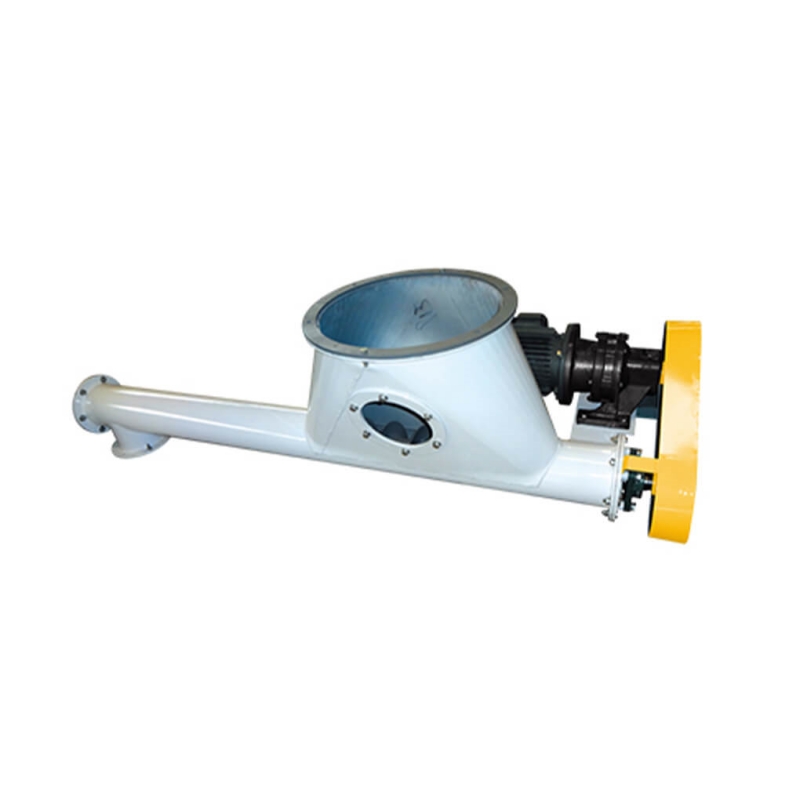

TWLL Series Circular Tube Screw Conveyor
- TWLL Series Circular Tube Screw Conveyer is applied to storing and batching processes of flour, feed and other materials. It is divided into fixed capacity that supports batching scale and adjusted capacity that is used separately;

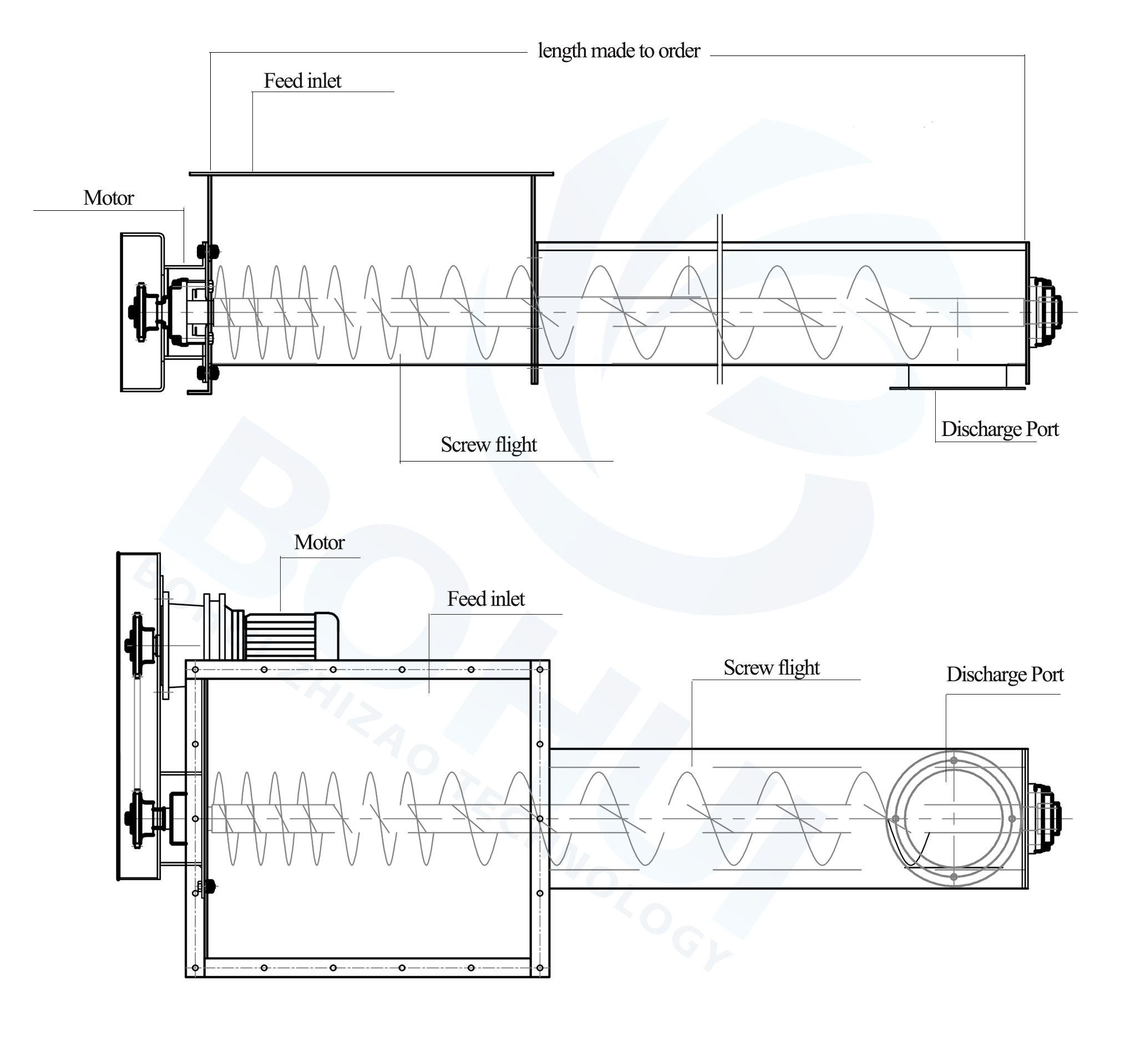

- Steel pipe housing and variable pitch blade, making feeding even and stable and preventing compaction and clogging issues during material conveying effectively;
- Cooperate with variable speed motor, frequency converter and PLC control, adjust feeding speed automatically based on demand of production line output, and realize automatic production;
- High output, good sealing, even feeding, convenient speed and capacity adjustment, simple structure and beautiful appearance.
Fast Delivery
Custom Orders
Expert Support
Details
Product Information
1.TWLL Series Circular Tube Screw Conveyor Overview
The TWLL Series Circular Tube Screw Conveyor is suitable for the out-storage and batching processes of materials such as flour, bran, and feed. It is available in both a quantitative form that is compatible with batching scales and a separate form for independent use. The equipment has a compact structure and reliable operation, and is a crucial part of the production line that ensures the stability of subsequent processes.
2.Applications

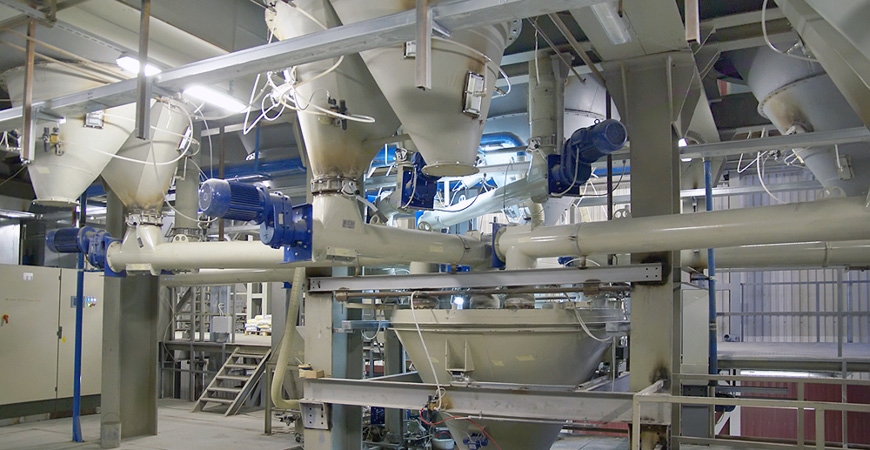

- Feed processing: Quantitative feeding by the batching system, uniform feeding before the granulator.
- Grain processing: Material transportation and metered feeding in flour mills and rice mills.
- Powder industry: Continuous feeding of powdered materials in fields such as chemicals and building materials.
3.Advantages
- Steel pipe casing, variable pitch blades, ensure uniform feeding and stable feeding, effectively prevent the material from being compacted or blocked during transportation, and are good at precise feeding.
- It can be combined with speed-regulating motors, frequency converters, and PLC control to automatically adjust the feeding speed according to the production line output requirements, achieving automated production.
- High output, good sealing, uniform feeding, convenient speed and quantity adjustment, simple structure, and attractive appearance.
- Applicable to a wide range of materials.It can handle granular materials such as corn, wheat, and soybean meal, as well as powder materials such as feed powder and flour, and is suitable for various production scenarios.
4.Technical Parameters
| Model | Capacity(T/h) |
| TWLL12 | 2.5 |
| TWLL16 | 8 |
| TWLL20 | 15 |
| TWLL25 | 30 |
| TWLL32 | 50 |
The TWLL Series Circular Tube Screw Conveyor can be customized.
All you need to do is provide the material characteristics of your products, the length of transportation / pipe diameter, the specifications of the inlet and outlet ports, and the material requirements, or provide your drawings and parameters, and send them to our email: [email protected].
We will reply to you within 24 hours.
