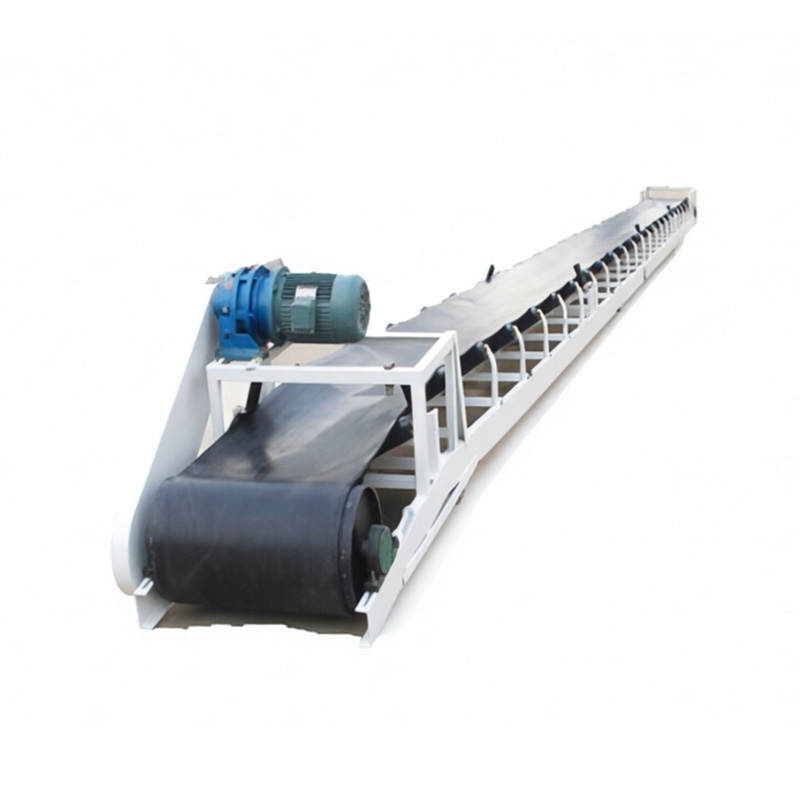

DTIIA Series Fixed Belt Conveyor
Heavy-Duty Stationary Belt Conveyors for High-Capacity Loading
Our Fixed Belt Conveyors are designed for the continuous, high-volume transport of aggregates, minerals, and industrial bulk goods. Built on high-strength truss or channel frames, these systems provide maximum structural integrity over long spans. Engineered for 24/7 operation, they deliver a cost-effective and energy-efficient solution for large-scale material handling facilities.
Fast Delivery
Custom Orders
Expert Support
Details
Product Information
The DTIIA Series Fixed Belt Conveyor is the backbone of efficient material handling plants. By combining robust structural engineering with premium-grade components, these conveyors minimize operational downtime and reduce the total cost of ownership. Each system is designed to handle heavy surge loads while maintaining precise belt tracking.
Key Features & Engineering Excellence
- Structural Rigidity: Deep-lattice truss frames for long-distance spans or heavy-duty C-channel frames for low-profile, indoor installations.
- Premium Idler & Pulley Systems: Equipped with CEMA-rated idlers featuring low-rolling resistance to save energy and extend belt life. Pulleys are precision-balanced to eliminate vibration.
- Advanced Material Control: Integrated impact beds at loading zones and high-efficiency primary/secondary belt cleaners to eliminate carry-back and spillage.
- Safety & Monitoring: Standard features include emergency pull-cord switches, belt-misalignment sensors, and zero-speed monitors to ensure OSHA/ATEX compliance.
Technical Specifications
- Belt Widths: 18" to 96" (450mm - 2400mm).
- Drive Systems: High-torque motorized pulleys or shaft-mounted gear reducers.
- Capacity: Capable of handling up to 10,000 TPH (Tons Per Hour) based on material density.
| Common Models | TD75,DT II,DT II A |
|---|---|
| Belt Width | B500mm/B650mm/B800mm/B1000mm/B1200mm/B1400mm/B1600mm |
| Standard Speed | 1.0m/s,1.25m/s,1.6m/s,2.0m/s,2.5m/s |
| Capacity | B500:60-150t/h;B650:120-280t/h;B800:200-450t/h;B1000:350-700t/h;B1200:550-1000t/h;B1400:800-1400t/h |
| Conveyance Dip Angle | Mineral / raw coal ≤ 18°;grain / pellet ≤ 15°; powder ≤ 12° |
| Driving Form | Motor + reducer drive,electric drum drive |
| Roller Type | Transmission roller, redirecting roller, surface-enhancing roller |
| Idler Type | Trough-type idler,parallel idler,buffer idler,self-aligning idler |
| Slack Adjuster | Helical tensioning,vehicle tensioning, vertical weight tensioning |
| Protector | Run-off switch,rope-pulling emergency stop switch,slip detection,material flow detection,anti-tear switch |
| Installation Method | Fixed installation,capable of horizontal or inclined arrangement |
| Applicable Material | Coal,ore,sand and gravel,grain,cement,chemical raw materials,various bulk materials |
| Work Environment | Indoor,outdoor,and open-air (can be equipped with rain and dust covers) |
| Power of Motor | 2.2 kW to 160 kW (selected based on length,load capacity,and inclination angle) |
