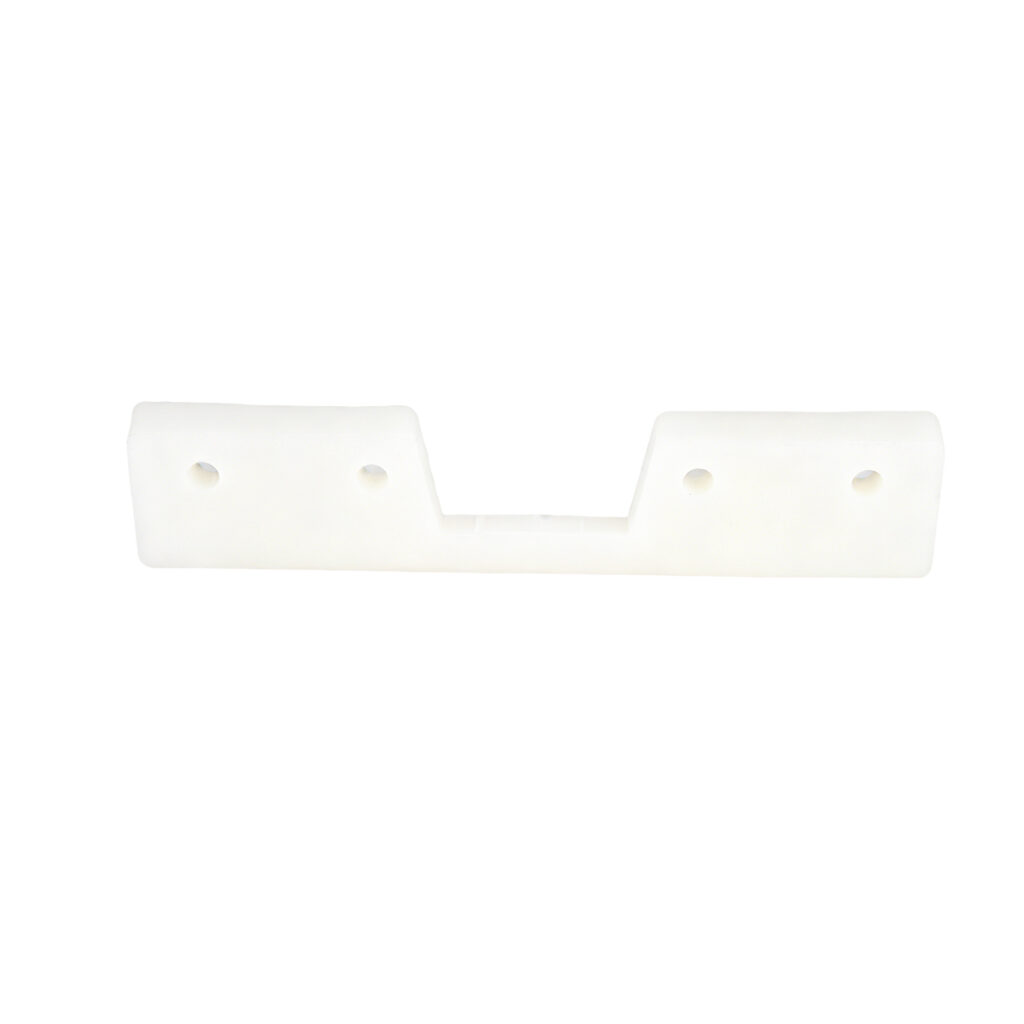

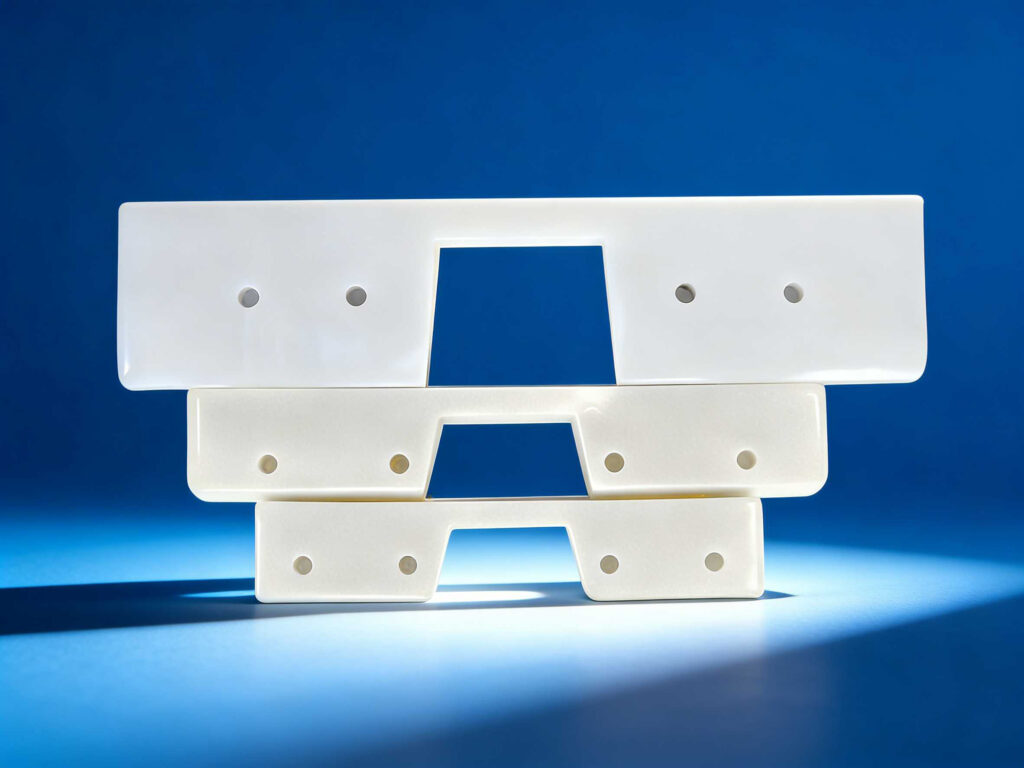

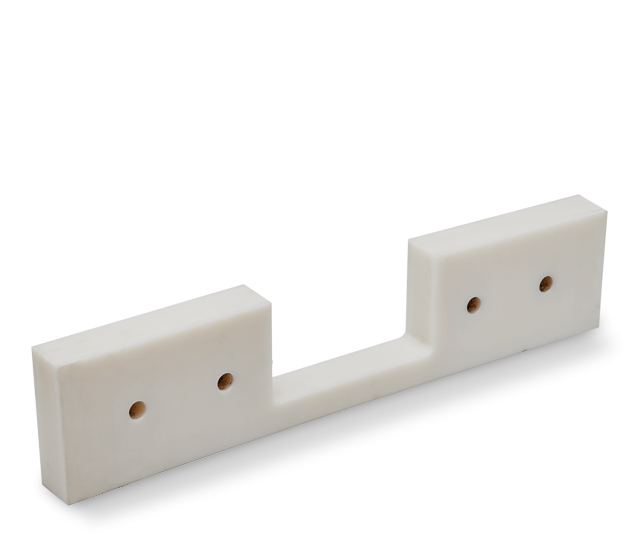

Plastic Flat Scraper Flight
Plastic Flat Scraper Flight is an engineered component for bulk material conveying systems, designed for reliable operation, wear resistance, and easy integration in industrial applications.
Product Information
Flat scraper material: polyethylene, nylon, ultra-high molecular weight polyethylene, polyurethane
Core features:
1. Self lubrication and anti adhesion: The surface friction coefficient of plastic material is low, non stick, easy to clean, and can efficiently push powdered and granular materials, avoiding material agglomeration and residue; The self-lubricating characteristic can reduce the frictional resistance with the conveyor tank, lower the operating noise and energy consumption of the equipment.
2. Wear resistant, corrosion-resistant and easy to maintain: The wear resistance is better than ordinary carbon steel, and it is resistant to impact, acid and alkali corrosion (except for strong oxidants). It has a long service life under humid and corrosive working conditions; The weight is only 1/5-1/8 of the same specification metal scraper, making installation and disassembly convenient, significantly reducing equipment load and maintenance costs.
3. Wide adaptability to safety and environmental protection: no sparks, no metal debris pollution, suitable for scenarios with strict hygiene and safety requirements such as food processing, pharmaceutical raw materials, flammable and explosive materials, etc; The thickness and size can be customized according to the width of the conveyor and the characteristics of the material, compatible with various installation methods such as chains and conveyor belts.
Applicable scenarios
Widely used in fields such as grain processing, feed production, chemical powder conveying, food and pharmaceutical transportation, and environmental waste sorting, it is the preferred component to replace traditional metal flat scrapers and achieve low-noise, clean, and energy-saving conveying.
| Specifications | L | L1 | δ | H | h | E1 | E2 | D | d |
| BF185*50 | 185 | 90 | 11 | 50 | 35 | 115 | 15 | 9 | |
| BF194*49 | 194 | 70 | 11 | 49 | 36 | 90 | 15 | 9 | |
| BF208*49 | 208 | 70 | 11 | 49 | 36 | 90 | 150 | 17 | 9 |
| BF240*49 | 240 | 72 | 13 | 49 | 36 | 95 | 195 | 17 | 9 |
| BF255*49 | 255 | 70 | 13 | 49 | 35 | 105 | 190 | 16 | 9 |
| BF145*45 | 145 | 75 | 11 | 45 | 33 | 102 | 19 | 9 | |
| BF184*45 | 184 | 75 | 11 | 45 | 33 | 102 | 19 | 9 | |
| BF284*45 | 284 | 75 | 11 | 45 | 33 | 102 | 228 | 19 | 9 |
| BF305*45 | 305 | 75 | 13 | 45 | 33 | 102 | 228 | 19 | 9 |
| BF305*50 | 305 | 90 | 13 | 50 | 35 | 115 | 245 | 15 | 9 |
| BF305*55 | 305 | 70 | 13 | 55 | 37 | 95 | 195 | 22 | 9 |
| BF360*45 | 360 | 75 | 14 | 45 | 33 | 102 | 228 | 19 | 9 |
| BF380*90 | 380 | 90 | 15 | 90 | 70 | 155 | 355 | 44 | 9 |
| BF480*90 | 480 | 90 | 16 | 90 | 70 | 170 | 310 | 44 | 9 |
Plastic Flat Scraper Flight is an engineered component for bulk material conveying systems, designed for reliable operation, wear resistance, and easy integration in industrial applications.
