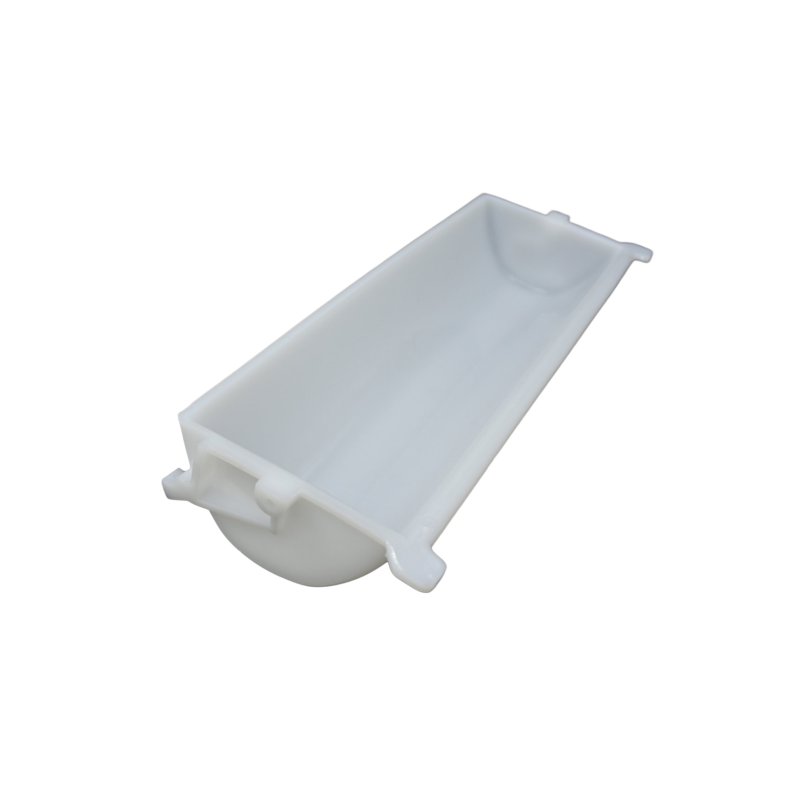

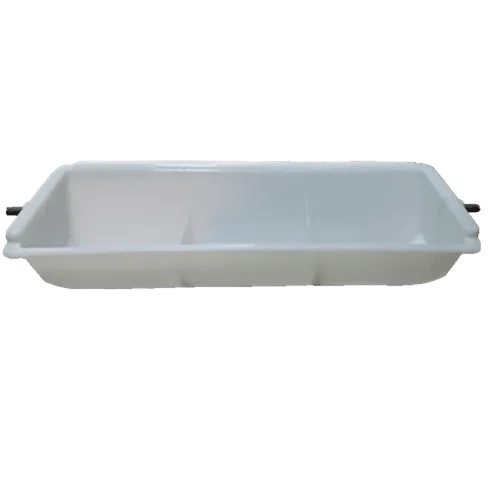

DL bucket (for Z Bucket Elevator)
- It is used for Z chain bucket elevator.
- This bucket is not general use, it will be different by different equipment. We have our mould drawing upon request.
- We have a relevant chain upon the choice.
| Material | HDPE, Nylon, PU |
|---|
Fast Delivery
Custom Orders
Expert Support
Details
Product Information
DL series elevator buckets are which mostly used in the agricultural industry for the Z type bucket elevator.
It is used for the vertical or horizontal mixed material chain style Z type elevator for sugar, wine, cereal, seed and other food processing industries, also it is used for clothes washing powder etc.
Mostly Z type bucket elevator is designed by different companies or organizations, we need to make the new mould if there is a certain quantity.
| Model | Bucket Dimension(mm) | Capacity(L) | ||
| Length A |
Proj. B |
Depth C |
Water Level (Z-Y) |
|
| DL2412 | 246 | 122 | 60 | 1.2 |
| DL2619 | 260 | 190 | 78.5 | 2.34 |
| DL3115 | 310 | 150 | 75 | 2.3 |
| DL3219 | 333 | 198 | 110 | 3.19 |
| DL3319 | 330 | 198 | 110 | 3.6 |
| DL3821 | 380 | 213 | 125 | 4.8 |
| DL4013 | 406 | 133 | 69 | 2 |
| DL6323 | 632 | 236 | 120 | 11 |
We will carry out personalized customization based on the data you provide.
