Plastic Elevator Buckets
Plastic Elevator Buckets
Get a Quote

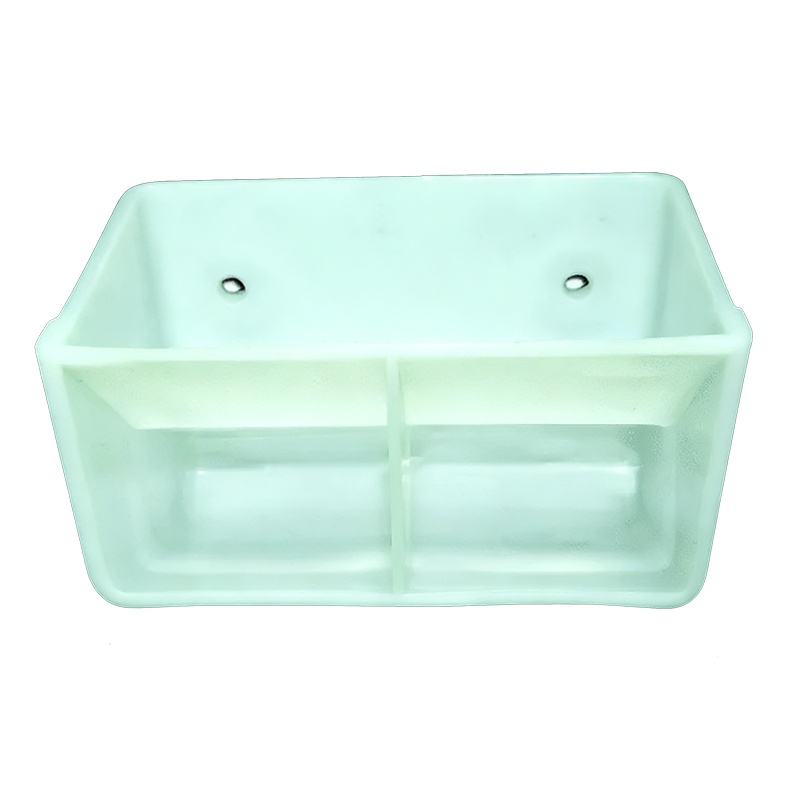

DG bucket (Combined Bottom Bucket)
- DW bucket is a series bucket with no bottom and one bottom bucket. And DG bucket is a kind of bucket which combines the bottomless type with the bottom type bucket we designed it.
- This kind of agricultural assembly bucket can adapt to the higher elevating speed and increase the elevating capacity.
| Material | HDPE, Nylon, PU |
|---|
Fast Delivery
Custom Orders
Expert Support
Details
Product Information
DG bucket is a kind of bucket that combines the bottomless type with the bottom type bucket.
This agricultural assembly bucket can adapt to the higher elevating speed and increase the elevating capacity.
Having more incoming material, having more material discharging, having significant loading coefficients, can adapt more quick speed discharging work, can raise the production ability dramatically.

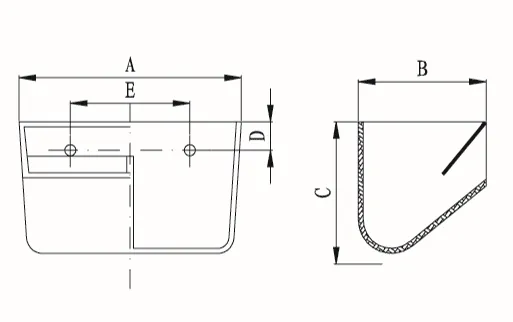

| Model | Bucket Dimension(mm) | Mounting Holes(mm) | Capacity(L) | |||||
| Length A |
Proj. B |
Depth C |
From Top D |
Hole Centres E |
No. of Holes |
Hole diameter |
Water Level (Z-Y) |
|
| DG1107 | 110 | 77 | 86 | 25 | 72 | 2 | 7 | 0.45 |
| DG1307 | 134 | 77 | 86 | 25 | 72 | 2 | 7 | 0.56 |
| DG1309 | 135 | 96 | 92 | 30 | 80 | 2 | 7 | 0.75 |
| DG1812 | 185 | 120 | 120 | 40 | 120 | 2 | 9 | 2 |
| Note: Installation holes and hole diameter can be customized. | ||||||||
- DW bucket is a series bucket with no bottom and one bottom bucket. And DG bucket is a kind of bucket which combines the bottomless type with the bottom type bucket we designed it.
- This kind of agricultural assembly bucket can adapt to the higher elevating speed and increase the elevating capacity.
| Material | HDPE, Nylon, PU |
|---|
