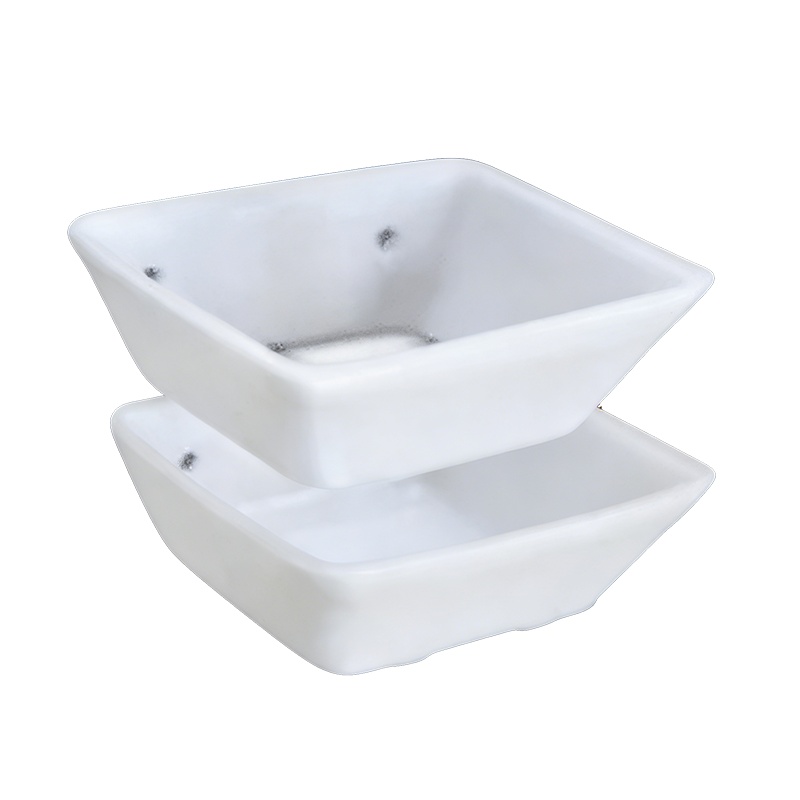

DW Bucket (Bottomless Type)
- It is a bucket group consisting of several bottomless buckets with one bottom bucket on the bottom.
- Increased the production capacity.
| Material | HDPE, Nylon |
|---|
Fast Delivery
Custom Orders
Expert Support
Details
Product Information
DM bottomless bucket team is for agricultural use.
This bottomless bucket is installed using several bottomless buckets in a very small space with a bucket with a bottom below.
Bottom buckets can minimize the bucket installation spacing close to zero and dramatically increase the elevating capacity. Commonly the working capacity could increase by about 20%.

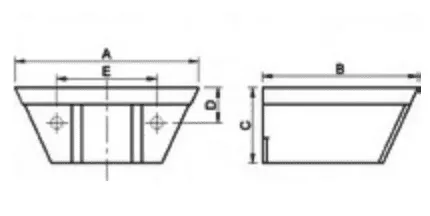

| Model | Bucket Dimension(mm) | Mounting Holes(mm) | Capacity(L) | |||||
| Length A |
Proj. B |
Depth C |
From Top D |
Hole Centres E |
No. of Holes |
Hole diameter |
Water Level (Z-Y) |
|
| DW0907 | 90 | 78 | 33 | 15 | 40 | 2 | 7 | 0.18 |
| DW1109A | 110 | 92 | 45 | 22 | 60 | 2 | 7 | 0.25 |
| DW1310 | 130 | 102 | 45 | 20 | 70 | 2 | 7 | 0.36 |
| DW0706 | 72 | 62 | 30 | 14 | 30 | 2 | 7 | 0.08 |
| DW1109 | 110 | 92 | 50 | 20 | 60 | 2 | 7 | 0.21 |
| DW1311 | 130 | 110 | 45 | 18 | 70 | 2 | 7 | 0.36 |
| DW1812 | 186 | 125 | 60 | 25 | 90 | 2 | 9 | 0.85 |
| Note: Installation holes and hole diameter can be customized. | ||||||||
