Steel Elevator Buckets

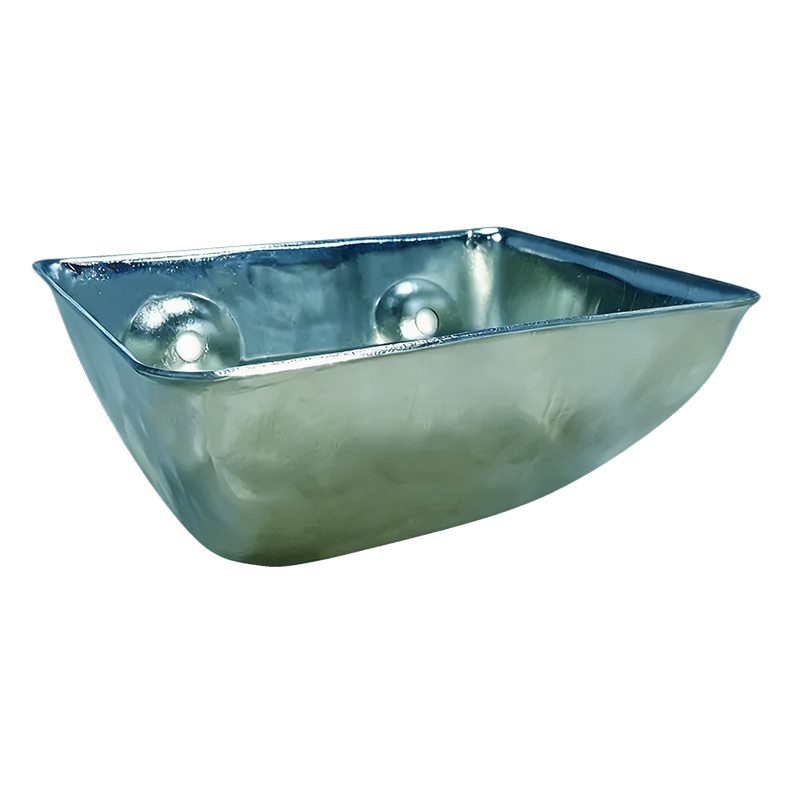

DS Steel Bucket (Deep Bottom)

The whole stamping means no welding mark. Seamless, the whole bucket is made of one unit.

Material	Carbon Steel, Stainless Steel

Get a Quote

Fast Delivery

Custom Orders

Expert Support

Details

Product Information

We have two types of whole stamping steel buckets, one deep bottom steel bucket DS type, and another DQ type, shallow bottom steel bucket.

The whole stamping means no welding mark. Seamless, the whole bucket is made of one unit.

Our whole stamping steel bucket use high-quality steel and a deep-drawn manufacturing process. This bucket has more strength and abrasion resistance ability than the welding type.

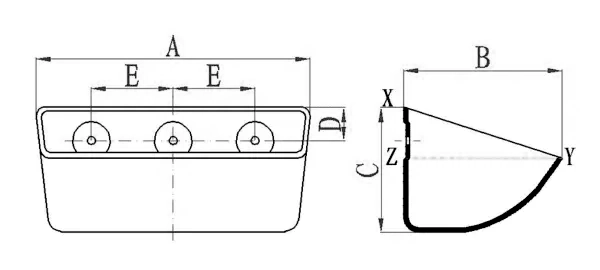

Model	Bucket Dimension(mm)			Mounting Holes(mm)			Thickness（mm)	Capacity(L)
Model	Length A	Proj. B	Depth C	Hole Centres E	No. of Holes	Hole diameter	Thickness（mm)	Total Level (X-Y)
DS0807	90	78	55	50	2	7	1.5	0.21
DS1009	100	90	65	50	2	7	1.5	0.31
DS1109	110	90	68	60	2	7	1.5	0.35
DS1309	130	90	70	60	2	7	1.5	0.45
DS1311	139	112	85	60	2	7	1.5	0.65
DS1312	138	125	85	60	2	7	1.5	0.73
DS1409	140	90	70	60	2	7	1.5	0.55
DS1411	140	112	85	60	2	7	1.5	0.69
DS1511	155	113	90	80	2	7	1.5	0.94
DS1612	166	126	95	90	2	7	1.5	1.18
DS1613	166	135	95	90	2	7	1.5	1.21
DS1813	188	130	95	90	2	9	1.5	1.33
DS1814	183	142	115	90	2	9	1.5	1.49
DS1814A	183	146	110	90	2	9	2	1.35
DS1914	190	142	110	90	2	9	1.5	1.62
DS2014	203	142	115	90	2	9	1.5	1.7
DS2313	238	130	105	120	2	9	1.5	1.76
DS2314	233	142	115	120	2	9	1.5	1.98
DS2314A	233	146	115	120	2	9	2	1.95
DS2316	236	162	125	120	2	9	1.5	2.18
DS2316A	238	166	130	120	2	9	2	2.44
DS2417	240	170	125	120	2	9	2	2.56
DS2614	265	140	110	150	2	9	2	2.61
DS2616	260	162	125	150	2	9	2	2.81
DS2813	288	130	112	100	3	9	1.5	2.44
DS2814	283	142	115	100	3	9	1.5	2.44
DS2814A	283	142	115	100	3	9	2	2.29
DS2816	283	168	130	100	3	9	2	3.17
DS2817	288	178	125	100	3	9	2	3.91
DS2818	290	183	142	100	3	9	2	3.87
DS2823	285	230	168	100	3	9	2	5.47
DS2916	290	168	130	100	3	9	2	3.28
DS3016	308	165	135	100	3	9	2	3.21
DS3021	310	215	165	100	3	9	2	5.7
DS3114	306	142	110	100	3	9	2	2.59
DS3118	315	190	155	75	4	9	2	4.18
DS3121	315	220	160	75	4	9	2	5.8
DS3216	320	160	135	75	4	9	2	3.65
DS3321	340	212	155	80	4	9	2	4.54
DS3325	340	255	150	80	4	9	2	6.84
DS3518	358	180	145	90	4	9	2	4.16
DS3621	365	220	160	90	4	9	2	7.14
DS3823	380	230	160	90	4	9	2	6.5
DS4118	415	190	145	95	4	11	2	6.45
DS4121	415	220	172	95	4	11	2	7.86
DS4216	420	160	135	90	4	11	2	6.72
DS4423	445	233	160	90	5	9	2.5	7.52
DS4621	460	220	160	95	5	11	2.5	8.84
DS4723	475	233	160	95	5	11	2.5	7.82
DS4626	460	260	205	95	5	11	2.5	7.87
DS5121	518	220	160	95	5	11	2.5	10.18
DS5626	560	260	170	110	5	11	2.5	11.9
