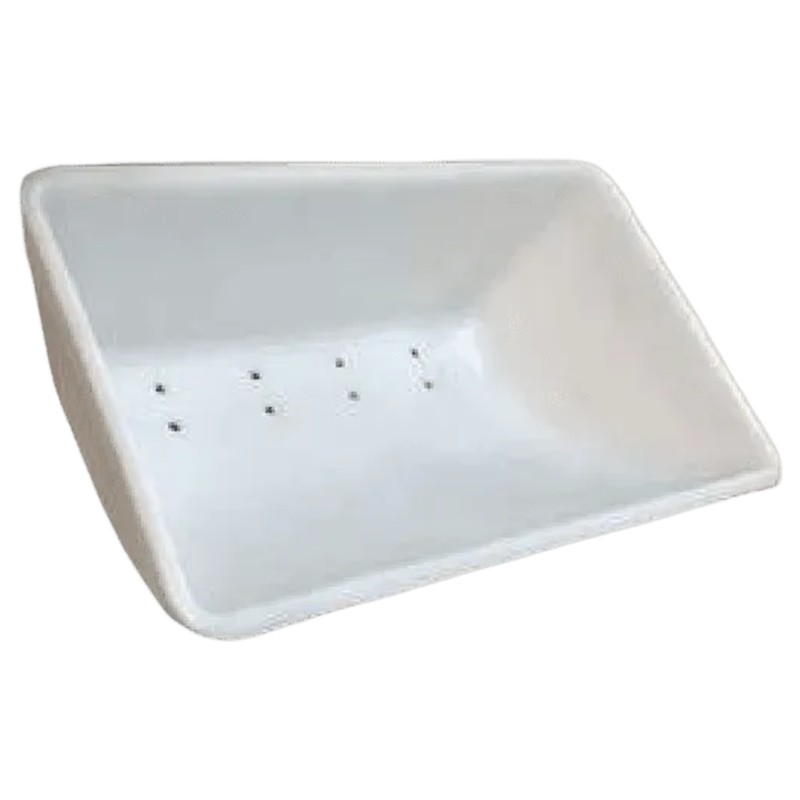

E Bucket (Certain Use)
- E type of bucket is not popular in the market, it is designed for a certain elevator.
- Have a thicker wall and a reinforced front lip which reduces the breakage and increases the elevator bucket lift use life.
- The most common applications is for the material grain, fertilizer, seeds, salt, chemicals, etc.
| Material | HDPE, Nylon |
|---|
Fast Delivery
Custom Orders
Expert Support
Details
Product Information
This type of bucket is designed for a certain elevator.
A thicker wall and a reinforced front lip reduce the breakage and increase the elevator bucket lift life.
The most common applications include grain, fertilizer, seeds, salt and chemicals etc.

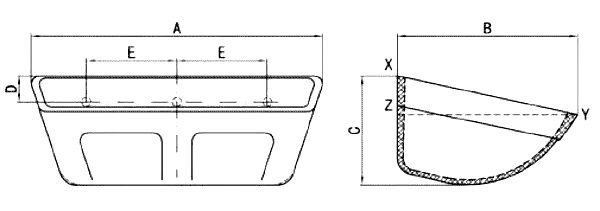

| Model | Bucket Dimension(mm) | Mounting Holes(mm) | Capacity(L) | ||||||
| Length A |
Proj. B |
Depth C |
From Top D |
Hole Centres E |
No. of Holes |
Hole diameter |
Usable Level (Z-Y)+10% |
Water Level (Z-Y) |
|
| E30 | 187 | 145 | 92 | 30 | 100 | 2 | 9 | ||
| E36 | 237 | 147 | 94 | 30 | 120 | 2 | 9 | 1.44 | 1.31 |
| E40 | 291 | 175 | 109 | 35 | 90 | 3 | 9 | 2.48 | 2.25 |
| E50 | 317 | 187 | 124 | 40 | 80 | 4 | 9 | 3.47 | 3.15 |
| E60 | 341 | 225 | 141 | 40 | 85 | 4 | 9 | 4.73 | 4.3 |
| Note: Installation holes and hole diameter can be customized. | |||||||||
- E type of bucket is not popular in the market, it is designed for a certain elevator.
- Have a thicker wall and a reinforced front lip which reduces the breakage and increases the elevator bucket lift use life.
- The most common applications is for the material grain, fertilizer, seeds, salt, chemicals, etc.
| Material | HDPE, Nylon |
|---|
