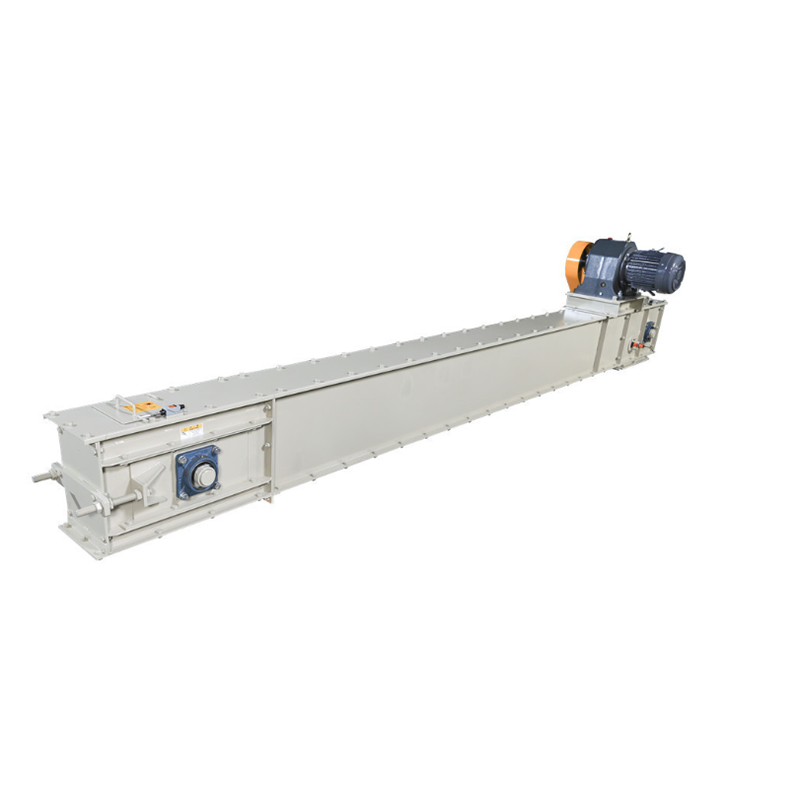

TGSS Series Submerged Drag Chain Conveyor
The drag chain conveyor has become a widely used equipment for bulk material transportation.Designed for granular and powdered materials across diverse industries, including grain processing, oilseed extraction, food production, feed manufacturing, and chemical processing.
Fast Delivery
Custom Orders
Expert Support
Details
Product Information
The TGSS series submerged drag chain conveyor is a horizontal continuous conveying equipment primarily used for transporting various raw materials, semi-finished grains, and small granular or powdered materials in industries such as grain warehouses, ports, grain processing plants, light industry, and brewing. It is not suitable for conveying materials with a bulk density exceeding 1 kg/L, as well as high-temperature, high-humidity, corrosive materials, or bulk materials.
The scrapers of this series are manufactured from engineering plastics, featuring advantages such as low noise, minimal wear, no material residue, and long service life. The structure is simple with excellent sealing performance and low energy consumption. It can be installed on the ground or suspended, supporting multi-point feeding and discharging.
| Model | Machine Slot Dia(mm) | Pitch(mm) | Scraper Spacing(mm) | Speed(m/s) | Capacity(m3/h) | Max Conveying Distance(m) |
|---|---|---|---|---|---|---|
| TGSS16 | 168 | 60-75 | 272 | 0.5 | 35 | 40 |
| TGSS20 | 208 | 60-75 | 272 | 0.5 | 45 | 40 |
| TGSS25 | 258 | 60-75 | 272 | 0.5 | 65 | 40 |
| TGSS32 | 320 | 100-125 | 200 | 0.5 | 100 | 40 |
Our company can also customize larger production capacity of drag chain conveyors, such as TGSS40, TGSS50, etc.
