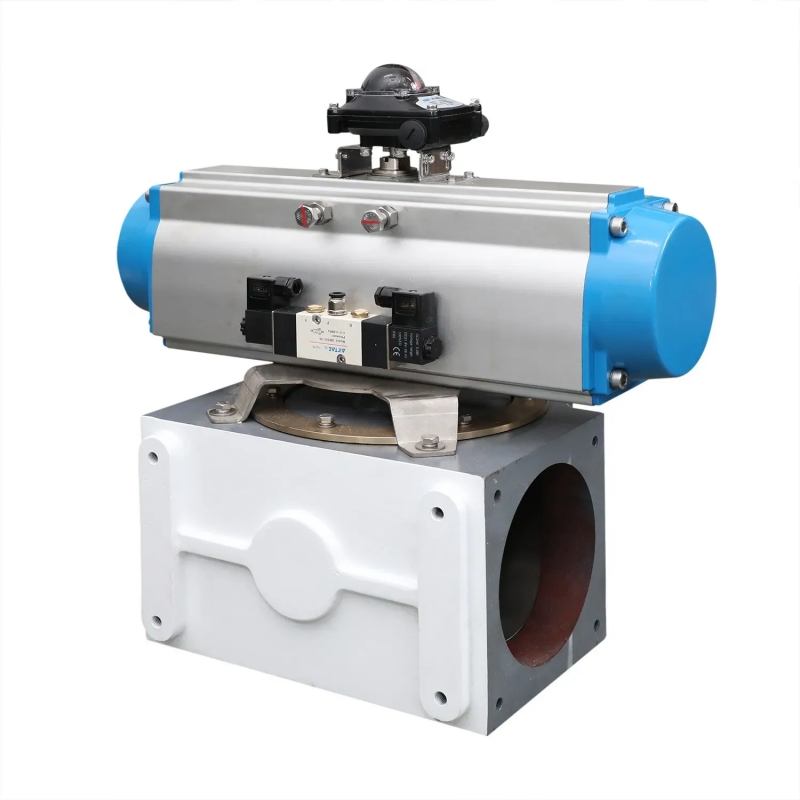

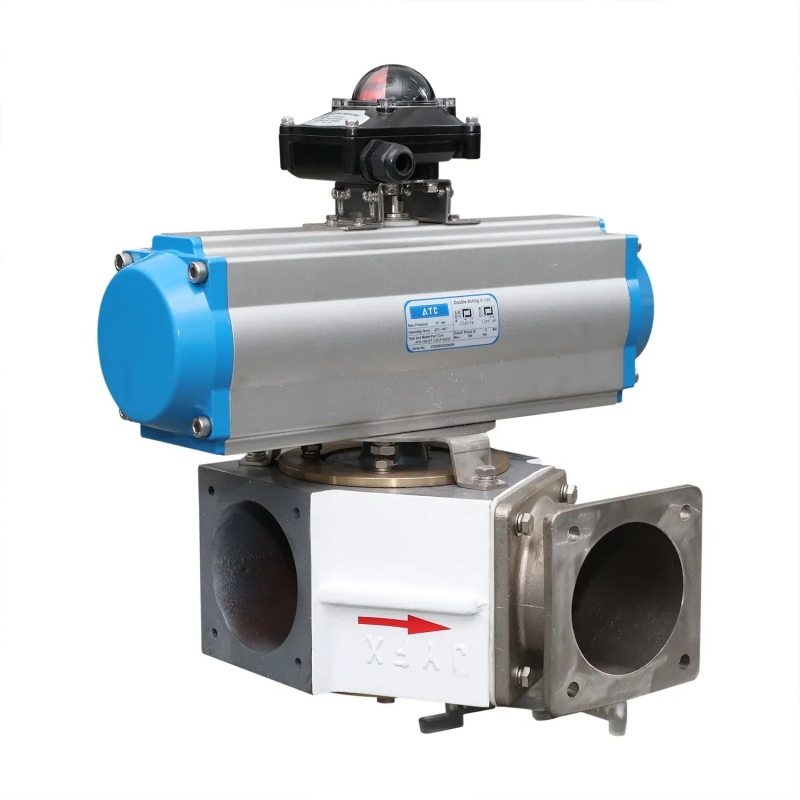

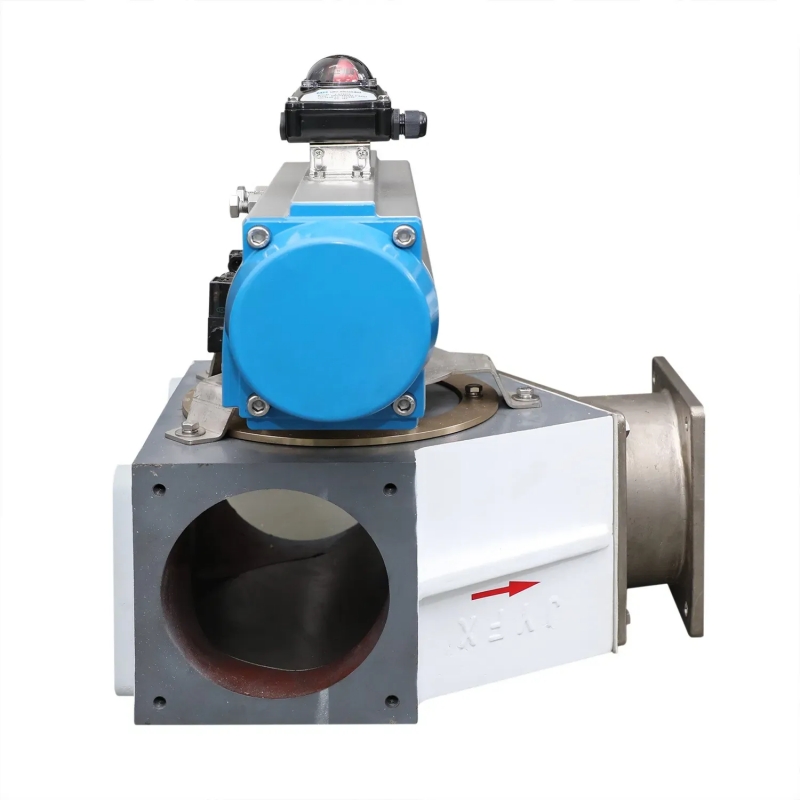

Pneumatic Two-Way Valve with Airtac Cylinder

Pneumatic Two-Way Valve with Airtac Cylinder is designed for pneumatic conveying systems to switch the flow of powder or fine granular materials between pipelines, enabling efficient redirection of materials under air pressure. Equipped with high-quality Airtac cylinders, it ensures smooth, stable and precise operation. The welded steel body and advanced machining provide durability and excellent sealing performance. Widely used in the flour, feed, grain and chemical industries, we offer customizable solutions to meet diverse industrial requirements, improving material handling efficiency and operational reliability.

Get a Quote
Fast Delivery
Custom Orders
Expert Support
Share this product:
Details

Product Information

Technical Parameters
• Nominal Diameter (DN): 80/100/125/150/200/250 mm
• Connection Mode: Flange connection (GB/DIN standard)
• Driving Mode: Airtac cylinder (SC/SU/ACQ series, bore 40-100 mm, stroke 80-150 mm)
• Working Pressure: 0.4~0.8 MPa (pneumatic system); 0.15~1.0 MPa (cylinder)
• Operating Temperature: -20℃~+80℃ (standard); ≤120℃ (high-temperature type)
• Leakage Rate: ≤0.01 g/m³, Protection Level: IP65
• Material: Valve body (Q235 carbon steel/304 stainless steel); Sealing (fluororubber/silicone rubber/wear-resistant polyurethane)
• Control Mode: 2-position 5-way solenoid valve (AC220V/DC24V), PLC remote control or on-site manual control
