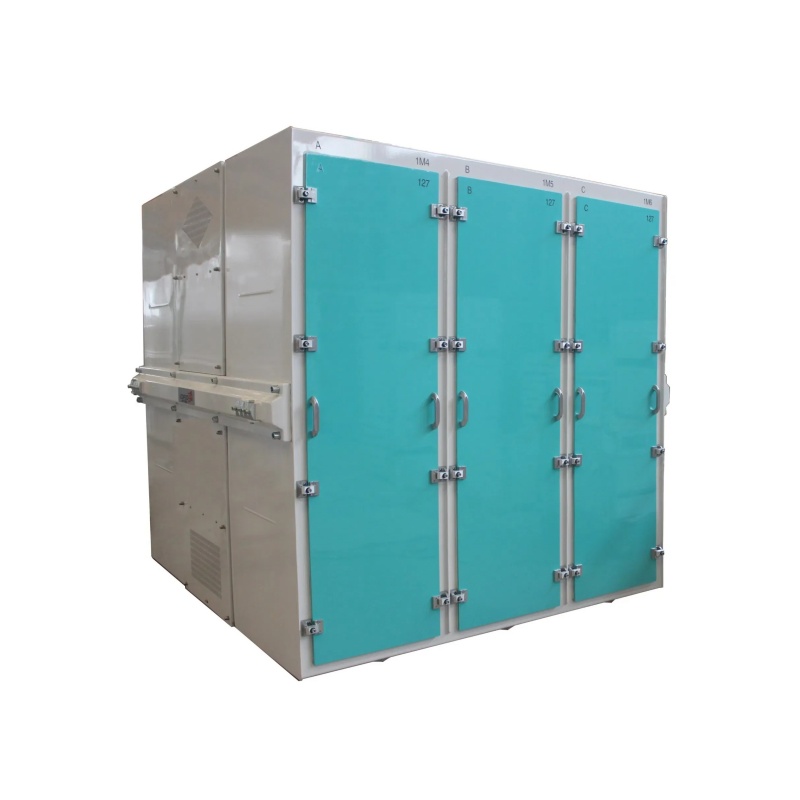

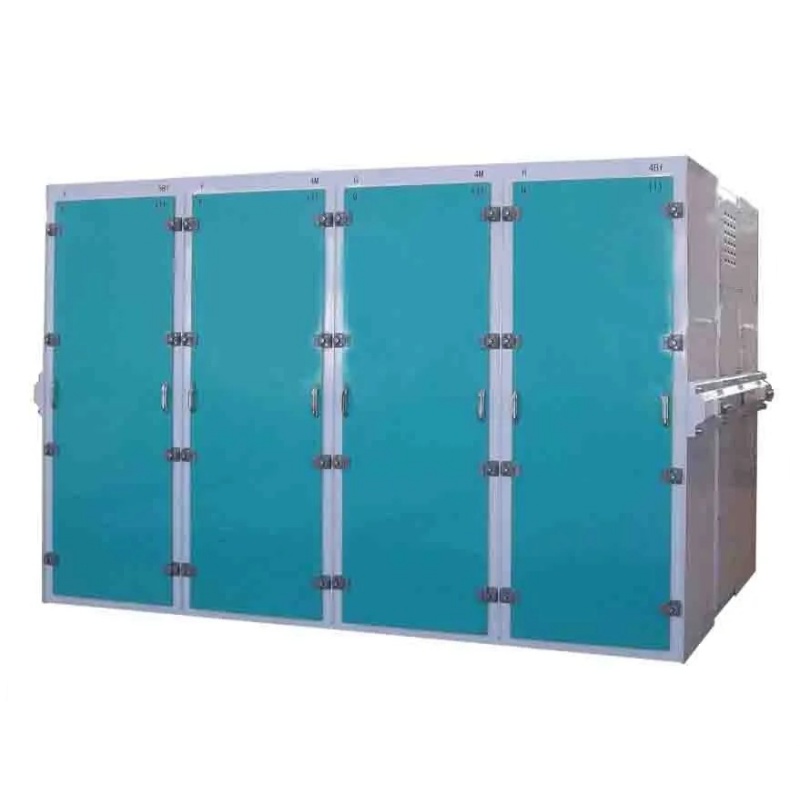

FSFG Plansifter

FSFG plansifter is mainly applied in sifting and grading for system material during milling process in milling industry. It is also used in other industries for granule materials.

Get a Quote

Fast Delivery

Custom Orders

Expert Support

Details

Product Information

Product Description

FSFG 640 Plansifter/FSFG 740 Plansifter

Performance parameter Model	Comp.	Sieves of Comp.	Sieve Area Square meter	Main Shaft Speed	Radius of Gyration mm	Effective Sieve Height	Top Sieve Height (mm)	Power(Kw)	Weight (Kg)
FSFG640x4x27	4	23~27	32.3	245	≤65	1900~1640	125	3	3200
FSFG640x6x27	6	23~27	45.4	245	≤65	1900~1640	125	4	4200
FSFG640x8x27	8	23~27	64.6	245	≤65	1900~1640	125	7.5	5600

Performance parameter Model	Comp.	Sieves of Comp.	Sieve Area Square meter	Main Shaft Speed	Radius of Gyration mm	Effective Sieve Height	Top Sieve Height (mm)	Power(Kw)	Weight (Kg)
FSFG740x4x27	4	23~27	41.3	245	≤65	1900~1640	125	5.5	3850
FSFG740x6x27	6	23~27	62.1	245	≤65	1900~1640	125	7.5	4800
FSFG7440x8x27	8	23~27	82.7	245	≤65	1900~1640	125	11	6000

A unique motor shaft seal prevents flour from entering the equipment.
The main shaft is fitted with a resilient support for the balance weight.
Imported self-aligning roller bearings are used for the drive shaft to ensure high concentricity and precision.
An adjustable clamping mechanism is installed at the top of the sieve, making operation simple and convenient.
The newly designed sieve box features an innovative structure that increases screening area and capacity.
The sieve door and channels are tightly sealed to prevent powder escape and leakage.
The plansifter frame is fabricated by bending and welding automotive-grade channel steel, offering high rigidity and excellent fatigue resistance.
The machine features a fully enclosed structure with the drive motor integrated inside, giving it an attractive appearance.
