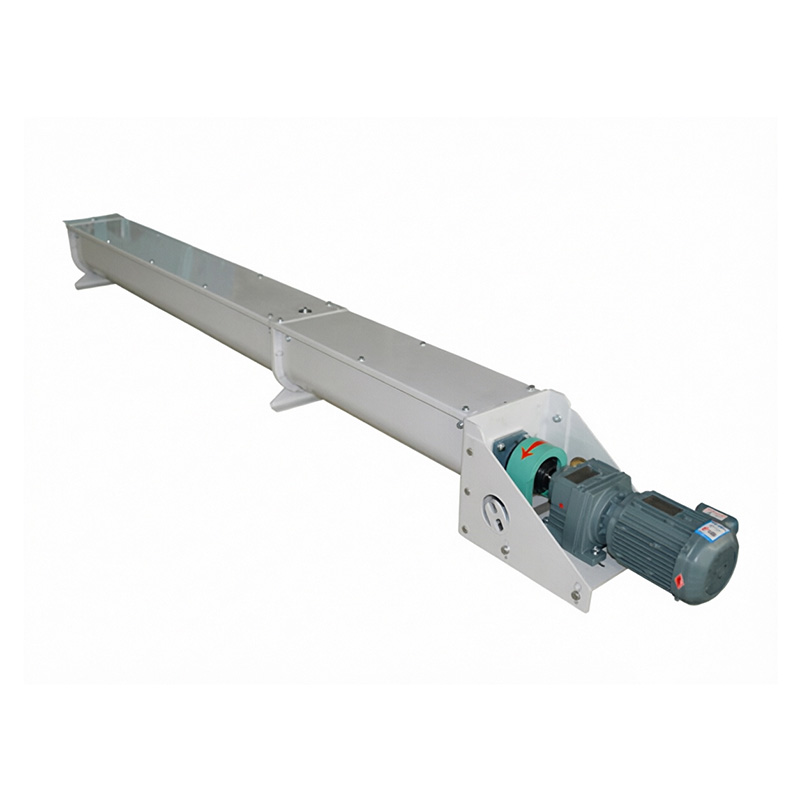

TLSS Series Screw Conveyor
The TLSS screw conveyor has a compact structure and reliable operation. Its sturdy design is adaptable to various bulk powdered materials, is easy to maintain, and is widely used in industries such as chemical, food, and building materials. Compared with traditional equipment, it offers higher efficiency and safety.
Fast Delivery
Custom Orders
Expert Support
Details
Product Information
1.TLSS Series Screw Conveyor Overview
The TLSS series screw conveyors are fixed-type sealed continuous conveying machinery that push materials forward through the rotation of spiral blades. They can convey various powdery, granular or small block materials horizontally or at a small angle (<15º). This machine adopts uniform diameter and uniform spacing or uniform diameter and variable spacing, allowing for multi-point feeding and multi-point discharging. The process layout is flexible and it is widely used in industries such as grains, oil, feed, and brewing for conveying powdery, granular, and loose materials.
2.Applications
Agriculture and Feed Industry: Wheat, corn, soybeans, rice, flour, bran, rice husks, feed pellets / powder.
Food Processing Industry Material Transportation: Flour, powdered sugar, starch, nuts, cookie crumbs, frozen food, fruit and vegetable particles.
Building Materials Industry Material Transportation: Cement, fly ash, sand and gravel, gypsum, dry powder mortar, slag.
Environmental Protection and Solid Waste Treatment Material Transportation: Sludge from sewage treatment plants, household garbage, kitchen waste, biomass, filter cake, screen residue.
3. Advantages
- Various materials available:
1. 304/316L stainless steel material: resistant to corrosion, non-corrosive, hygienic and non-toxic, resistant to acids and alkalis, and moisture. Suitable for food, pharmaceutical, chemical, salt, organic fertilizer and other materials that are corrosive and have hygiene requirements.
2. Ordinary carbon steel material: high cost performance, strong rigidity, good pressure resistance, wear-resistant and durable. Suitable for grain, building materials, sand and gravel, and general bulk material transportation. Low cost, economical and practical. - Compact structure : The entire machine is small in size, flexible in layout, and can be installed horizontally, inclinedly, or vertically.
- Stable operation and low failure rate: Simple structure, few components, durable and easy to maintain, low daily maintenance cost.
- Multiple points for feeding and discharging: Can set feeding and discharging ports at the middle, both ends, or anywhere, facilitating batching, material division, and pipeline connection.

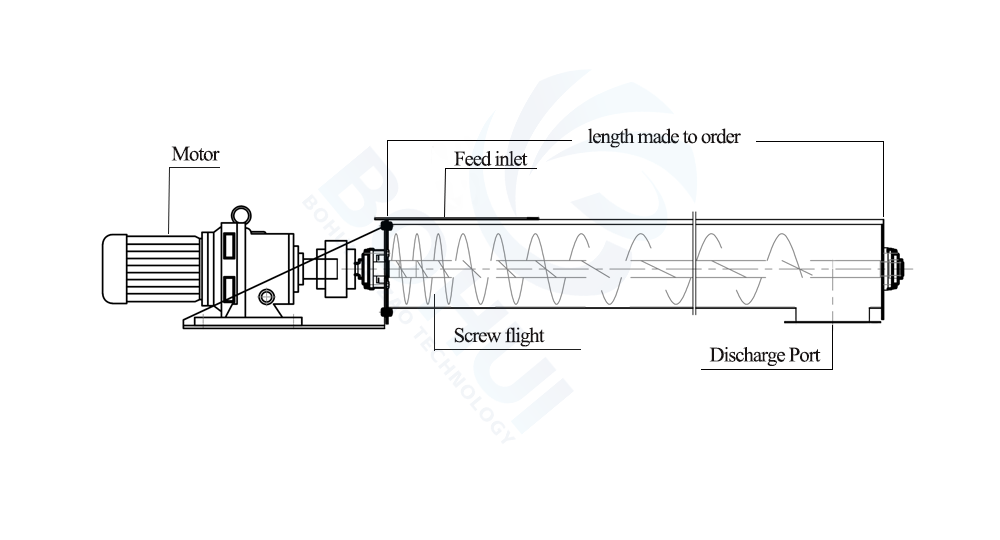

4.Main Structure and Dimensions
The TLSS Series screw conveyor main body consists of the head section, tail section, casing, screw rotor, intermediate hanger bearing and drive unit.
Main spare part: Screw flight
Main Technical Specifications |
|||||
| Model | Blade Diamiter D（mm） |
Capacity Q（m³/h） |
Blade Rotation Speed N（rpm） |
Blade Pitch S（mm） |
Blade Maximum Rotational Speed nmax(rpm) |
| TLSS16 | 160 | 5 | 85 | 120 | 162 |
| TLSS20 | 200 | 10 | 85 | 160 | 145 |
| TLSS25 | 250 | 20 | 85 | 200 | 130 |
| TLSS32 | 320 | 40 | 85 | 250 | 114 |
| TLSS40 | 400 | 80 | 85 | 320 | 102 |
5.Order Instructions
As the manufacturer of screw conveyors, we welcome you to choose our TLSS series screw conveyors.
When selecting the product, please clearly indicate the model, specification and quantity of the screw conveyor (the order length is the center distance between the import and export points) and send it to our email address [email protected]. We will reply to you within 24 hours!
