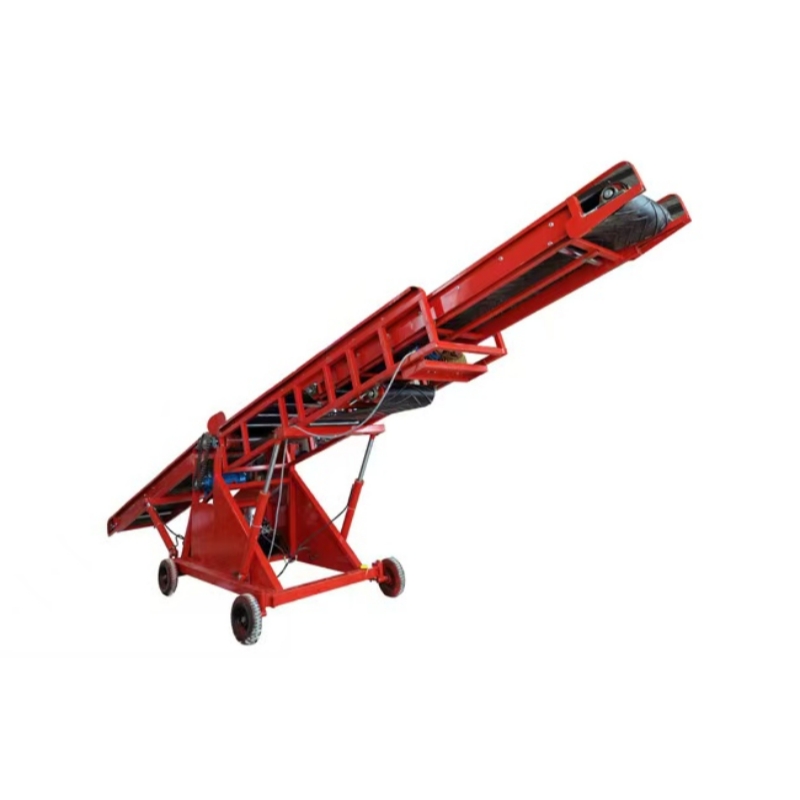

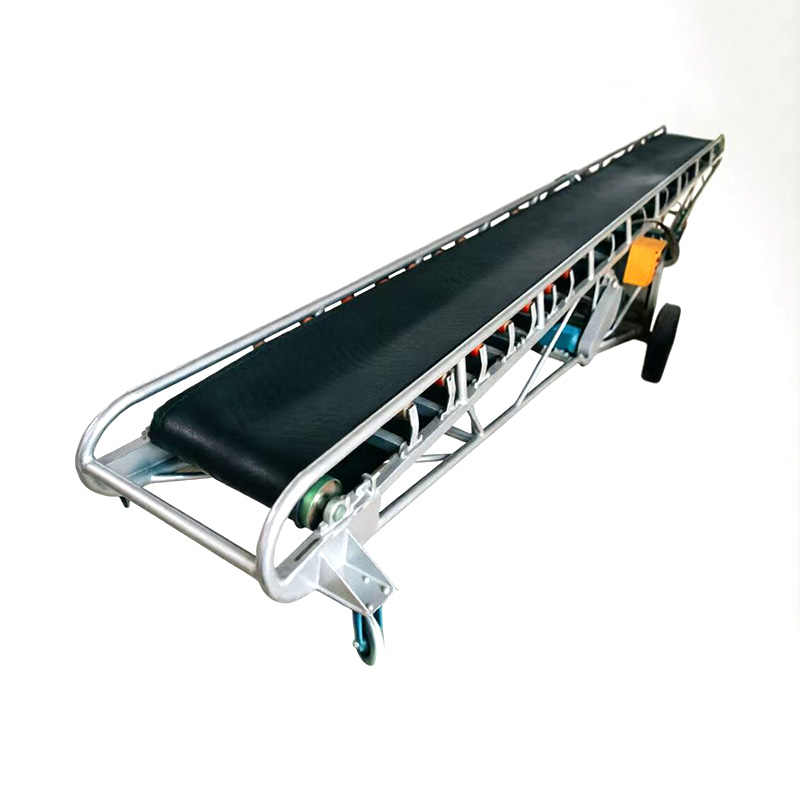

DY Series Portable Belt Conveyor
Rapid-Deployment Portable Conveyors & Radial Stackers
Our DY Series Portable Belt Conveyors provide the ultimate flexibility for stockpiling, site-to-site transfer, and barge loading. Designed for quick setup and easy transport, these units feature hydraulic height adjustment and a rugged, towable chassis. Whether for temporary construction projects or seasonal agricultural use, these conveyors eliminate the need for fixed infrastructure.
Fast Delivery
Custom Orders
Expert Support
Details
Product Information
The DY Series Portable Belt Conveyor allows you to bring the conveyor to the material, rather than the material to the conveyor. With its "plug-and-play" design, these units can be operational within minutes of arrival on site. These conveyors are ideal for operations requiring frequent layout changes or high-capacity stockpiling in remote locations.
Key Features & Engineering Excellence
- Maximum Portability: Equipped with heavy-duty tires and a fifth-wheel hitch for easy highway towing. Self-propelled track-mounted versions are also available for site-wide mobility.
- Hydraulic Radial Stockpiling: Integrated radial drive wheels allow the conveyor to pivot, creating massive, desegregated stockpiles without moving the feed point.
- Compact Folding Design: Features hydraulic folding head and tail sections to reduce transport length and meet road-legal shipping dimensions.
- Versatile Power Units: Choice of electric motor drives for sites with power access or onboard diesel-hydraulic power packs for complete independence.
Technical Specifications
- Conveying Lengths: 30ft to 150ft (Standard models).
- Height Adjustment: Telescoping hydraulic cylinders for variable discharge heights.
- Belting Options: Available with Chevron (cleated) belts for high-angle conveying up to 35°.
| Model | DY Series Portable Belt Conveyor |
|---|---|
| Belt Width | 500mm / 650mm / 800mm |
| Conveyor Length | 6m, 8m, 10m, 12m, 15m, 20m |
| Belt Speed | 1.25 m/s (common) |
| Capacity | 500: ≈ 90 t/h, 650: ≈ 160 t/h, 800: ≈ 240 t/h |
| Conveyance Dip Angle | Adjustable from 9° to 20° |
| Elevation Method | Manual screw jack / Hydraulic jack |
| Walking Style | Inflatable tire + steering wheel |
| Driving Form | Electric drum/motor + reducer |
| Power of Motor | 500: 2.2 ~ 3kw, 650: 3 ~ 4kw, 800: 4 ~ 5.5kw |
| Applicable Material | Grain sand and gravel, coal, fertilizer, cement, powder material, granular material |
| Working Environment | Suitable for both indoor and outdoor use, with rain covers available for outdoor operations. |
| Characteristic | Portable, adjustable height, no foundation required, ready-to-use |
For bulk material:
Material to be processed: _____
Bulk Density: _____t/m3
Handling capacity :_____t/h
Average size of feeding material:____mm
Max. size of feeding material: _____mm
Conveyor length:____m
Max. Lifting height: ______m
Conveying angle is adjustable or not:____
Working power supply: _____V ______HZ
