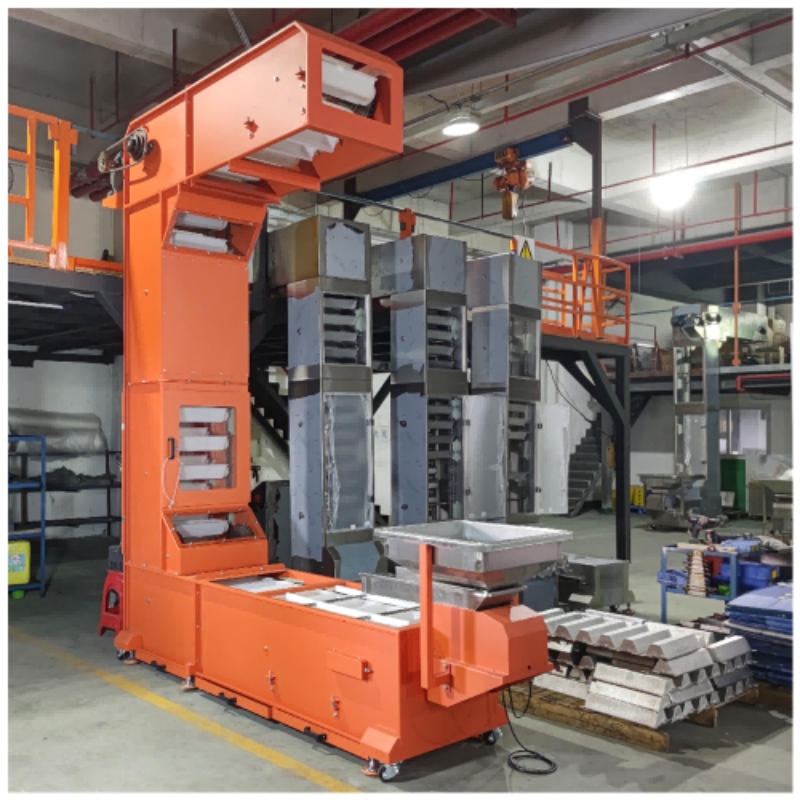

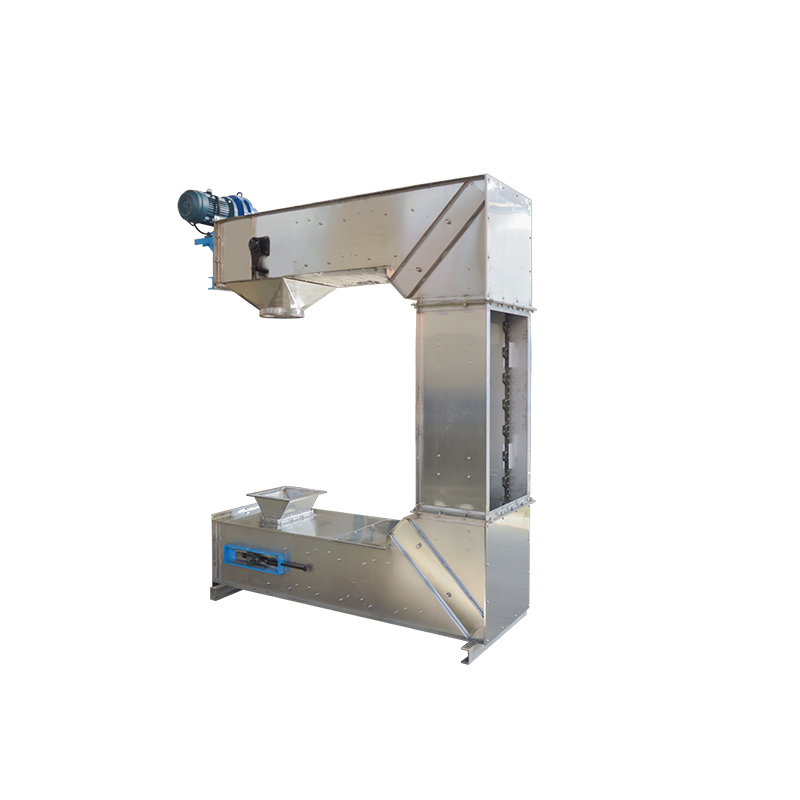

C Type Food-Grade Bucket Elevator specially for Food Industry
The C Type Bucket Elevator is designed for efficient and hygienic vertical and horizontal transfer of powders, granules, and fragile bulk materials. Operating with heat-treated steel chains, the buckets move in a continuous C-shaped path, ensuring gentle handling without product damage. The system minimizes dust, prevents material spillage, and allows precise discharge. It’s ideal for feed production, seed processing, coffee, cocoa, confectionery, snack, dried fruit, nut, fertilizer, and pharmaceutical plants that demand reliable and sanitary material flow.
Fast Delivery
Custom Orders
Expert Support
Details
Product Information
1.C Type Bucket Elevator Overview
The C type bucket elevator is a highly efficient vertical conveying equipment with a compact structure and smooth operation. The entire machine can be designed in a C-shaped or straight horizontal structure according to process requirements, enabling flexible combination of horizontal, vertical and horizontal conveying methods.
2.Applications
- Fresh agricultural products and fresh foods：Grains, seeds, crops, vegetables, frozen foods, peanuts, dried fruits
- Seasoning and snack foods：Salt, sugar, potato chips, candies
- Pharmaceutical and chemical products：Medicines, chemicals
3.Advantages
- The equipment is made of food-grade polypropylene (PP) buckets, which are formed in one step.
- It is safe, hygienic, and has an attractive appearance. It features the ability to withstand high and low temperatures (-5°C to 60°C), is not prone to deformation, and is easy to clean.
- During the conveying process, it is fully sealed and pollution-free, without causing damage to the materials, and operates stably and reliably.
- Through an intelligent control system, it can achieve automatic feeding and automatic shutdown, easily meeting the requirements of modern production lines for efficient, clean, and intelligent conveying. It is an ideal equipment for realizing continuous lifting operations.

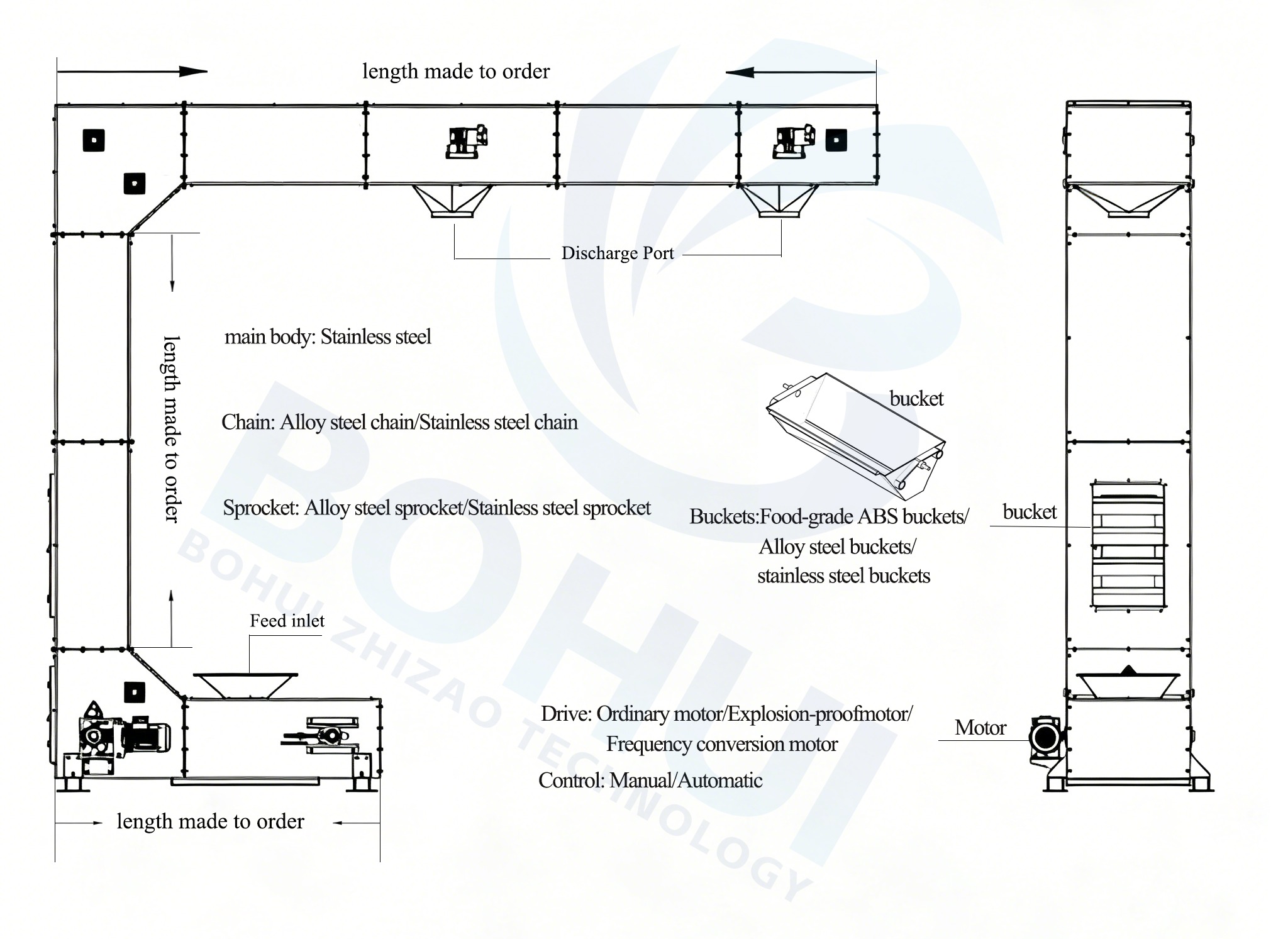

4.Optional configurations
（1）Material of the main body: 304 stainless steel, carbon steel.
（2）The material of the parts in contact with the materials is 304#, ABS or PP. The hopper can be optionally equipped with 304# stainless steel or ABS and PP.
（3）The capacity of the hopper is available in 1.0, 1.8, and 3.8 liters. The 1.0 and 1.8-liter models are mainly used for single outlets, while the 3.8-liter model is mostly used for multiple outlets.
There are single outlets or multiple discharge outlets.
（4）Customization can be done according to customer drawings and special material transportation requirements.
5.Technical Parameters
| Model | Single Bucket Capacity (L) | Conveying Capacity (m³/h) | Lifting Height (m) | Bucket Speed (m/s) | Motor Power (kW) | Applicable Material Particle Size (mm) |
| C-1L | 1 | 2~4 | 1.5~10 | 0.16~0.20 | 0.55~1.1 | ≤10 |
| C-3L | 3 | 6~10 | 1.5~15 | 0.16~0.20 | 0.75~2.2 | ≤20 |
| C-6L | 6 | 15~25 | 1.5~20 | 0.16~0.20 | 1.1~3.0 | ≤30 |
| C-10L | 10 | 25~42 | 1.5~25 | 0.16~0.20 | 2.2~5.5 | ≤40 |
| C-15L | 15 | 40~68 | 1.5~30 | 0.16~0.20 | 3.0~7.5 | ≤50 |
The C type bucket elevator can be customized.
All you need to do is provide the working conditions (material type, conveying volume, lifting height,extension length, material at the inlet and outlet), or provide your drawings and parameters, and send them to our email: [email protected].
We will reply to you within 24 hours.
