Manual & Pneumatic Slide Gate
Our slide gates, available in manual, pneumatic, electric, or hybrid types, provide precise control of powder, granules, and small bulk materials. Featuring welded steel construction, dovetail guide tracks, and adjustable opening speed, they ensure stable, reliable operation with superior sealing. Pneumatic gates use magnetic switch cylinders, electric gates use limit switches for safe control. Widely applied in flour, feed, grain, cement, and chemical plants, AGS slide gates enable orderly feeding, smooth flow regulation, and enhanced operational efficiency, with customizable designs to meet diverse industrial requirements.
Fast Delivery
Custom Orders
Expert Support
Details
Product Information

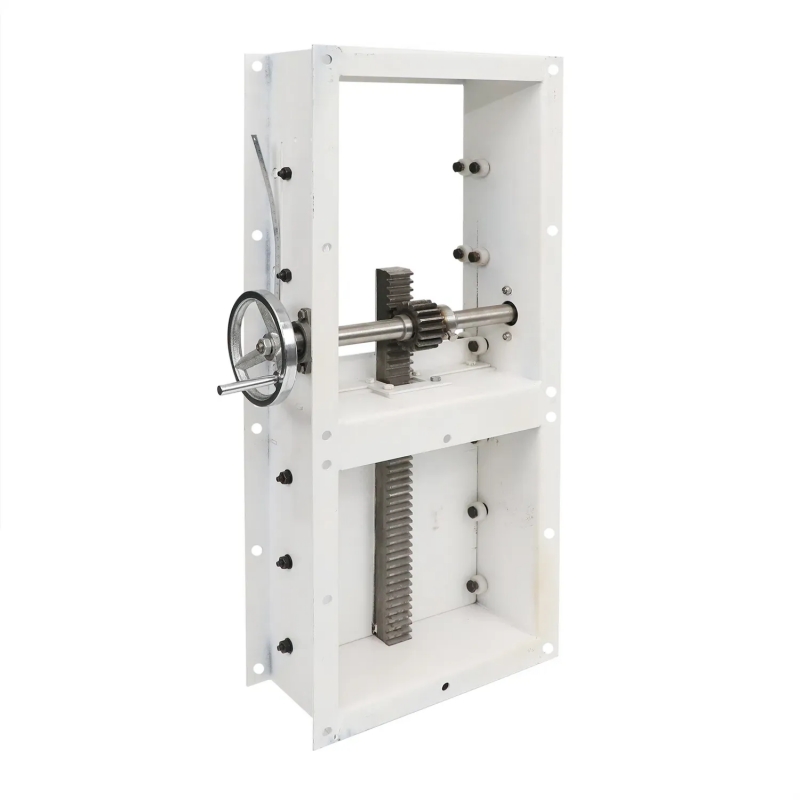

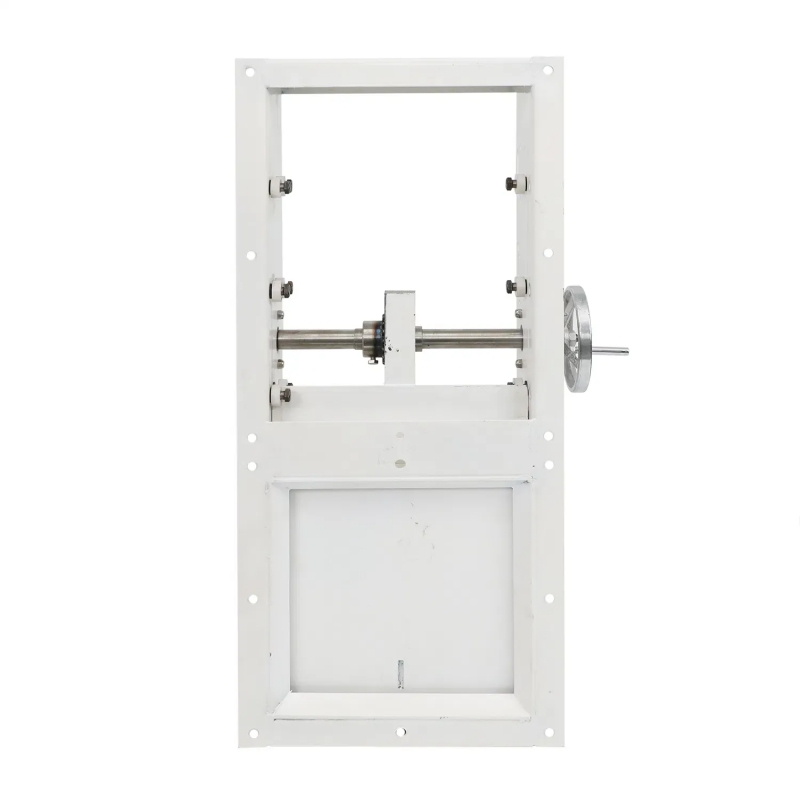

Manual Slide Gate
- Heavy duty construction, simple and reliable for years of operation.
- Easy installation, low maintenance.
- Spout area varied from 100x100 ~ 800x800 cm².
- Widely used for material feeding or discharging in feed, food, flour, chemical, mineral, metallurgy, cement industries
| Name | Model | Capacity(t/h) | Inlet and outlet dimensions( mm) |
| Manual Slide Gate | TZMS20x20 | 30 | 200x200 |
| TZMS25x25 | 50 | 250x250 | |
| TZMS30x30 | 100 | 300x300 | |
| TZMS35x35 | 200 | 350x350 | |
| TZMS40x40 | 300 | 400x400 | |
| TZMS45x45 | 400 | 450x450 | |
| TZMS50x50 | 500 | 500x500 | |
| TZMS60x60 | 700 | 600x600 | |
| TZMS70x70 | 800 | 700x700 | |
| TZMS80x80 | 1000 | 800x800 | |
| TZMS90x90 | 1200 | 900x900 | |
| TZMS100x100 | 1500 | 1000x1000 |

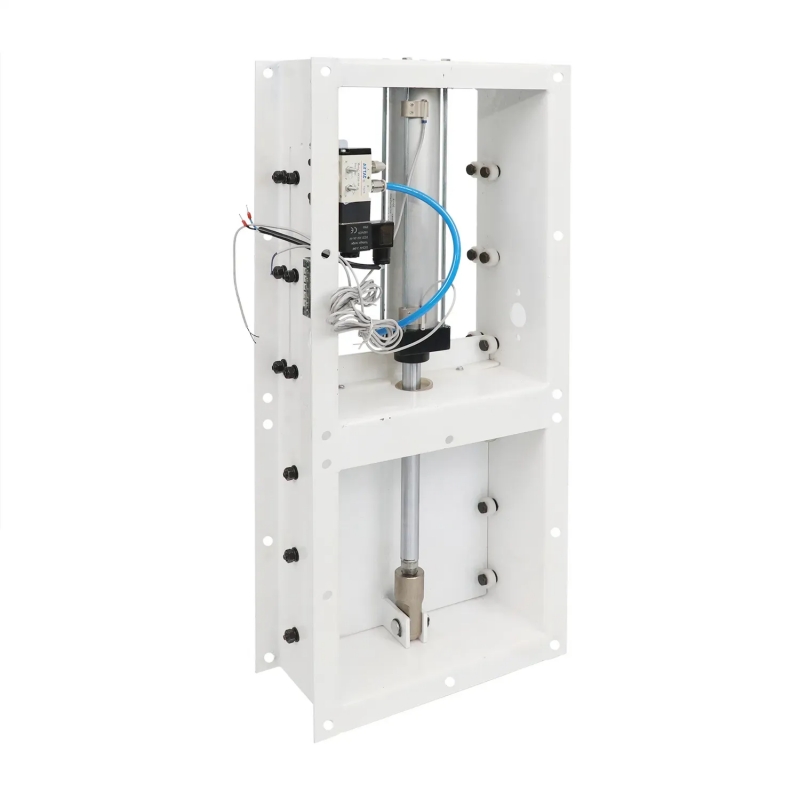

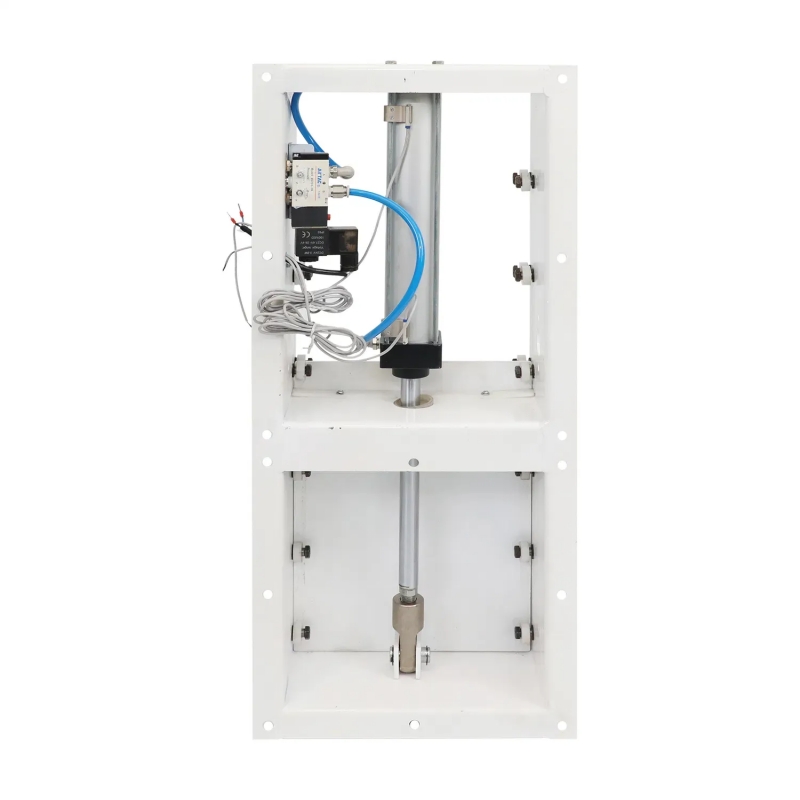

Pneumatic / Electric Slide Gate
| Name | Item | TZMQ30x30 | TZMQ35x35 | TZMQ40x40 | TZMQ50x50 |
| Pneumatic Slide Gate | Cylinder diameter (mm) | 50 | 50 | 50 | 63 |
| Pressure (Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | |
| Voltage (V) | 10-30VDC | 10-30VDC | 10-30VDC | 10-30VDC | |
| Theoretical thrust (N) | 1205,3096 | 1205,3096 | 1205,3096 | 1205,3096 | |
| Theoretical tensile(N) | 981 | 981 | 981 | 1550 | |
| Dimensions(mm) | 864x390x150 | 964x440x150 | 1064x490x150 | 1272x590x150 |
| Name | Model | Capacity (t/h) | Inlet and outlet dimensions(mm) | Power(KW) |
| Electric Slide Gate | TZMD30x30 | 100 | 300x300 | 0.37 |
| TZMD40x40 | 300 | 400x400 | 0.37 | |
| TZMD50x50 | 500 | 500x500 | 0.55 | |
| TZMD70x70 | 800 | 700x700 | 0.55 | |
| TZMD80x80 | 1000 | 800x800 | 0.75 | |
| TZMD100x100 | 1500 | 1000x1000 | 1.1 |
