Plastic Elevator Buckets

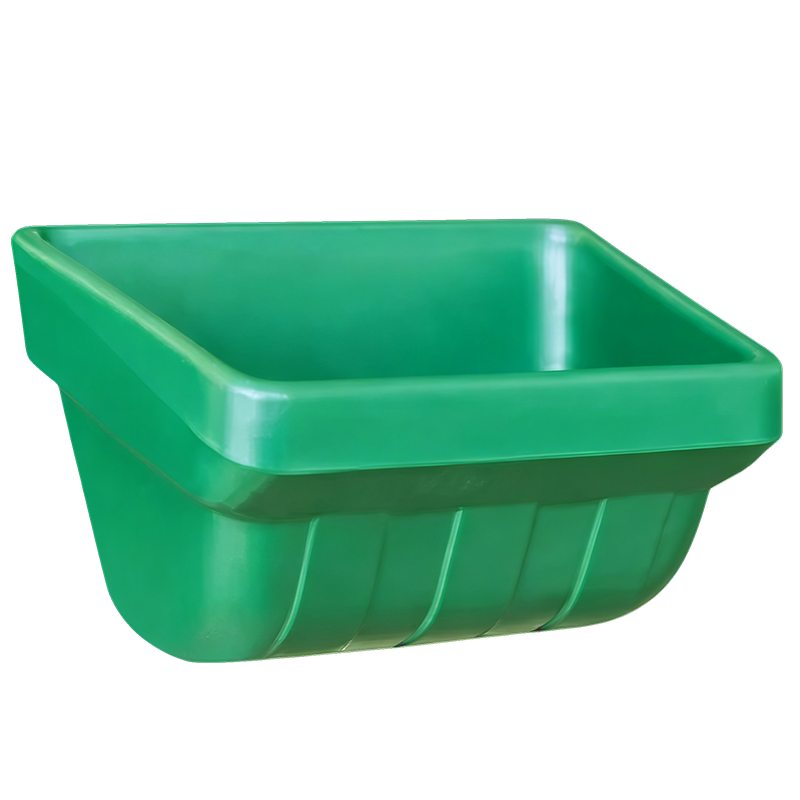

AA Industrial Elevator Bucket

This AA type of plastic HDPE or Nylon industrial bucket is designed to replace traditional steel metal buckets.
It is used for conveying materials of ore, sand, gravel, coal, fertiliser, clay, salt, limestone, cement etc. instead of grains, seeds and feeds.

Material	HDPE, Nylon

Fast Delivery

Custom Orders

Expert Support

Details

Product Information

AA type of plastic industrial bucket is designed to replace traditional steel buckets.

It is used for conveying materials of ore, sand, gravel, coal, fertilizer, clay, salt, limestone, cement etc.

Model	Bucket Dimension(mm)			Capacity(L)
Model	Length A	Proj. B	Depth C	Usable Level (Z-Y)+10%	Water Level (Z-Y)
AA4X3	103	78	78	0.23	0.21
AA5X4	134	105	105	0.63	0.57
AA6X4	160	105	105	0.75	0.68
AA7X4	184	105	105	0.92	0.84
AA7X5	180	130	134	1.39	1.26
AA8X5	206	130	134	1.62	1.47
AA9X5	232	130	134	1.83	1.66
AA9X6	238	156	156	2.39	2.17
AA10X6	264	156	156	2.67	2.43
AA11X6	290	156	156	2.95	2.68
AA12X6	320	165	160	3.39	3.08
AA12X7	314	180	180	4.4	4
AA14X7	365	180	180	5.38	4.89
AA14X8	365	206	206	6.38	5.8
AA16X8	416	206	206	7.33	6.66
AA18X8	460	206	206	8.43	7.66
AA18X10	460	258	258	12.1	11
AS13X7	340	195	200	2.28	2.17
AS18X7	470	175	185	4.4	4
Note: Installation holes and hole diameter can be customized.
