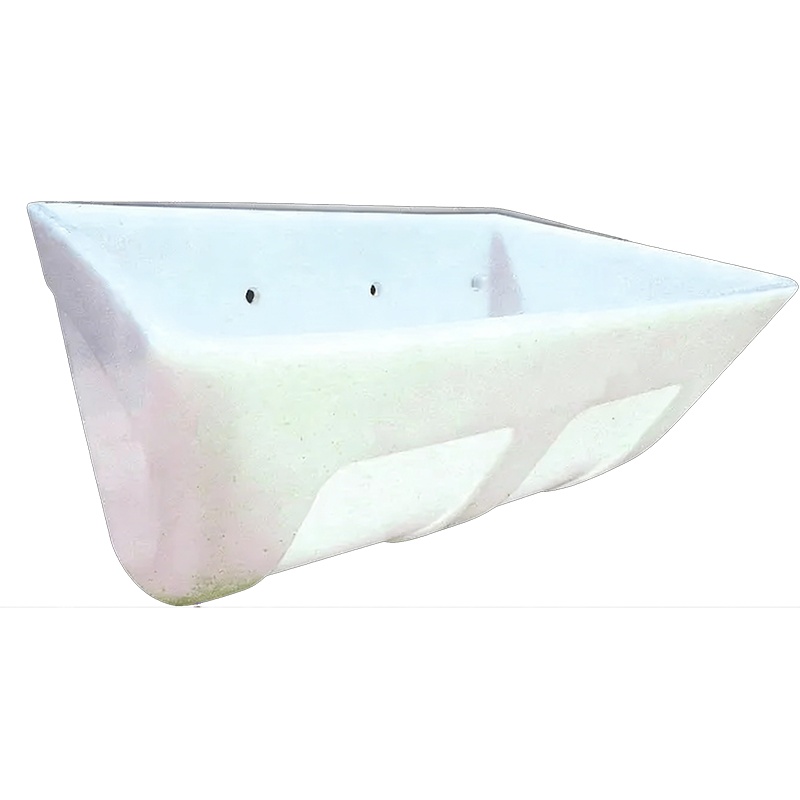

DS type of plastic elevator bucket is a deep bottom elevator bucket.

This bucket is widely used in North America like Tapco and China. Over the years, more and more clients have also chosen the DQ series. It depends.

It is suitable for gravity discharge and mixed discharge;
A, B and C side shown in the below table is for HDPE material. For the different shrinkage of different materials Nylon and PU elevator bucket size is approximately increased by 2%;
Recommend using (Z-Y)+10% capacity data as your engineering design use.

Model	Bucket Dimension(mm)			Mounting Holes(mm)				Capacity(L)

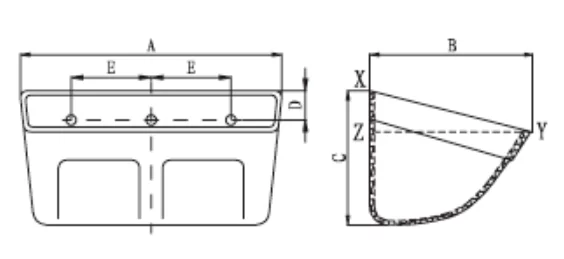

Model	Length A	Proj. B	Depth C	From Top D	Hole Centres E	No. of Holes	Hole diameter	Total Level (X-Y)	Usable Level (Z-Y)+10%	Water Level (Z-Y)
DS0705	78	55	71	20	40	2	7	0.16	0.07	0.06
DS0807	90	75	64	20	50	2	7	0.25	0.15	0.14
DS1009	104	90	82	24	50	2	7	0.4	0.29	0.26
DS1109	116	92	85	25	60	2	7	0.42	0.3	0.27
DS1307	130	75	80	25	60	2	7	0.4	0.24	0.22
DS1309	130	90	80	25	60	2	7	0.5	0.25	0.23
DS1311	134	115	94	35	60	2	7	0.75	0.56	0.51
DS1411	145	110	96	35	60	2	7	0.75	0.59	0.54
DS1508	152	84	78	18	76	2	7	0.47	0.35	0.32
DS1511	150	115	94	35	80	2	7	1.07	0.9	0.8
DS1612	165	124	110	40	90	2	7	1.1	0.81	0.74
DS1613	164	139	124	40	90	2	9	1.4	1.12	1.02
DS1812	188	125	115	40	120	2	9	1.2	0.73	0.66
DS1814	188	140	127	40	120	2	9	1.7	1.32	1.2
DS2010	202	102	98	20	120	2	7	1	0.83	0.75
DS2014	206	140	117	40	120	2	9	1.65	1.05	0.95
DS2312	235	125	118	40	120	2	9	1.7	1.32	1.2
DS2314	237	142	127	40	85	3	9	2.1	1.6	1.45
DS2316	236	164	148	45	85	3	9	2.88	1.85	1.68
DS2511	250	114	115	25	125	2	7	1.5	0.99	0.9
DS2616	268	162	145	45	90	3	9	3.15	2.3	2.09
DS2812	280	126	116	40	100	3	9	2	1.63	1.48
DS2814	285	140	127	40	100	3	9	3	2.2	2
DS2816	282	168	149	45	100	3	9	3.6	2.75	2.5
DS2823	289	230	190	55	100	3	9	6.7	4.85	4.41
DS2916	297	170	155	45	110	3	9	4	2.77	2.52
DS2919	295	197	178	50	75	4	9	5.8	4.72	4.29
DS3114	312	147	146	45	80	4	9	3.26	2.3	2.09
DS3116	313	168	154	45	85	4	9	4.4	3.09	2.81
DS3118	312	190	170	45	85	4	9	4.8	3.47	3.15
DS3121	316	218	195	55	85	4	9	7.6	6.2	5.56
DS3518	358	190	174	50	95	4	9	5.8	4.5	4.1
DS3621	365	220	200	55	95	4	9	8.5	7.1	6.45
DS4118	419	190	178	50	85	5	9	8.4	5.64	5.13
DS4121	418	222	200	55	85	5	9	10.4	8.77	7.97
DS4621	460	220	200	55	95	5	9	12	9.8	8.9
DS4822	480	223	210	68	76	6	11	13	9.24	8.4
DS5121	519	228	203	55	90	6	11	13.11	11.66	10.6
Note: Installation holes and hole diameter can be customized.
