Steel Elevator Buckets

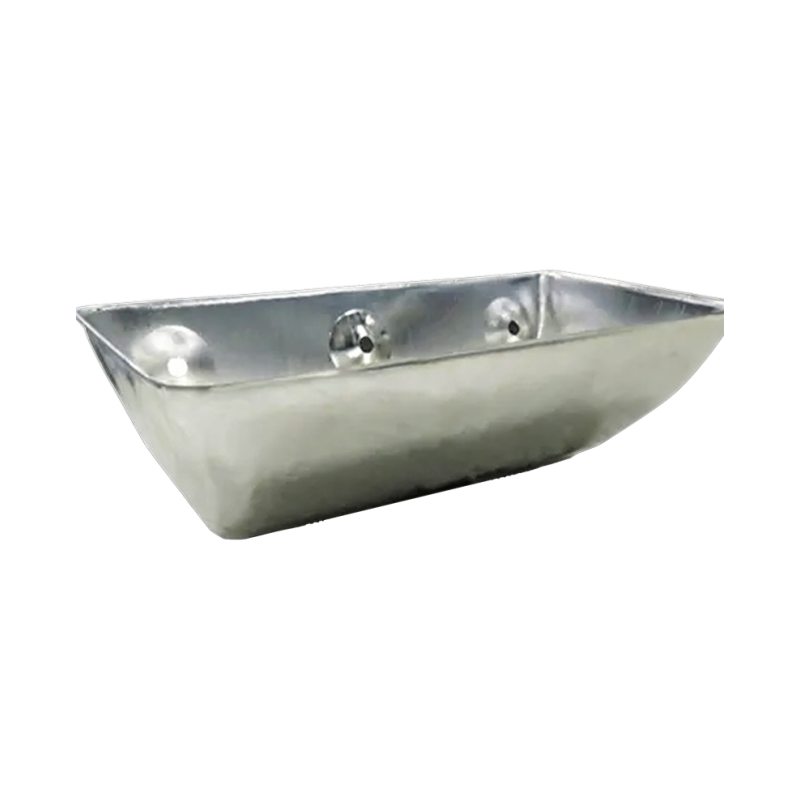

DQ Steel Bucket (Shallow Bottom)

Our carbon steel bucket and stainless steel bucket are all made by the stamping process, it is seamless of one whole unit. We have two types of whole stamping steel buckets, one shallow bottom steel bucket, DQ type, and another DS type, deep bottom steel bucket. It is a DQ type.
Use for the high-speed centrifugal material discharging;
Carbon steel and stainless steel are two materials types for your choice.

Material	Carbon Steel, Stainless Steel

Get a Quote

Fast Delivery

Custom Orders

Expert Support

Details

Product Information

We have two types of whole stamping steel buckets, one shallow bottom steel bucket, DQ type, and another DS type, deep bottom steel bucket.

The whole stamping means no welding mark. Seamless, the whole bucket is made of one unit.

Our whole stamping steel bucket use high-quality steel and a deep-drawn manufacturing process. This bucket has more strength and abrasion resistance ability than the welding type.

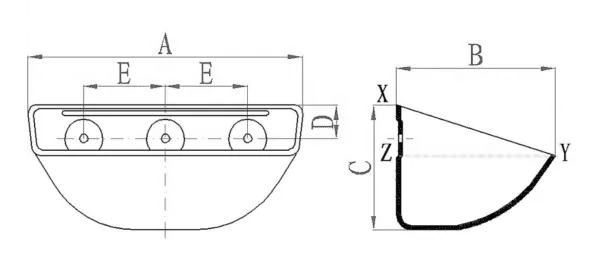

Model	Bucket Dimension(mm)			Mounting Holes(mm)			Thickness（mm)	Capacity(L)
Model	Length A	Proj. B	Depth C	Hole Centres E	No. of Holes	Hole diameter	Thickness（mm)	Total Level (X-Y)
DQ0807	90	75	48	50	2	7	1.5	0.2
DQ1009	100	90	58	50	2	7	1.5	0.29
DQ1109	110	90	60	60	2	7	1.5	0.31
DQ1309	130	90	58	60	2	7	1.5	0.4
DQ1311	139	112	60	60	2	7	1.5	0.62
DQ1312	138	125	60	60	2	7	1.5	0.68
DQ1409	140	90	58	60	2	7	1.5	0.48
DQ1411	140	112	60	60	2	7	1.5	0.63
DQ1511	155	113	62	80	2	7	1.5	0.69
DQ1612	166	125	65	90	2	7	1.5	0.88
DQ1613	155	130	68	90	2	7	1.5	1.03
DQ1813	188	130	80	90	2	9	1.5	1.09
DQ1814	183	140	98	90	2	9	1.5	1.23
DQ1814A	183	142	95	90	2	9	2	1.2
DQ1914	190	142	88	90	2	9	1.5	1.36
DQ2014	203	142	90	90	2	9	1.5	1.64
DQ2313	239	130	75	120	2	9	1.5	1.52
DQ2314	233	142	95	120	2	9	1.5	1.75
DQ2314A	233	143	95	120	2	9	2	1.72
DQ2316	236	162	100	120	2	9	1.5	1.52
DQ2316A	238	162	100	120	2	9	2	2.2
DQ2417	240	170	109	120	2	9	2	2.32
DQ2614	265	140	88	120	2	9	2	2.32
DQ2616	260	162	90	120	2	9	2	1.63
DQ2813	288	130	85	100	3	9	1.5	1.88
DQ2814	283	142	85	100	3	9	1.5	1.66
DQ2814A	282	146	95	100	3	9	2	1.9
DQ2816	286	168	115	100	3	9	2	2.77
DQ2817	288	178	100	100	3	9	2	3.18
DQ2818	290	182	115	100	3	9	2	3.42
DQ2824	285	240	148	100	3	9	2	5.09
DQ2916	290	168	115	100	3	9	2	2.86
DQ3016	308	162	100	100	3	9	2	2.94
DQ3018	305	183	125	100	3	9	2	4.26
DQ3021	310	215	142	100	3	9	2	5.31
DQ3114	305	143	82	100	3	9	2	1.89
DQ3118	315	190	110	75	4	9	2	3.53
DQ3121	315	220	130	75	4	9	2	5.15
DQ3216	320	160	100	75	4	9	2	3.28
DQ3321	336	212	135	80	4	9	2	4.15
DQ3325	340	255	130	80	4	9	2	9.41
DQ3518	358	180	110	90	4	9	2	3.4
DQ3621	365	220	125	90	4	9	2	6.61
DQ3823	380	230	125	90	4	9	2	5.93
DQ4118	415	190	115	95	4	11	2	5.73
DQ4121	415	220	125	95	4	11	2	7.07
DQ4216	420	160	110	90	4	11	2	6.08
DQ4423	445	233	148	90	5	11	2.5	7.02
DQ4621	460	220	125	95	5	11	2.5	8.38
DQ4723	475	233	148	95	5	11	2.5	7.49
DQ4626	460	260	195	95	5	11	2.5	7.58
DQ5121	518	220	125	95	5	11	2.5	9.6
DQ5626	560	260	153	110	5	11	2.5	11.34
