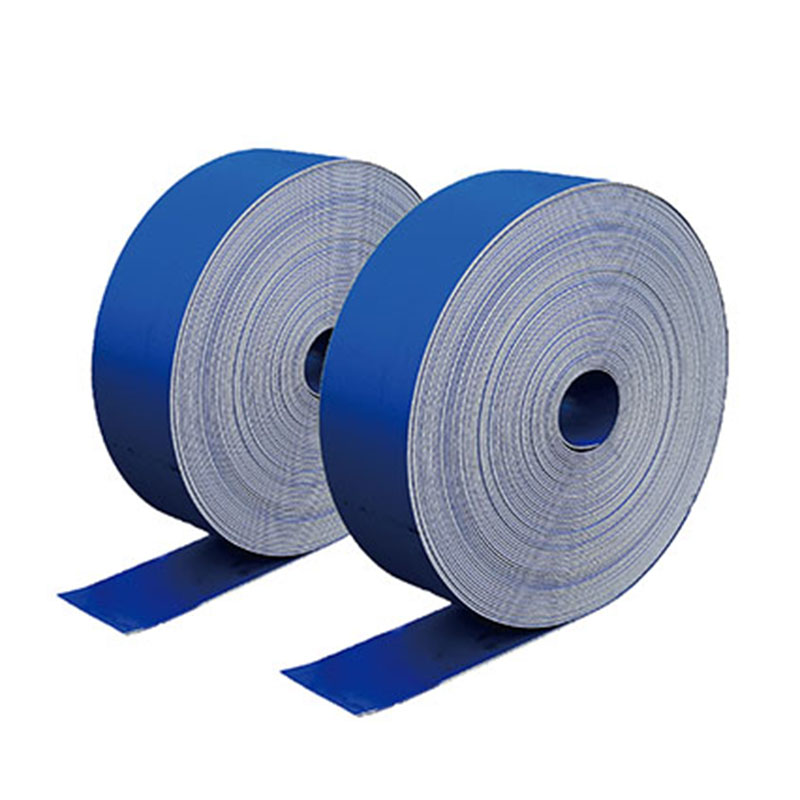

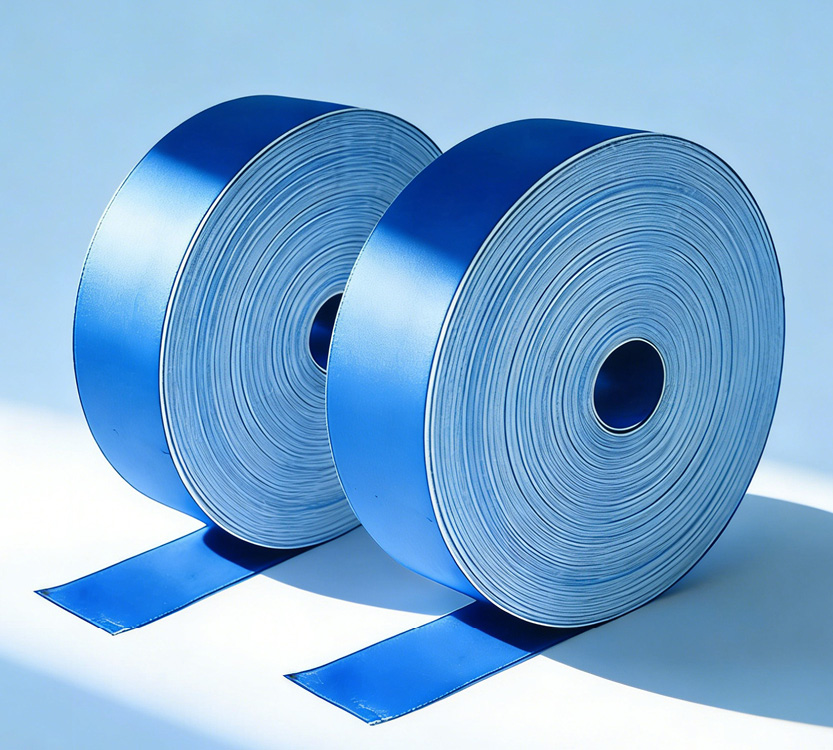

PVC Solid Woven Elevator Belt
PVC Solid Woven Elevator Belt is an engineered component for bulk material conveying systems, designed for reliable operation, wear resistance, and easy integration in industrial applications.
Fast Delivery
Custom Orders
Expert Support
Details
Product Information

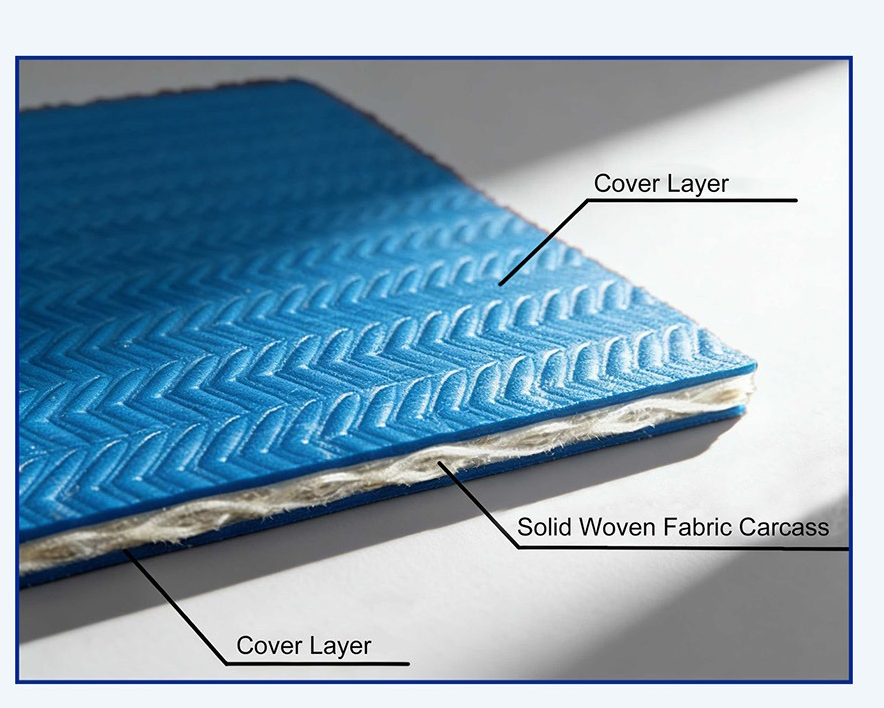

The PVC core tape uses a composite of polyester fiber and cotton thread as the skeleton material, which is resistant to oil, corrosion, wear, moisture, high tensile strength, low elongation, and high puncture and tear resistance.
The surface pattern design of the belt prevents the belt from slipping, and the overall belt core design has no multi-layer interlayer peeling phenomenon. More suitable for use in industries such as feed, rice, oil, etc.
| Model | Thickness（mm) | Rated Longitudinal Tensile Strength | Constant Load Elongation（%） | Minimum Head Pulley Diameter（mm) | Color | |
| Lbs/PIW | N/mm | |||||
| PVC400 | 4.2 | 180 | 300 | 0.6 | 150 | Surface: Blue Inner: White |
| PVC600 | 5.5 | 320 | 600 | 0.6 | 200 | Surface: Blue Inner: White |
| PVC800 | 7.2 | 480 | 800 | 0.7 | 300 | Surface: Blue Inner: White |
| PVC1000 | 8.5 | 600 | 1100 | 0.7 | 400 | Surface: Blue Inner: White |
PVC Solid Woven Elevator Belt is an engineered component for bulk material conveying systems, designed for reliable operation, wear resistance, and easy integration in industrial applications.
