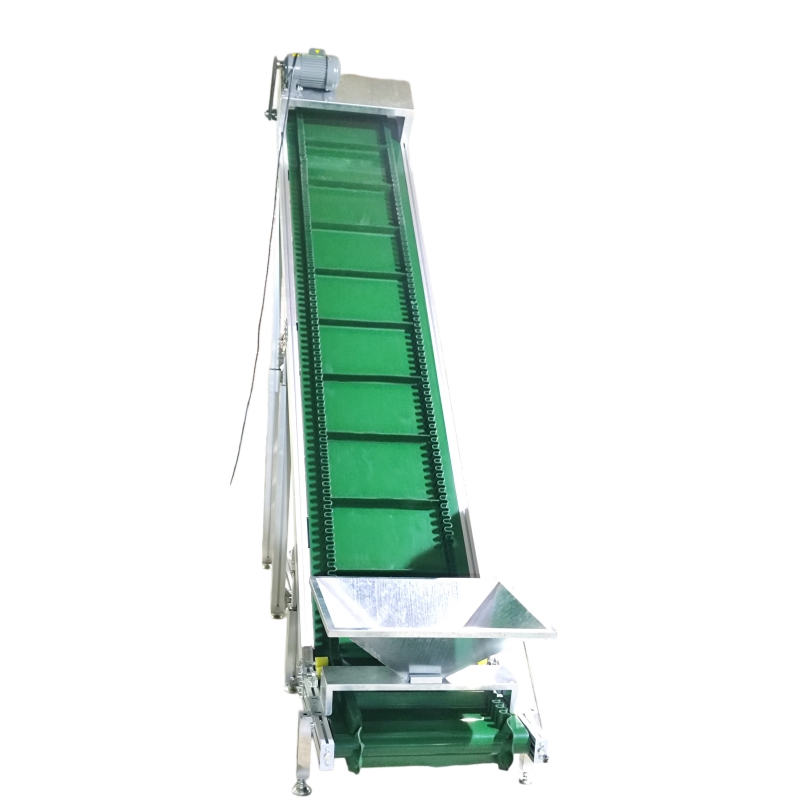

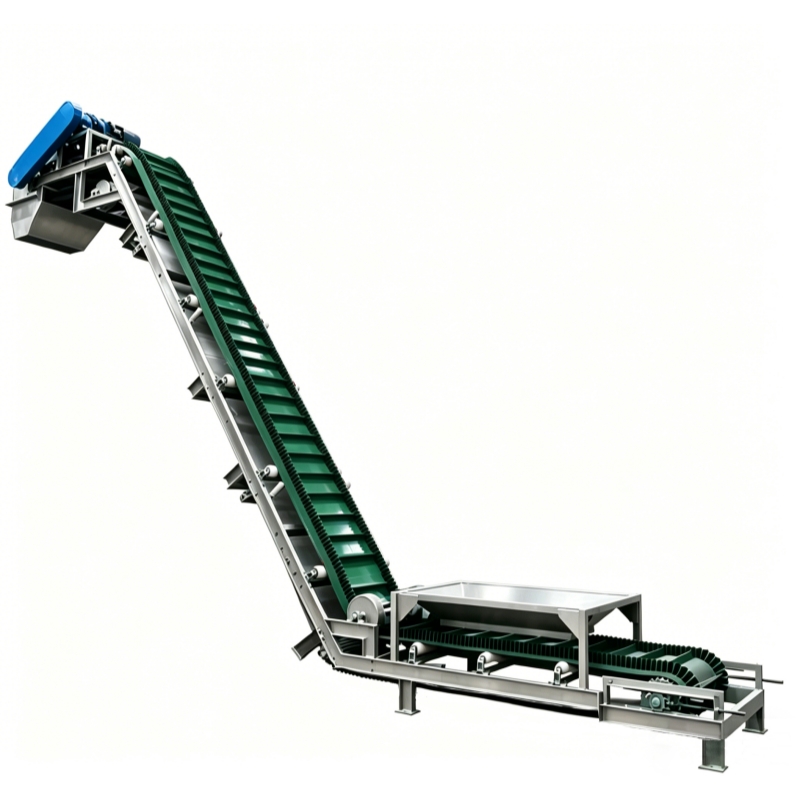

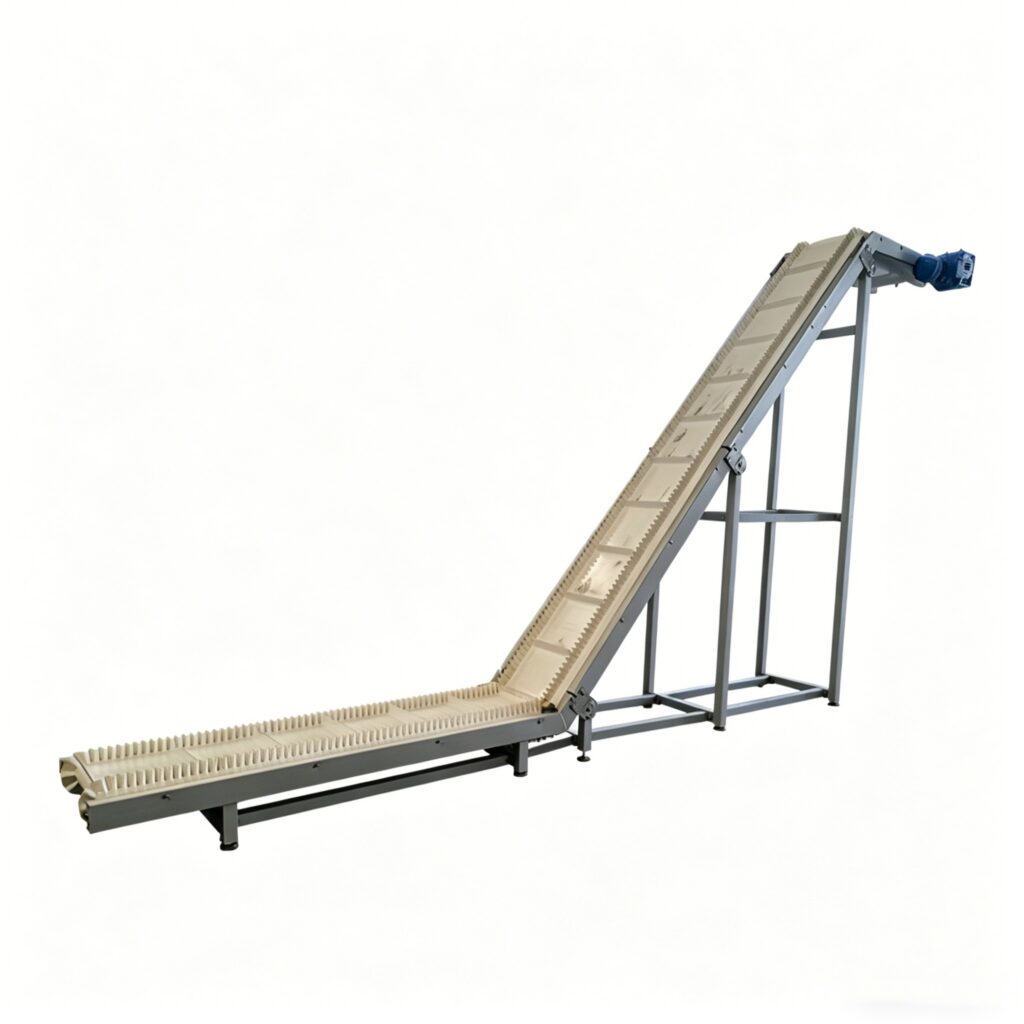

Large Angle Belt Conveyor
The Large Angle Belt Conveyor is a specialized equipment designed for the lifting and continuous transportation of food particles, blocks or small packages of materials at a large inclination angle (usually within the range of 30 to 90 degrees). By using a conveyor belt with sidewall guards and cross partitions, the risk of material sliding or reflux during the inclined transportation can be prevented, thus achieving reliable and efficient material feeding.
Fast Delivery
Custom Orders
Expert Support
Details
Product Information

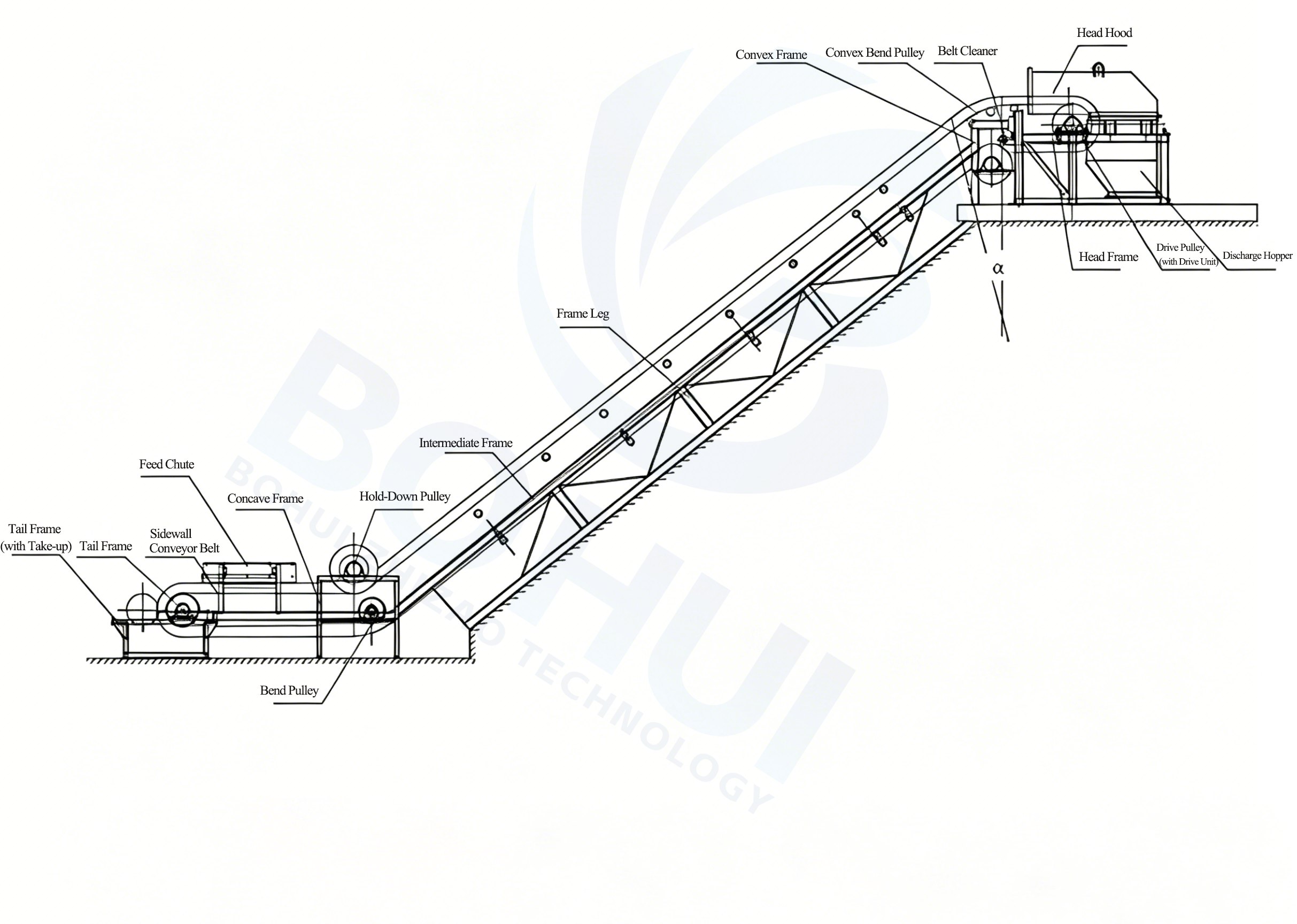

1.Large Angle Belt Conveyor Overview
The Large Angle Belt Conveyor is a specialized equipment designed for the lifting and continuous transportation of food particles, blocks or small packages of materials at a large inclination angle (usually within the range of 30 to 90 degrees). By using a conveyor belt with sidewall guards and cross partitions, the risk of material sliding or reflux during the inclined transportation can be prevented, thus achieving reliable and efficient material feeding.
2.Applications
- Fresh agricultural products and fresh foods：Grains, seeds, crops, vegetables, frozen foods, peanuts, dried fruits
- Seasoning and snack foods：Salt, sugar, potato chips, candies
- Pharmaceutical and chemical products：Medicines, chemicals
3.Advantages
- The chain plate is molded from food-grade plastic polypropylene (PP), and the conveying belt is extruded from food-grade materials such as PU or PVC.
- The design of the middle baffle and the side baffles can achieve the functions of lifting the materials and preventing side leakage of the materials.
- The large angle belt conveyor is easy to assemble and disassemble, and the conveyor belt can be directly cleaned with water for simple maintenance.
- It can perfectly realize continuous or intermittent conveying and can be matched with other feeding equipment.
- It has the advantages of large conveying capacity and high lifting degree.
4.Optional configurations
1. Main body material: 304 stainless steel, carbon steel.
2. The parts in contact with the materials are made of 304#, the belt material is PU, PVC belt or PP, pom, pe chain plate.
3. Standard type chain plates have a total width of 400mm, with a wider edge of 280mm, a height of 100mm for the partition, a height of 75mm for the partition board, and a spacing of 254mm. There are various specifications of chain plates.
4. Customization can be done according to customer drawings and special material conveying requirements.
5.Technical Parameters
Specifications |
||
| Item | Standard Parameter | Remarks |
| Frame/Shell Material | 304 Food-grade Stainless Steel | Corrosion resistant, easy to clean, compliant with sanitary requirements for food, pharmaceutical and fine chemical industries |
| Belt Type | Green PVC/PU Sidewall Cleated Belt | With corrugated sidewalls and transverse cleats, preventing material sliding and spilling |
| Standard Belt Width B | 300 / 400 / 500 / 600 mm | Conventional common sizes: 400/500 mm |
| Sidewall Height | 30~80 mm | Customizable up to 100~150 mm |
| Transverse Cleat Spacing | 150~300 mm | Denser spacing for granular/lumpy materials; close spacing for powder materials |
| Conveying Inclination Angle | 30°~75° | Maximum up to 90° vertical lifting |
| Single-unit Lifting Height | 1~6 m | Customizable for extended height as required |
| Overall Machine Length | 1.5~12 m | Non-standard customized on demand |
Operation & Power Parameters |
||
| Item | Parameter Range | Description |
| Belt Speed | 0.5~2.0 m/s | Variable frequency stepless speed regulation; recommended conventional speed: 1.0~1.5 m/s |
| Drive Motor Power | 0.75~3.0 kW | 1.1/1.5 kW for light duty; 2.2/3 kW for heavy duty |
| Speed Regulation Mode | Fixed speed / Variable frequency speed regulation | Precisely control feeding rhythm |
| Power Supply Specification | 380V 50Hz Three-phase (220V Single-phase optional) | General standard for workshop use |

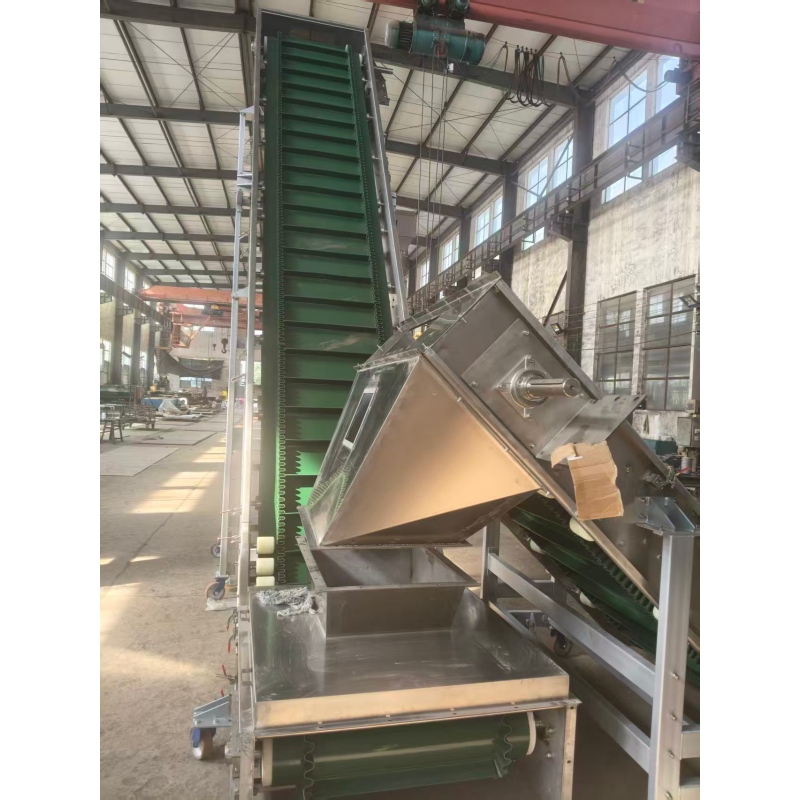

| Moving Mode | Fixed support feet / Movable with universal casters | The model in the figure is equipped with adjustable fixed support feet |
Conveying Capacity Reference for Different Materials (Belt Speed: 1.2 m/s) |
||||
| Material Type | Bulk Density | Capacity of 400mm Belt Width (t/h) | Capacity of 500mm Belt Width (t/h) | Applicable Industry |
| Grain / Granular Food / Nuts | 0.6~0.8 t/m³ | 1.5~3 | 3~5 | Food processing, baking |
| Plastic Pellets / Fine Chemical Granules | 0.9~1.1 t/m³ | 2~4 | 4~7 | Plastics, chemical batching |
| Powder Materials (Flour, Powder Additives) | 0.5~0.7 t/m³ | 1~2.5 | 2~4 | Dust-free powder feeding |
| Small Herbal Pieces / Agricultural By-products | 0.7~1.0 t/m³ | 1.8~3.5 | 3~6 | Herbal medicine, agricultural products |
The Large Angle Belt Conveyor can be customized.
All you need to do is provide the working conditions (Industry scenario, transported materials, total height of the elevator, tonnage per hour), or provide your drawings and parameters, and send them to our email: [email protected].
We will reply to you within 24 hours.
