Plastic Elevator Buckets

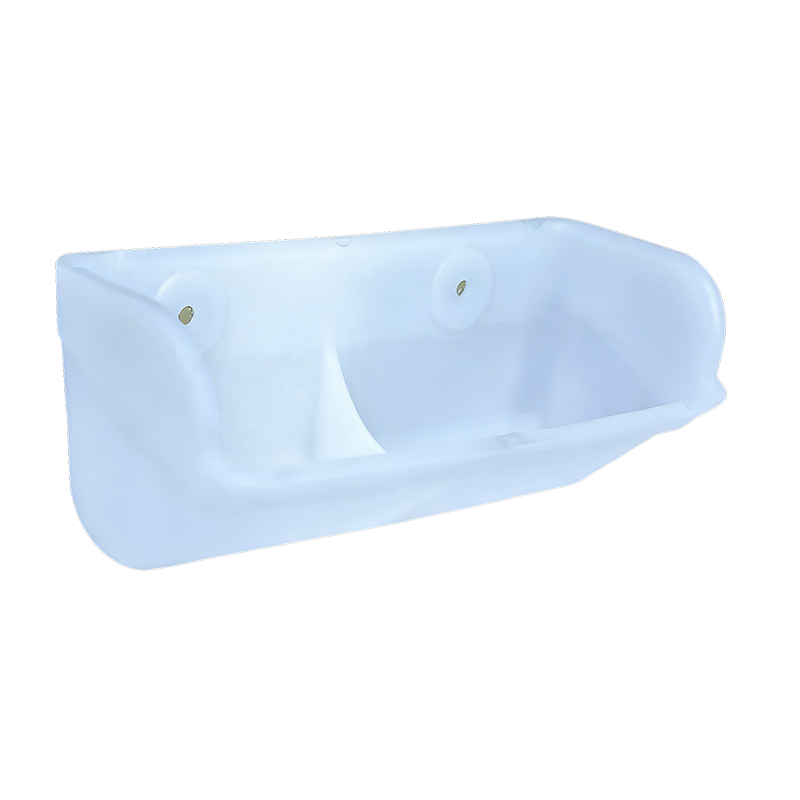

DH Dryer Bucket (for Rice Mill Low-Temp)

DH type dryer rice mill grain mill bucket is initially from KANEKO agricultural grain drier in Japan and SUNCUE GRAINER DRYER in Taiwan.
DH type bucket is designed for low-temperature drying applications, for the materials of paddy, wheat, maize, bean, corn, sunflower seed, rapeseed, sorghum, seeds, pulses, cocoa or coffee and other grains.

Material	HDPE, Nylon, PU

Get a Quote

Fast Delivery

Custom Orders

Expert Support

Details

Product Information

DH type dryer rice mill grain mill bucket, the same as DX low damage dryer elevator bucket, there are initially from KANEKO agricultural grain drier in Japan, and SUNCUE GRAINER DRYER in Taiwan.

DH bucket is used for low-temperature drying applications for paddy, wheat, maize, bean, corn, sunflower seed, rapeseed, sorghum, seeds, pulses, cocoa or coffee and other grains.

There is another DX bucket, it is a high-temperature drier application. It is also used for the same materials.

Use advice

It is used for high-speed centrifugal style material lifting style;
Recommend “(Z-Y)+10%” capacity as the use capacity for your engineer design;
Below the table, the size is for HDPE material. Because of the differences in the material shrinkage; Nylon and PU elevator bucket size is approximately more than 2%;

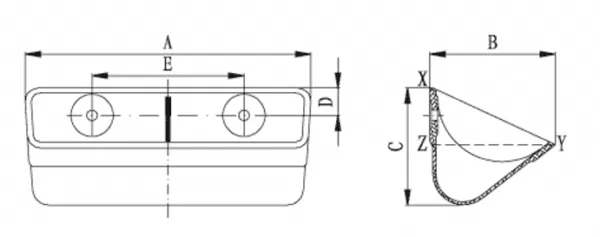

Model	Bucket Dimension(mm)			Mounting Holes(mm)				Capacity(L)
Model	Length A	Proj. B	Depth C	From Top D	Hole Centres E	No. of Holes	Hole diameter	Total Level (X-Y)	Usable Level (Z-Y)+10%	Water Level (Z-Y)
DH1106	116	62	62	13	63	2	7	0.17	0.11	0.1
DH1406	143	64	71	19	76	2	7	0.22	0.18	0.16
DH1409	147	94	87	20	96.5	2	7	0.42	0.21	0.19
DH1808	189	83	79	20	100	2	7	0.53	0.37	0.34
DH1909	198	95	89	20	100	2	7	0.85	0.63	0.57
DH1910	197	100	87	17	65	2	7	0.74	0.34	0.31
DH2010	196	102	94	18.5	100	2	7	0.91	0.66	0.6
DH2512	255	123	116	30	140	2	9	1.4	1.1	1
Note: Installation holes and hole diameter can be customized.
