Plastic Elevator Buckets

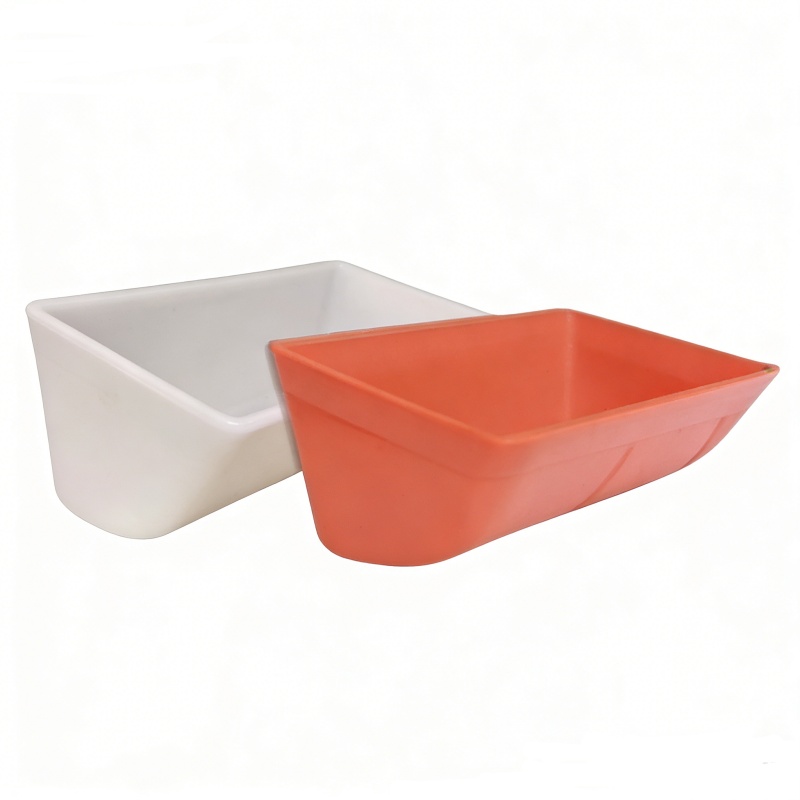

S bucket (Shallow Bottom in INCH)

It is an uncommon use elevator bucket in the material handling industry.
S15X8, S16X8 and S18x8 are available. Other models, could be developed in a certain quantity.

Material	HDPE, Nylon, PU

Get a Quote

Fast Delivery

Custom Orders

Expert Support

Details

Product Information

S elevator bucket is a kind of uncommon bucket, even you can find the full model number in the below table. Actually, we only have three elevator buckets model size.

That are S14X8, S16X8 and S18x8. We would like to make the new mould if our clients have enough quantity demand.

This type of bucket could be revised from the D bucket if needed.

It is also used for agricultural applications like grain, feed, seed, etc.

Use of advice:

Suitable for gravity discharge and mixed discharge

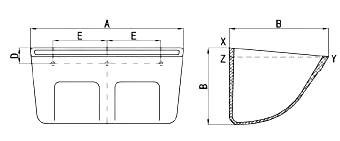

A, B, and C sizes are shown in the below table for HDPE material bucket size. Nylon and PU bucket sizes will increase by about 2%
Recommend using “(Z-Y)+5% as the usable capacity for engineering design.

Model	Bucket Dimension(mm)			Mounting Holes(mm)				Capacity(L)
Model	Length A	Proj. B	Depth C	From Top D	Hole Centres E	No. of Holes	Hole diameter	Usable Level (Z-Y)+10%	Water Level (Z-Y)
S5X4	133	114	82.3	28.575	80.96	2	7	0.65	0.59
S6X4	159	114	89	28.575	111.13	2	7	0.8	0.72
S7X4	184	114	89	28.575	66.69	3	7	0.93	0.84
S6X5	162	143	102	41.275	111.12	2	7	1.21	1.1
S7X5	187	143	102	41.275	66.68	3	7	1.44	1.31
S8X5	213	143	102	41.275	77.79	3	7	1.86	1.69
S9X5	238	143	102	41.275	88.9	3	7	1.94	1.76
S10X5	260	143	114	41.275	101.6	3	7	2.19	1.99
S11X5	286	143	114	41.275	79.38	4	7	2.54	2.31
S12X5	311	143	114	41.275	85.73	4	7	2.88	2.62
S8X6	213	168	127	41.275	77.79	3	7	2.45	2.22
S9X6	238	168	127	41.275	88.9	3	7	2.71	2.46
S10X6	264	168	127	41.275	101.6	3	7	3.08	2.8
S11X6	289	168	127	41.275	76.2	4	7	3.34	3.04
S12X6	314	168	127	41.275	85.73	4	7	3.61	3.29
S13X6	340	168	127	41.275	92.08	4	7	3.98	3.62
S10X7	267	197	152	47.625	101.6	3	9	4.35	3.95
S11X7	292	197	152	47.625	76.2	4	9	4.86	4.42
S12X7	318	197	152	47.625	85.73	4	9	5.28	4.8
S13X7	343	197	152	47.625	92.08	4	9	6.21	5.64
S14X7	368	197	152	47.625	76.2	5	9	6.43	5.84
S15X7	394	197	152	47.625	82.55	5	9	6.85	6.22
S16X7	419	197	152	47.625	88.9	5	9	7.33	6.66
S10X8	267	222	152	50.8	104.78	3	9	5.93	5.39
S11X8	292	222	172	50.8	79.38	4	9	6.46	5.87
S12X8	318	222	172	50.8	85.73	4	9	7.05	6.41
S14X8	365	223	173	50.8	76.2	5	9	8.39	7.63
S15X8	394	222	172	50.8	82.55	5	9	9.22	8.39
S16X8	416	225	172	50.8	89	5	9	9.8	8.91
S18X8	470	223	170	50.8	79.38	6	9	11.01	10.01
Note: Fitting holes and hole diameter can be customised.
