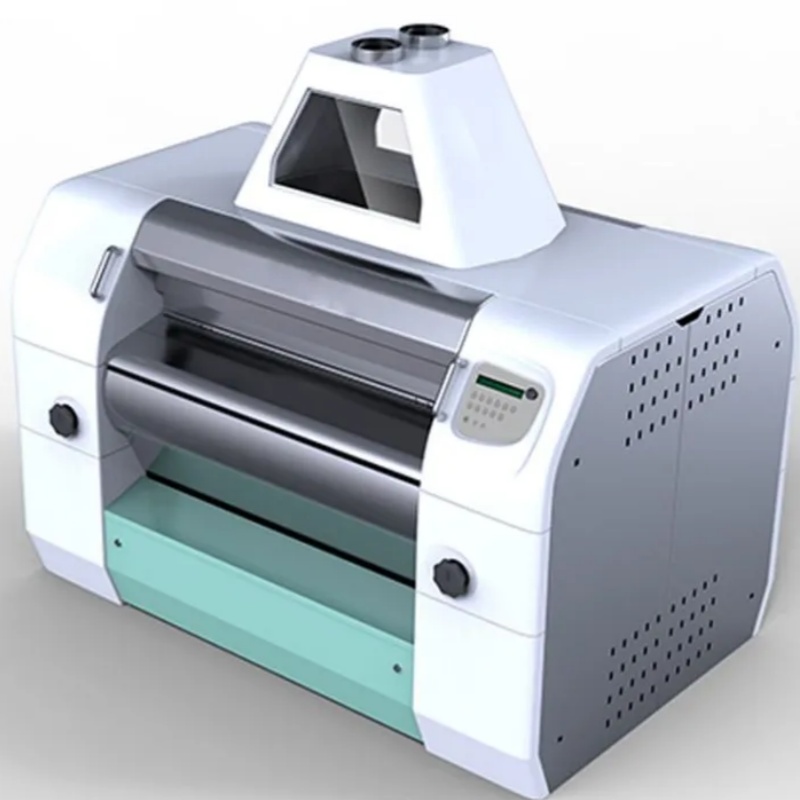

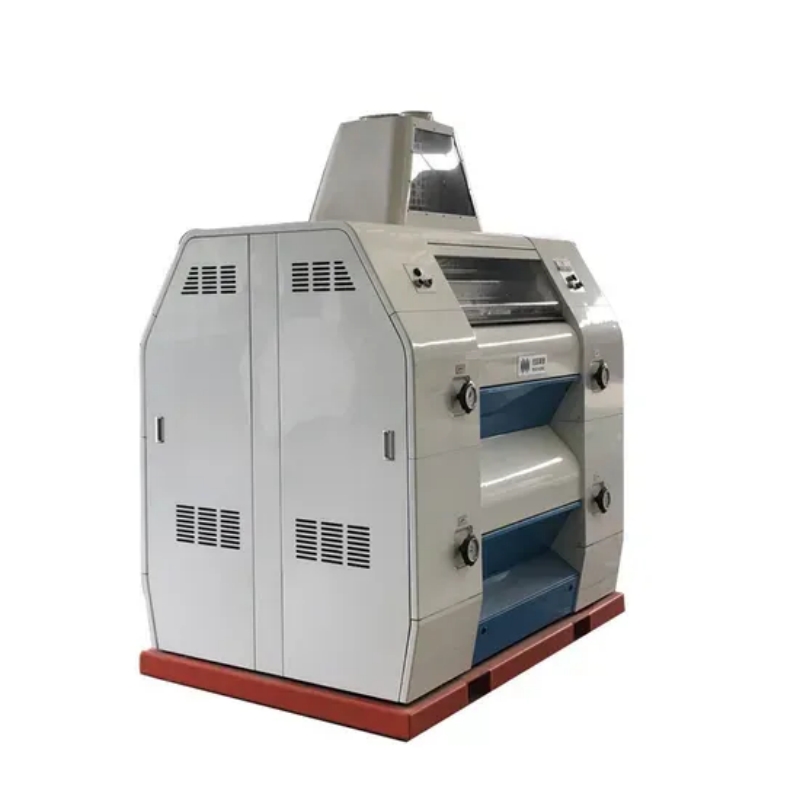

Flour Roller Mill
Flour Roller Mill is the main equipment for milling section in flour mills. The wheat is stripped mainly by a pair of grinding rollers with speed difference and relative rotation and ground into flour when endosperm is peeled off from wheat bran.
Fast Delivery
Custom Orders
Expert Support
Details
Product Information
Technical Specifications
| Parameter | Standard Model | Advanced Model |
|---|---|---|
| Capacity | 10-200 T/24h | 50-500 T/24h |
| Power Consumption | 4.8-6.5 kWh/ton flour | 3.9-5.2 kWh/ton (AI-optimized) |
| Roll Dimensions | Ø250×1000 mm | Ø300×1500 mm |
| Roll Speed | 450-650 rpm | VFD-controlled: 200-800 rpm |
| Grinding Stages | 4-8 passes | 12-pass modular design |
| Flour Extraction Rate | 75-78% (wheat) | 78-82% (patented process) |
| Footprint | 3.2m × 1.8m × 2.5m | 4.5m × 2.2m × 3.1m |
